9.4 Battery Wiring – Trailer Kit
For 24V wiring reference document 90-1117-008.
Charging Circuit Breaker
Auto Reset
Starter
Solenoid
Motor 1
Ground to Trailer
Side Rail
Master Shut Off
Switch

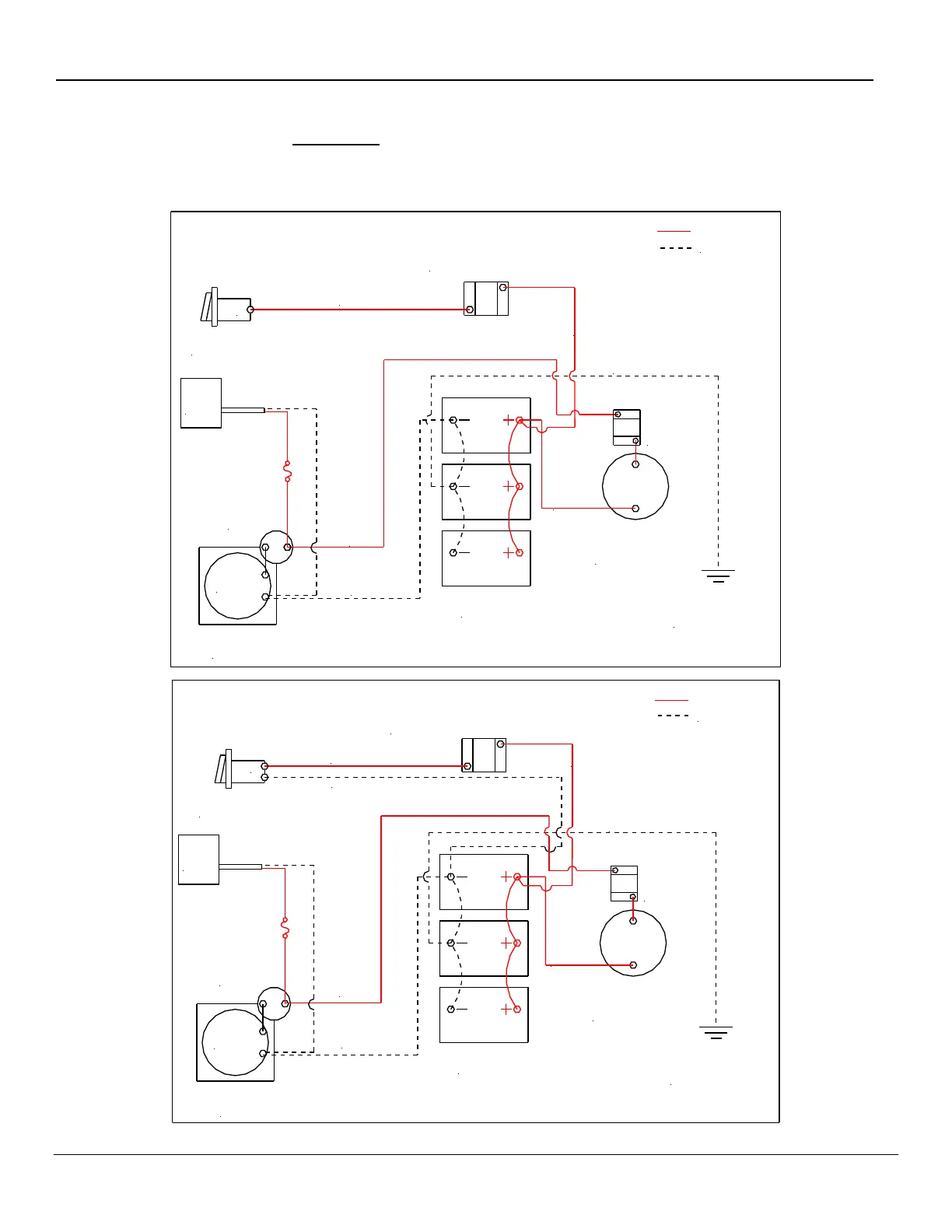

12V Trailer Kit - Single Pump - Single Pole - Aux Battery
40 ft
36"
11"
74"
Charging Circuit Breaker
Auto Reset
Starter
Solenoid
Motor 1
Auxiliary
Batteries
Ground to Trailer
Side Rail
Master Shut Off
Switch
12V Trailer Kit - Single Pump - Dual Pole - Aux Battery
36"
11"
74"
40 FT
Trailer Socket
Single Pole
Trailer Socket
Dual Pole
Positive (+)
Ground (-)
Positive (+)
Ground (-)
+
-
+
Auxiliary
Batteries
42"
Motor
Circuit
Breakers
Flag Reset
11"
42"
Motor
Circuit
Breakers
Flag Reset
40 FT
11"
Control
Board
Control
Board
