In manual or automatic mode the drive unit is fully controlled from the local screen. Transfer to
locked mode of operation happens upon detaching of the plug from connector ALLEGRO I/O.
After detaching the plug from the control panel, the appropriate cable and plug (for example, from
the Pall MVP system) should be connected to allow for locked/remote operation. For modes of
operation other than locked mode, keep the plug inserted and tightened.

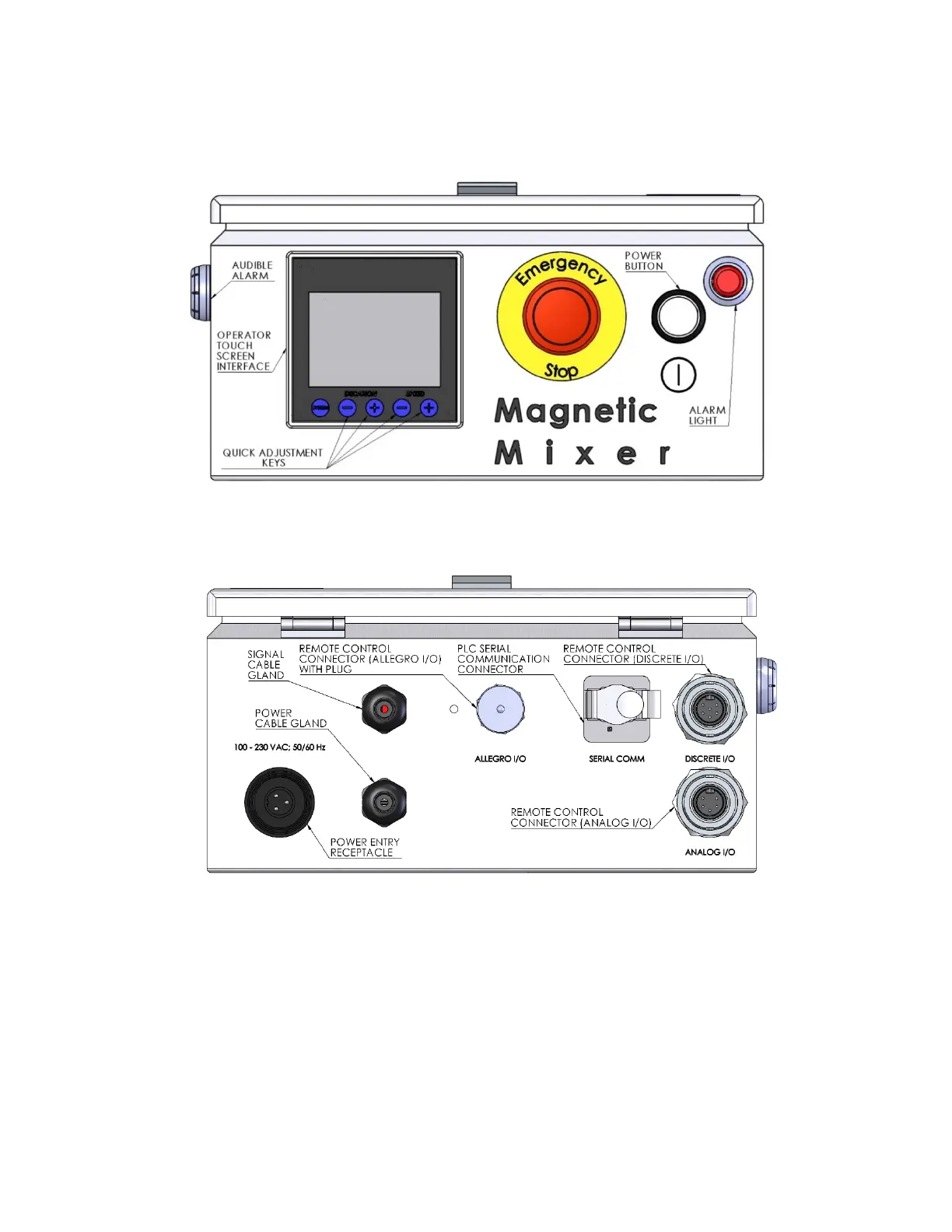

Figure 6: Control panel top
Figure 7: Control panel bottom
When the drive unit is powered on, it is immediately ready for mixing.
IMPORTANT! In case of emergency the operator can stop rotation of the motor by pressing the
emergency stop (e-stop) button on the control panel. This can be done during any mode of
operation. Doing so halts the rotation of the motor and activates the system failure mode while
leaving other functions of the drive unit in operation. To reset alarm, release the e-stop button by
pulling it up until it clicks, and then acknowledge the alarm on the touch screen.
For details of operation, see Section 9 Operator Control Interface guide.

Pall Allegro MMG403 Specifications

General

Brand	Pall
Model	Allegro MMG403
Category	Laboratory Equipment
Language	English
