To set the rails for the off center port position set the right and left adjusters so that the side with
words ‘OFF-CENTER’ is visible on both; see Figure 11. Ensure that the two dot marks on the
right adjuster are located next to the two dot marks on the rail and single dot mark of the left
adjuster is located next to the single dot mark on the left rail. Secure the adjusters with the
screws provided.

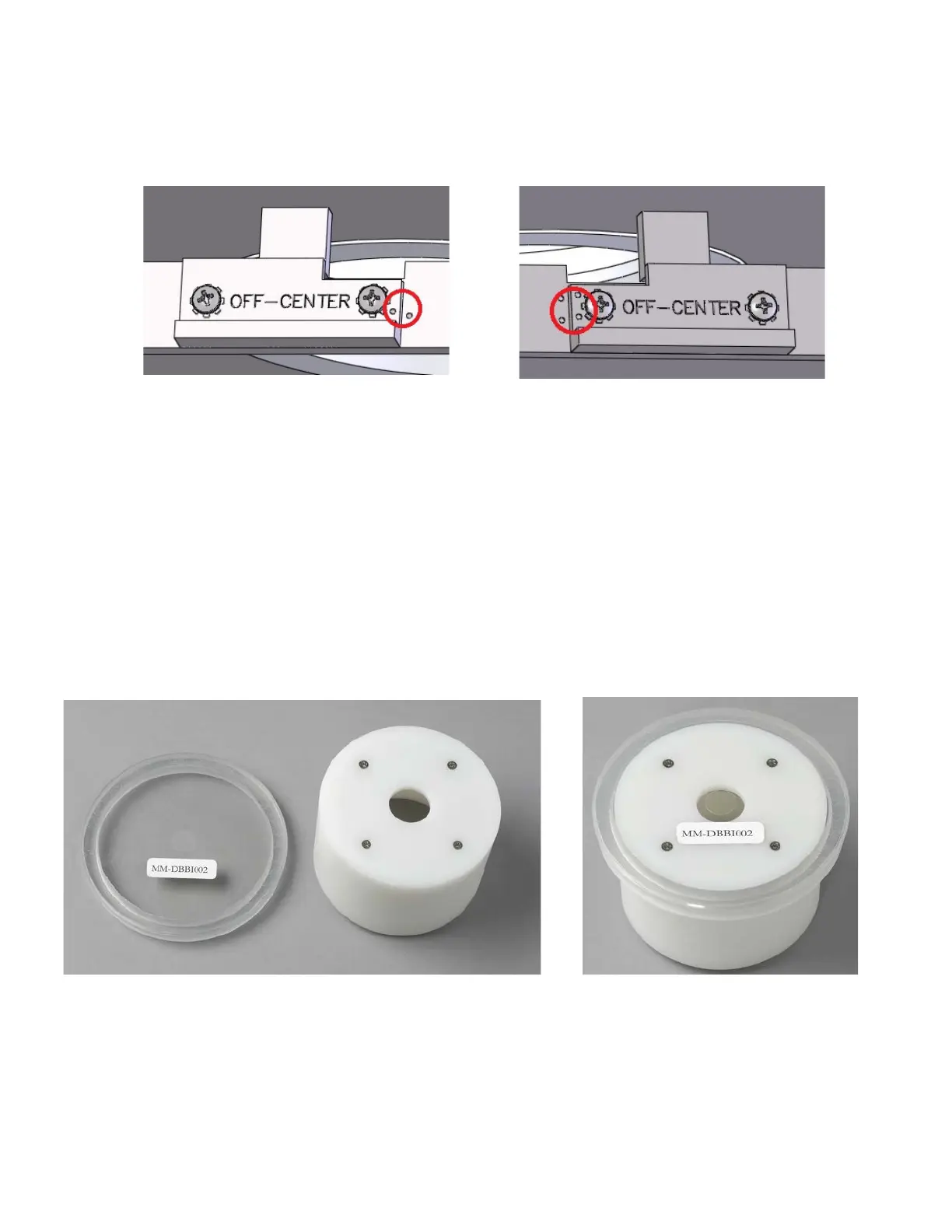

Figure 11: Rail adjustments for off-center position (left and right)
7. Allegro Mixing Biocontainer Installation
The below procedure describes the basics of installing an Allegro mixing biocontainer in a tank.
For more detailed instructions, please refer to the instructions delivered with the stainless steel
tanks.
1. Locate the magnetic clamp and centering aligner (Figure 12). These parts are required for
proper Allegro mixing biocontainer installation and alignment. Inspect the centering aligner
for damage; if the center hole is deformed, torn or not concentric, discard and replace with
an undamaged centering aligner.
Assemble the clamp and aligner as shown in Figure 13.
Figure 12 & 13: Centering aligner (left) and magnetic clamp (right) so they look like the picture on the right
