6.2. Changing Dolly Configuration Between Center and Off-Center Impeller Port
Determine which port configuration is required: central port (tanks sizes: 30 – 350 L tanks)
or off-center port (500 L tanks). Each rail of the dual port has an adjuster attached to the
rail with two screws. The right adjuster is marked with two dots and the left adjuster is
marked with one dot. The right and left rails of the port are also marked with two and one
dot respectively, see images below. Right adjuster should always be used with the right
rail and the left adjuster with the left rail.

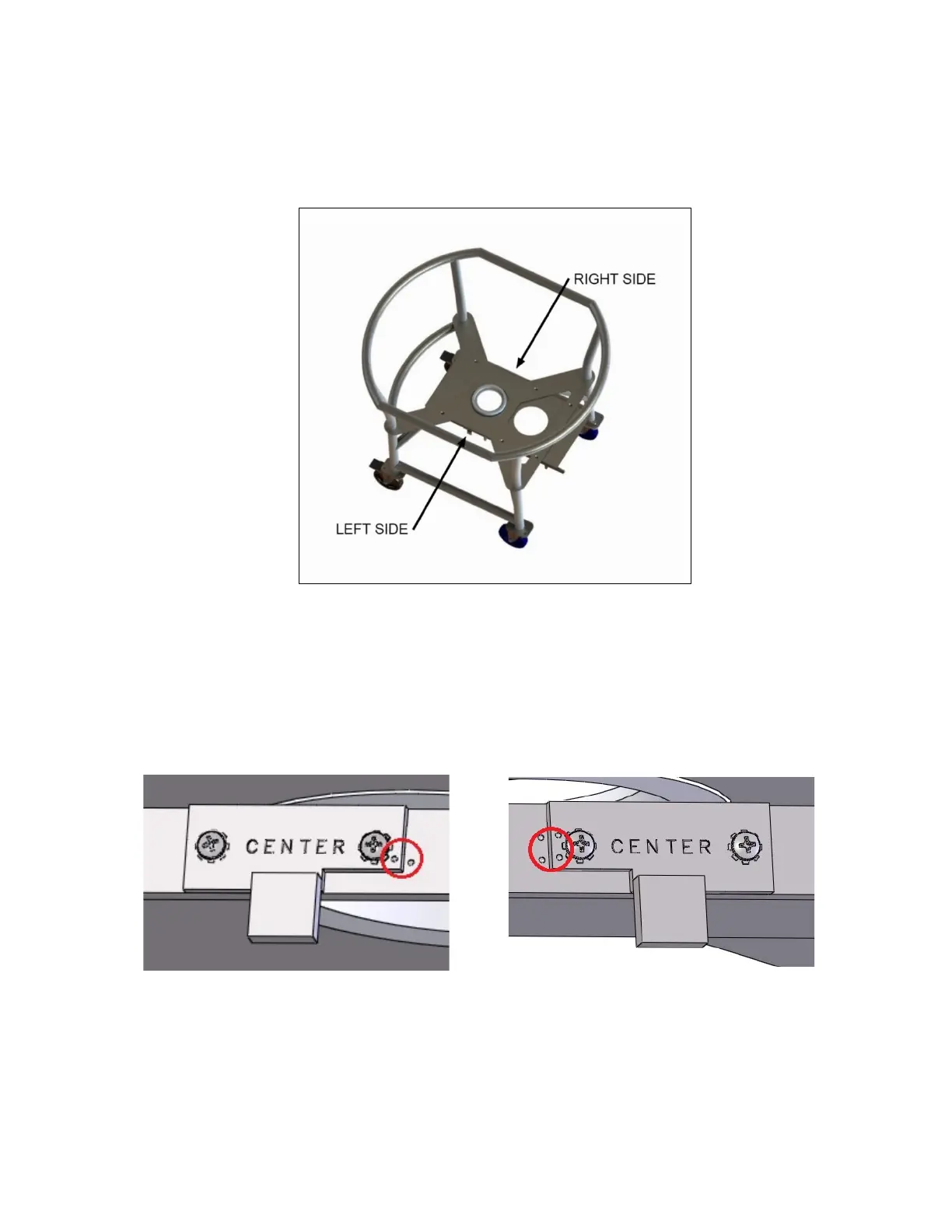

Figure 9: Rail port orientation – showing left side vs. right
To set the rails for the central port position, set the right and left adjusters so that the side with word
‘CENTER’ is visible on both; see Figure 10. Ensure that the two dot marks on the right adjuster are
located next to the two dot marks on the rail and single dot mark of the left adjuster is located next to
the single dot mark on the left rail. Secure the adjusters with the screws provided.
Figure 10: Rail adjustments for central position (left and right side)
