5.5 Fitting the Tubing Holders on the iCELLis 500+ Control System
The tubing holders are packed in the crate for accessories and documentation. The content of tubing
holder pack is described in Table 4 below.
Table 4: Tubing holders pack items and description (The item number is used in Figure 11)
Item number
Description
Quantity
1
Seal washer – M16
4
2
Left tube holding channel - 2
1
3
Left tube holding channel assembly
1
4
Hex drive button head screwed in 7380
Stainless steel A2 M16 x 30 mm
4
5
Right tube holding channel assembly
1
6
Right tube holding channel - 2
1
Unpack the tubing holders and install all items on the iCELLis 500+ control system following
below drawing.

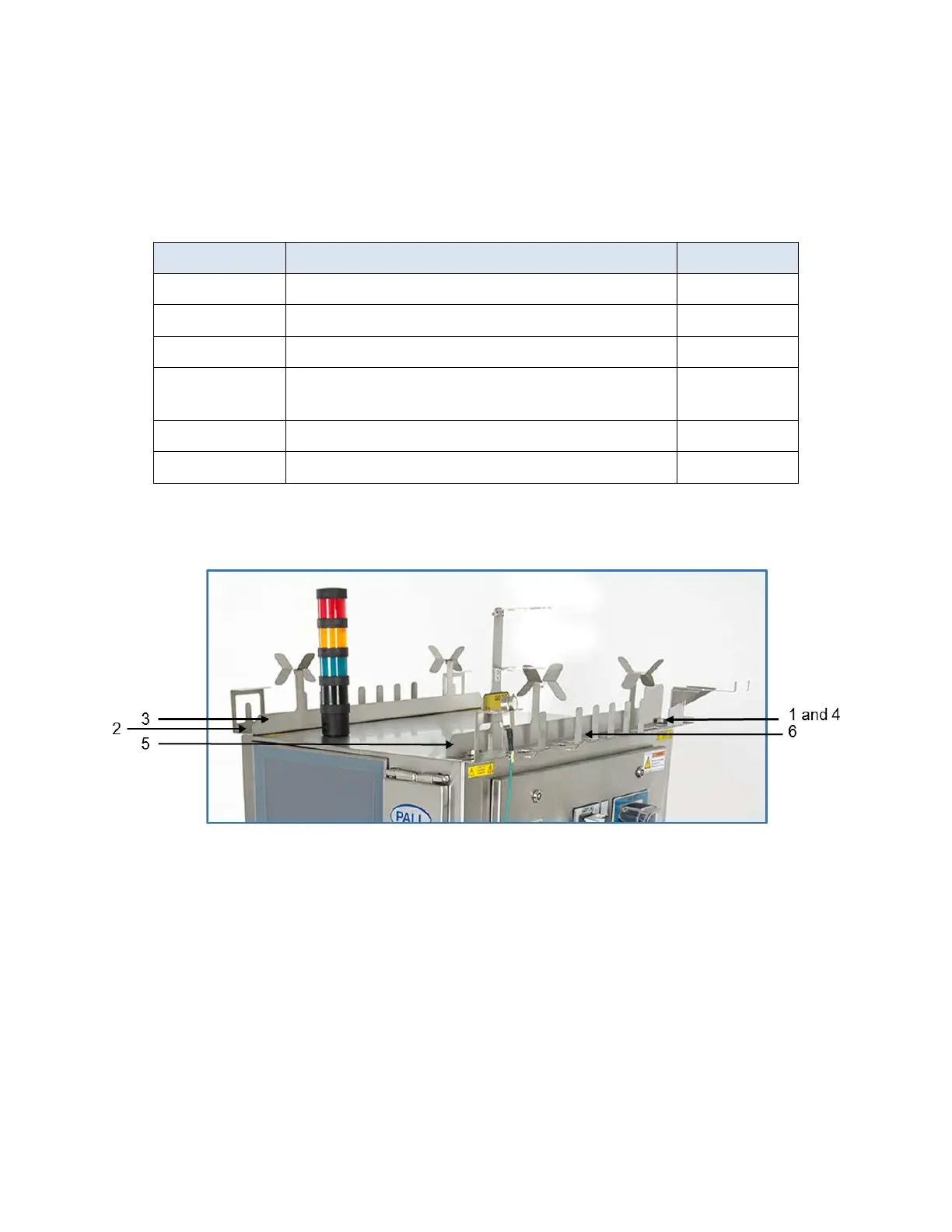

Figure 11: Assembly position of tubing holders items on iCELLis 500+ control system
(the item number corresponds to Table 4)
