Pall iCELLis 500+ - Connecting the Bag Pre-Heater

Page 30 of 48

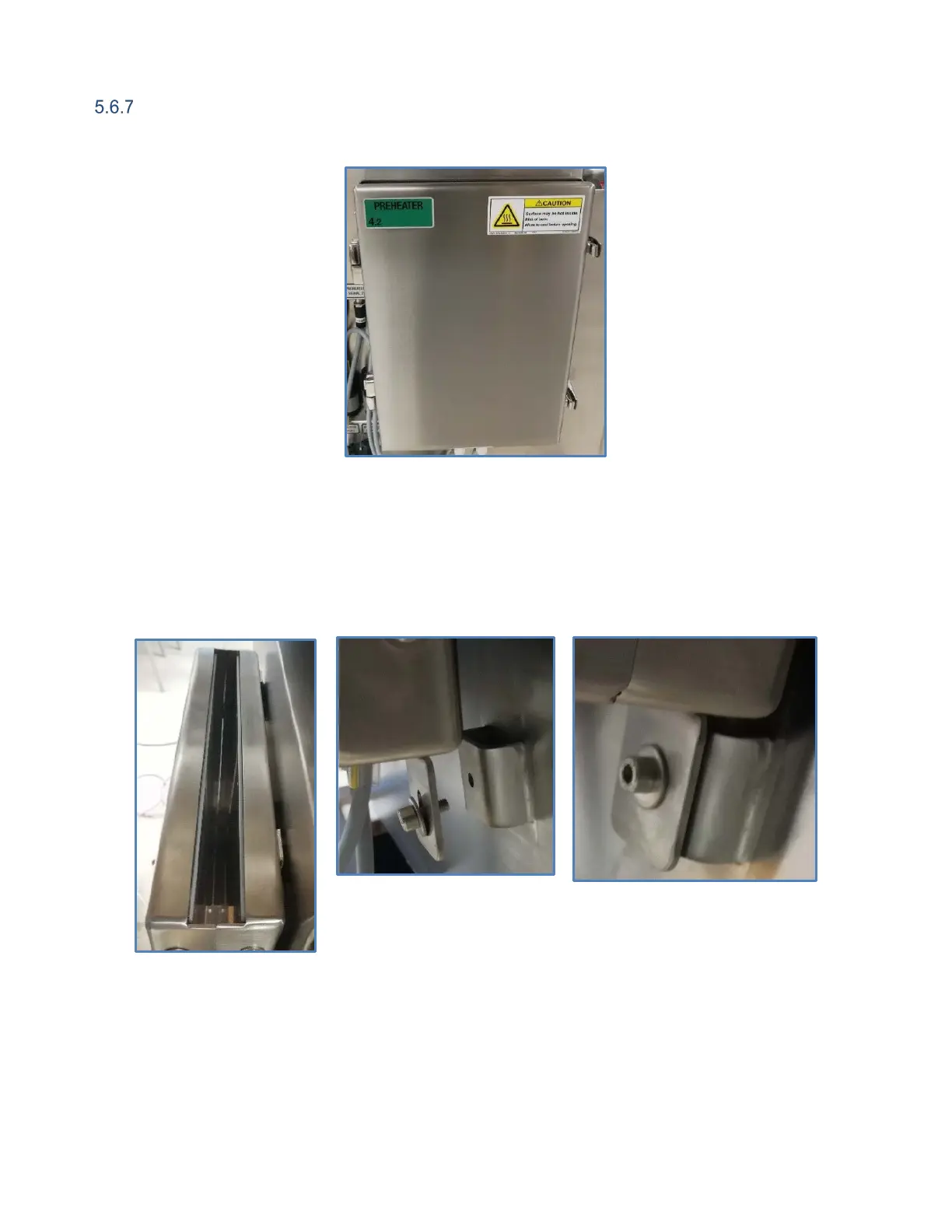

Connecting the Media Bag Pre-Heater
The media bag pre-heater (Figure 22) is packed in the crate of the accessories and documentation.
Figure 22: Bag Pre-Heater
First hook the upper back part of the media bag pre-heater into the support on the left side of the
iCELLis 500+ control system (Figure 23a). After hooking the upper part of the bag pre-heater, install the
metric hex screws with a metric hex key of 5 mm, locking the bottom part of the bag pre-heater on the
iCELLis 500+ control system (Figure 23b-c).
a)
b)
c)
Figure 23. Placing the bag pre-heater – a) Hooking the upper part of the bag pre-heater,
b & c) Bolting the bottom part of the bag pre-heater.
Connect the cable with label ‘C150/6’ to the connector labeled ‘C150/6’ located to the left of the bag
pre-heater (Figure 24a). Secure the connector by turning the metallic part of the connector clockwise.
