5.6 Fitting Communication and Sensor Cables to the iCELLis 500+ Control System
ALERT! Risk of damage to equipment!
All cables should be hand-tightened (no tools).
Connecting the Double Jacket Pressure Sensor Cable:
The double jacket pressure sensor cable is packed in the crate of the accessories and documentation.

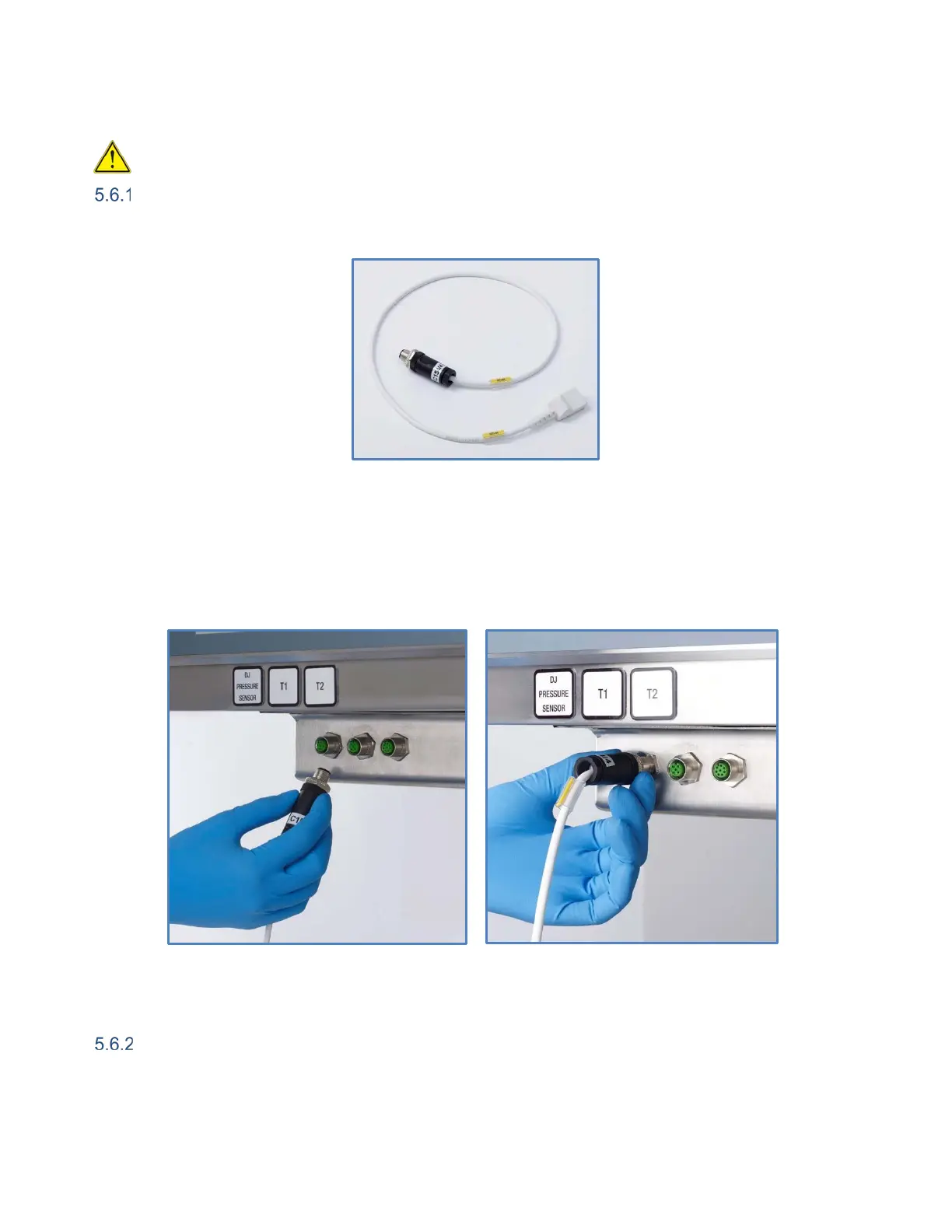

Figure 12: Double jacket pressure sensor cable
Connect the cable to the connector labeled ‘DJ PRESSURE SENSOR’ located on the front of the
iCELLis 500+ control system (Figure 13a). Secure the connector by turning the metallic part of the
connector (Figure 13b).
a)
b)
Figure 13: Double jacket pressure sensor cable connection – a) Cable of the
pressure sensor being connected, b) Secured connection.
Connecting the Bioreactor Pressure Sensor Cable:
The bioreactor pressure sensor cable is packed in the crate of the accessories and documentation.
