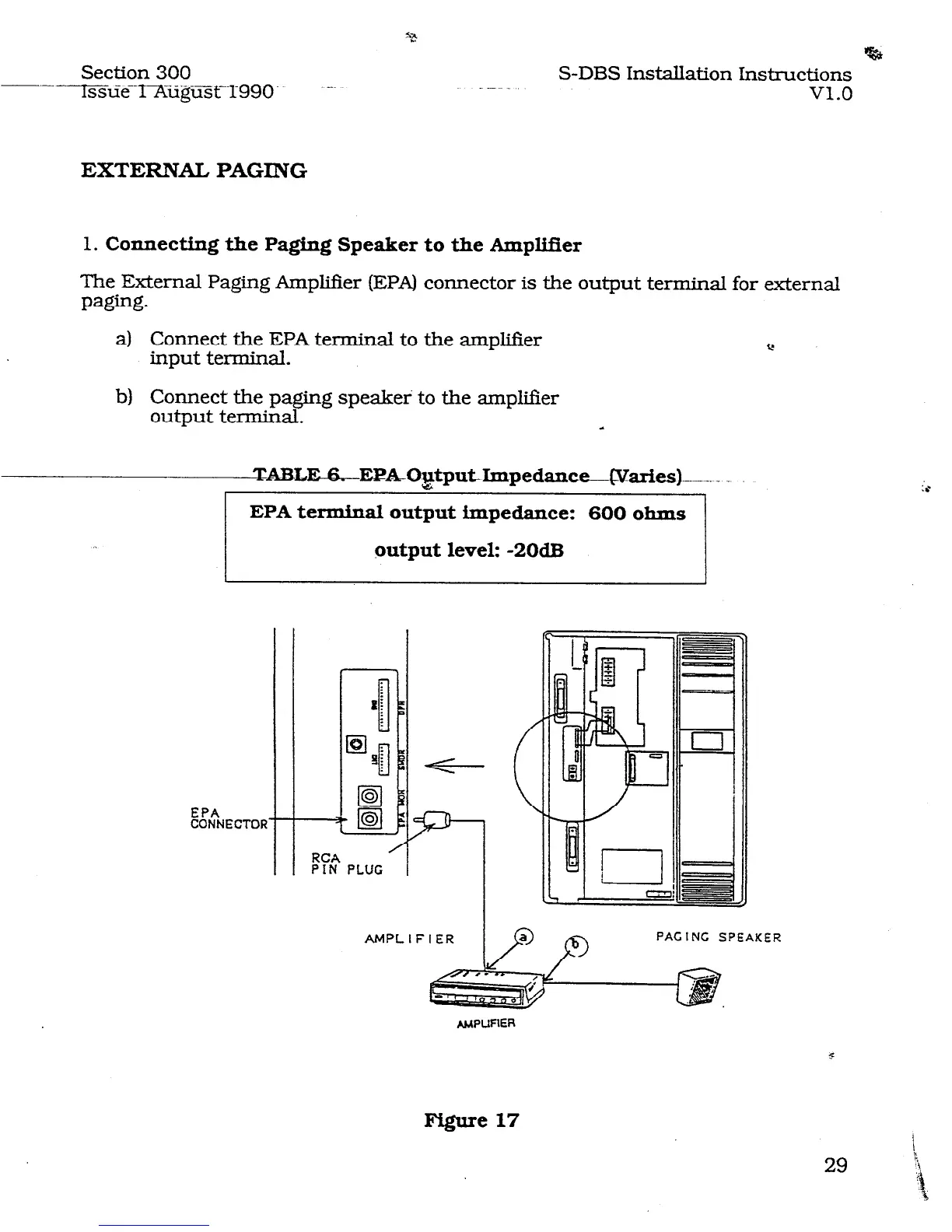

EXTERNAL PAGING
.-- _
%a
S-DBS InstaUation Instructions
v1.0
1. Connecting the Paging Speaker to the Amplifier
The External Paging Amplifier (EPA) connector is the output terminal for external
paging.
a) Connect the EPA terminal to the amplifier
input terminal.
Q
b) Connect the paging speaker to the amplifier
output terminal.
1
EPA terminal output impedance: 600 ohms
output level: -20dB
EPA
CONNECTOI;
RCA
/
PIN PLUG
I
AMPLIFIER
PACING SPEAKER
F
Figure 17
