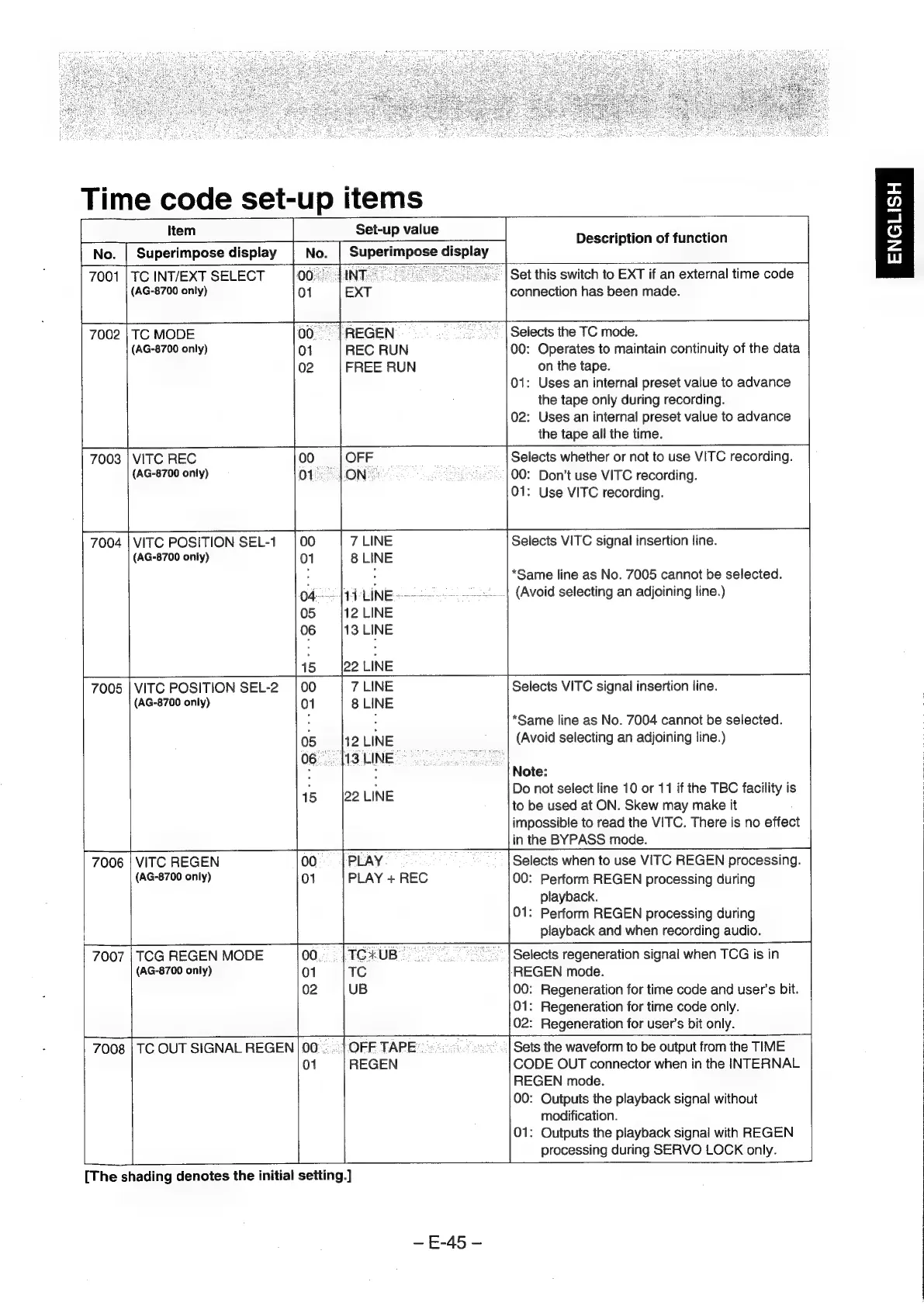

Time code set-up
items
Item
7001
t=
| No. Superimpose display
TC INT/EXT SELECT
(AG-8700 only)
7002
7003
7004
7005
7006
7007
eee ieee
on
TC MODE
(AG-8700 only)
Set-up value
ee INT=
VITC REC 00
(AG-8700 only) 01 ee 5
VITC POSITION SEL-1 | 00
(AG-8700 only) 01
04.-
05
06
15
VITC POSITION SEL-2 | 00
(AG-8700 only) 01
05
06.
15
VITC REGEN 00
(AG-8700 only) 01
(AG-8700 only)
TCG REGEN MODE 00... }
Superimpose display
EXT
“REGEN
REC RUN
FREE RUN
OFF
ON ®:
7 LINE
8 LINE
~ HA LINE-~—=—
12 LINE
13 LINE
22 LINE
7 LINE
8 LINE
12LINE
13 LINE
22 LINE
PLAY
PLAY + REC
7008
TC OUT SIGNAL REGEN |
Description of function
<-| Set this switch to EXT if an external time code
connection has been made.
Selects the TC mode.
00: Operates to maintain continuity of the data
on the tape.
01: Uses an internal preset value to advance
the tape only during recording.
02: Uses an internal preset value to advance
the tape all the time.
Selects whether or not to use VITC recording.
00: Don’t use VITC recording.
01: Use VITC recording.
Selects VITC signal insertion line.
*Same line as No. 7005 cannot be selected.
(Avoid selecting an adjoining line.)
Selects VITC signal insertion line.
*Same line as No. 7004 cannot be selected.
(Avoid selecting an adjoining line.)
Note:
Do not select line 10 or 11 if the TBC facility is
to be used at ON. Skew may make it
impossible to read the VITC. There is no effect
in the BYPASS mode.
Selects when to use VITC REGEN processing.
00: Perform REGEN processing during
playback.
01: Perform REGEN processing during
playback and when recording audio.
Selects regeneration signal when TCG is in
REGEN mode.
00: Regeneration for time code and user’s bit.
01: Regeneration for time code only.
02: Regeneration for user’s bit only.
| Sets the waveform to be output from the TIME
CODE OUT connector when in the INTERNAL
REGEN mode.
00: Outputs the playback signal without
modification.
01: Outputs the playback signal with REGEN
processing during SERVO LOCK only.
[The shading denotes the initial setting.]
~ E-45 -
