Panasonic AJ-D650 - Basic Operations; Unit Configurations and Editing

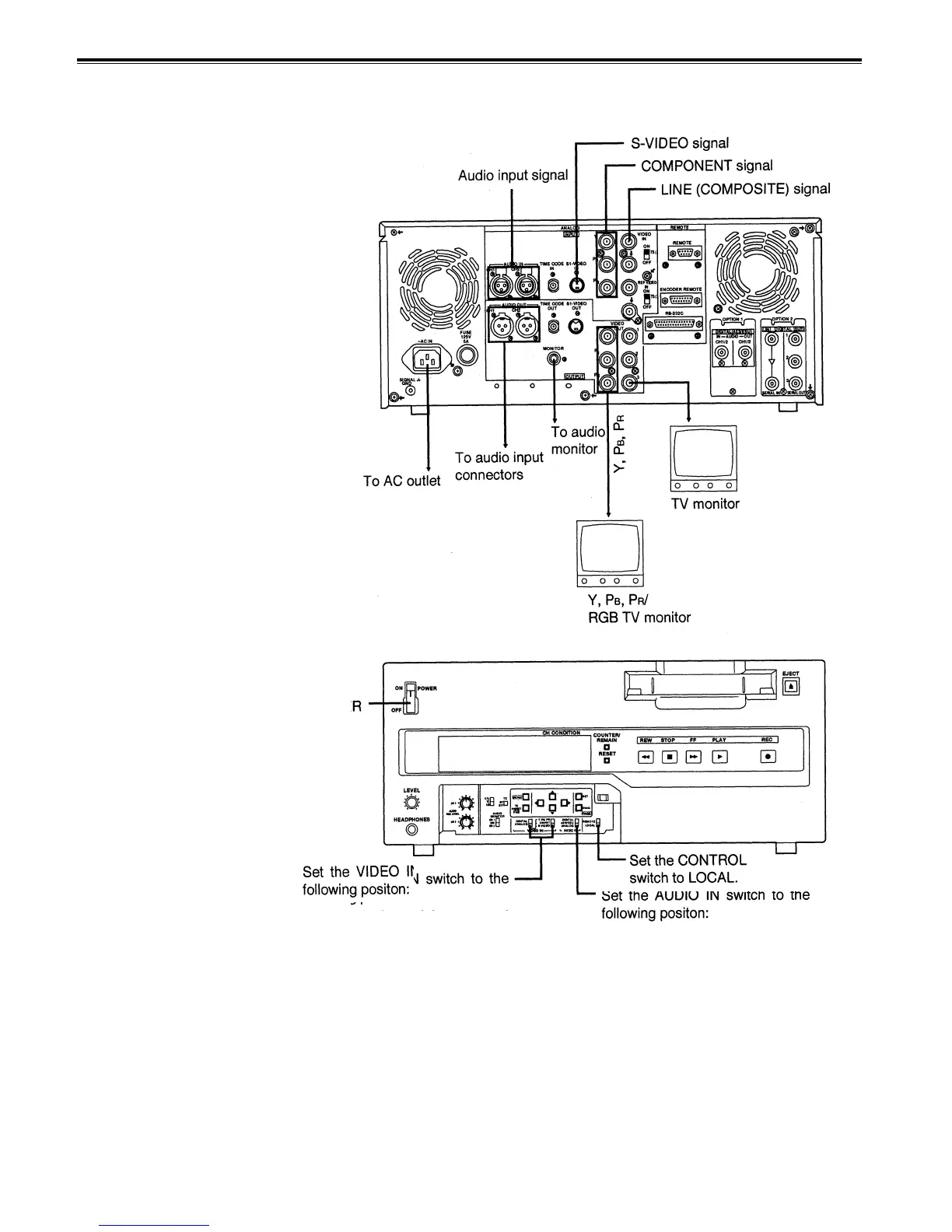

When recording/playback using 1 unit
Set the CONTROL switch on the front panel to LOCAL.
• “DIGITAL” for serial component
digital video signal input.
• Set the VIDEO IN to ANALOG
and select as following for the
analog input:
• “Y PB PR” for analog
component video signal input.
• “CMPST” for analog compo-
site video signal input.
• “S-VIDEO” for S-VIDEO signal
input.
–15–
• “ANALOG” for analog audio
• “DIGITAL” for serial component
digital audio signal input.
• “AES/EBU” for digital audio
signal input.
signal input.
