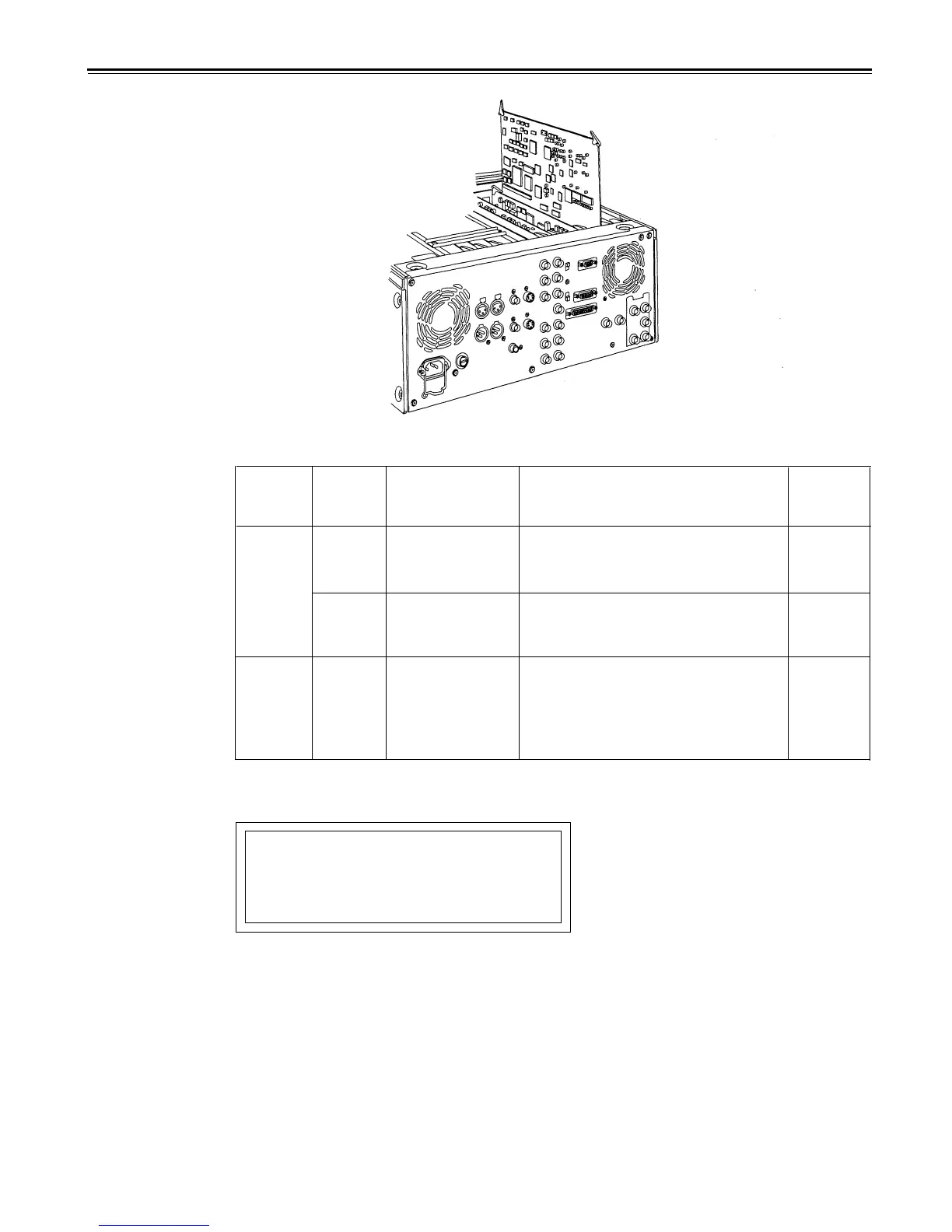

Panasonic AJ-D650 - Printed Circuit Board

Printed circuit board
Printed
circuit
Abbr.
name
Full name
Function
Factory
board
setting
F8 board SW1 Audio Input
This sets the CH1 audio input
ADDA-
Impedance SW
impedance.
HIGH
CUE
HlGH/600 Ω
SW61
Audio Input This sets the CH2 audio input
Impedance SW
impedance.
HIGH
HlGH/600
Ω
F4 board SW400
Component PB/PR This sets the component PB/PR
Output level output level when connecting with
selector the editor.
BETA
M ΙΙ
: M ΙΙ level
BETA :
β -CAM level
<Note>
Component PB/PR input levels are selected at No. 600 in the setup menu.
CAUTION:
TO REDUCE THE RISK OF FIRE OF SHOCK
HAZARD, REFER CHANGE OF SWITCH
SETTING lNSlDE THE UNIT TO AUTHORIZED
SERVICE PERSONNEL.
–20–
