Panasonic AJ-D650 - When Recording, Playback and Editing with 2 Units

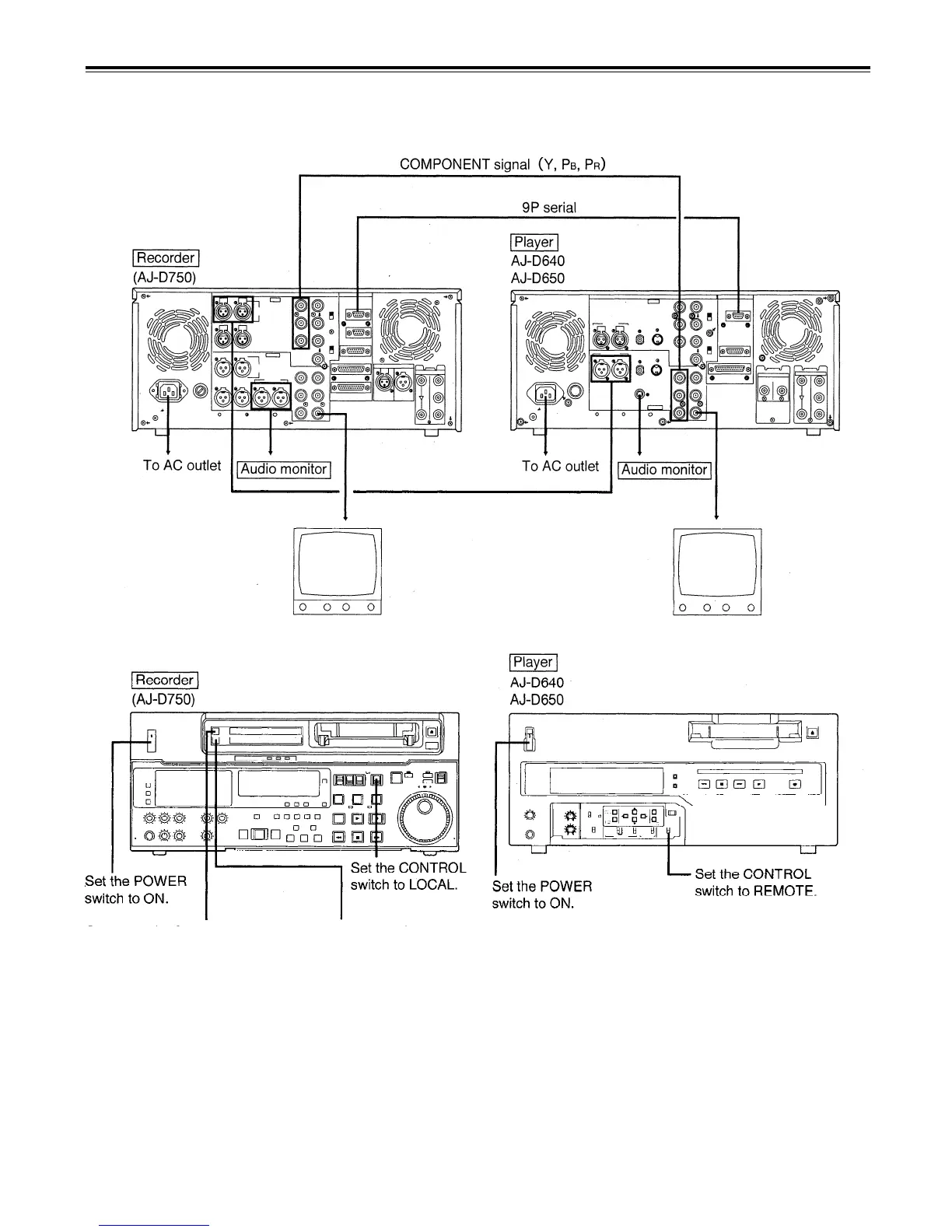

When recording, playback & editing with 2 units (deck to deck)
The CONTROL switch on the recorder must be set to the LOCAL position, and the CONTROL switch on the
player must be set to the REMOTE position.
Set the VIDEO IN switch to the
following position:
• “SERIAL I/F” for serial compo-
nent digital video signal input.*
• “Y PB PR” for analog compo-
nent video signal input.
• “CMPST” for analog composite
video signal input.
Set the AUDIO IN switch to the
following position:
• “SERIAL l/F” for serial compo-
nent digital audio signal input.
• “AES/EBU” for digital audio
signal input.
• “ANALOG” for analog audio
signal input.
–16–
