Servo reference
This unit automatically selects the input video signal selected by the INPUT switch, the
reference video signal supplied from the REF VIDEO input connector or the internal sync
signal as the servo reference signal.

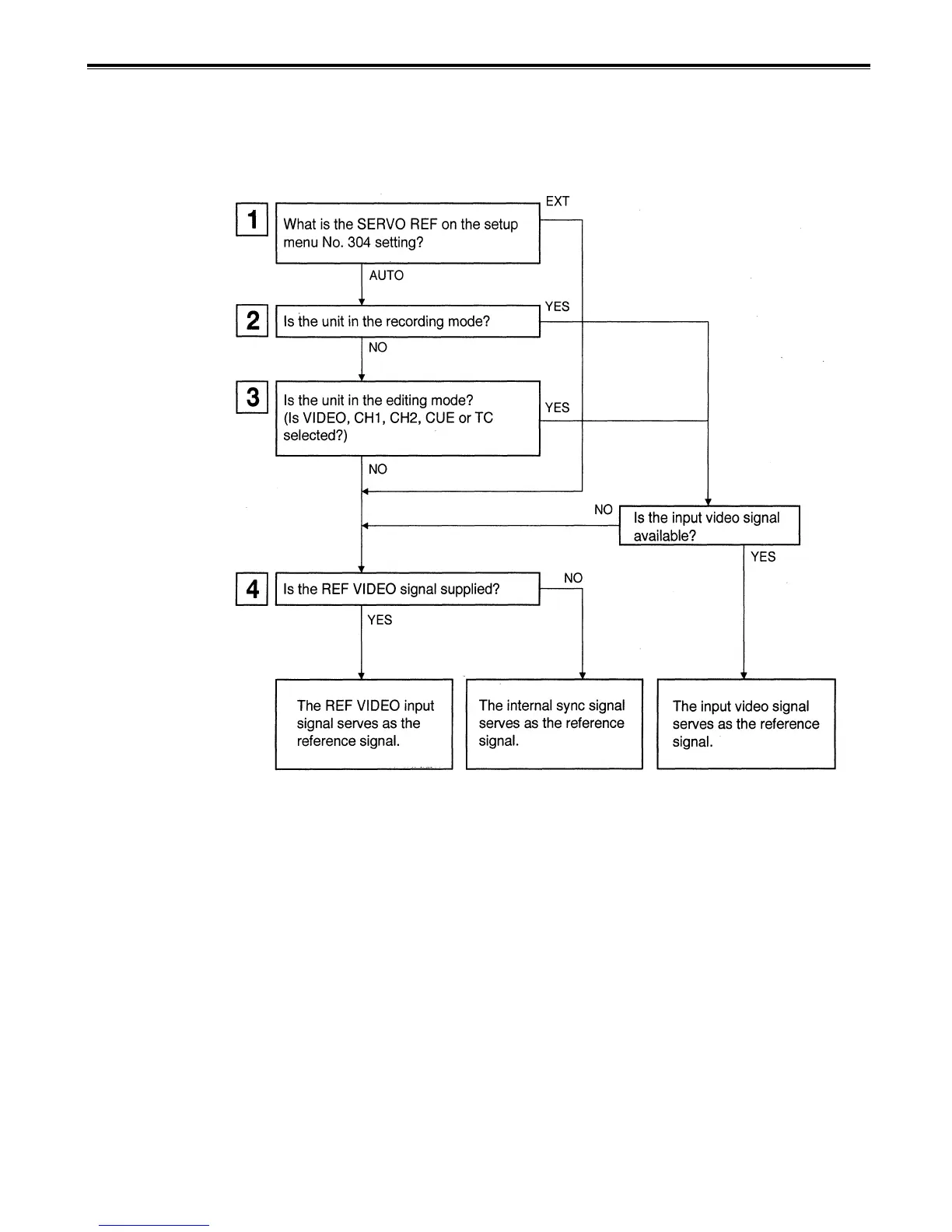

When the signal is selected, the unit’s mode and servo reference stand in the relationship
shown in the flowchart presented below.
–42–
