Reference

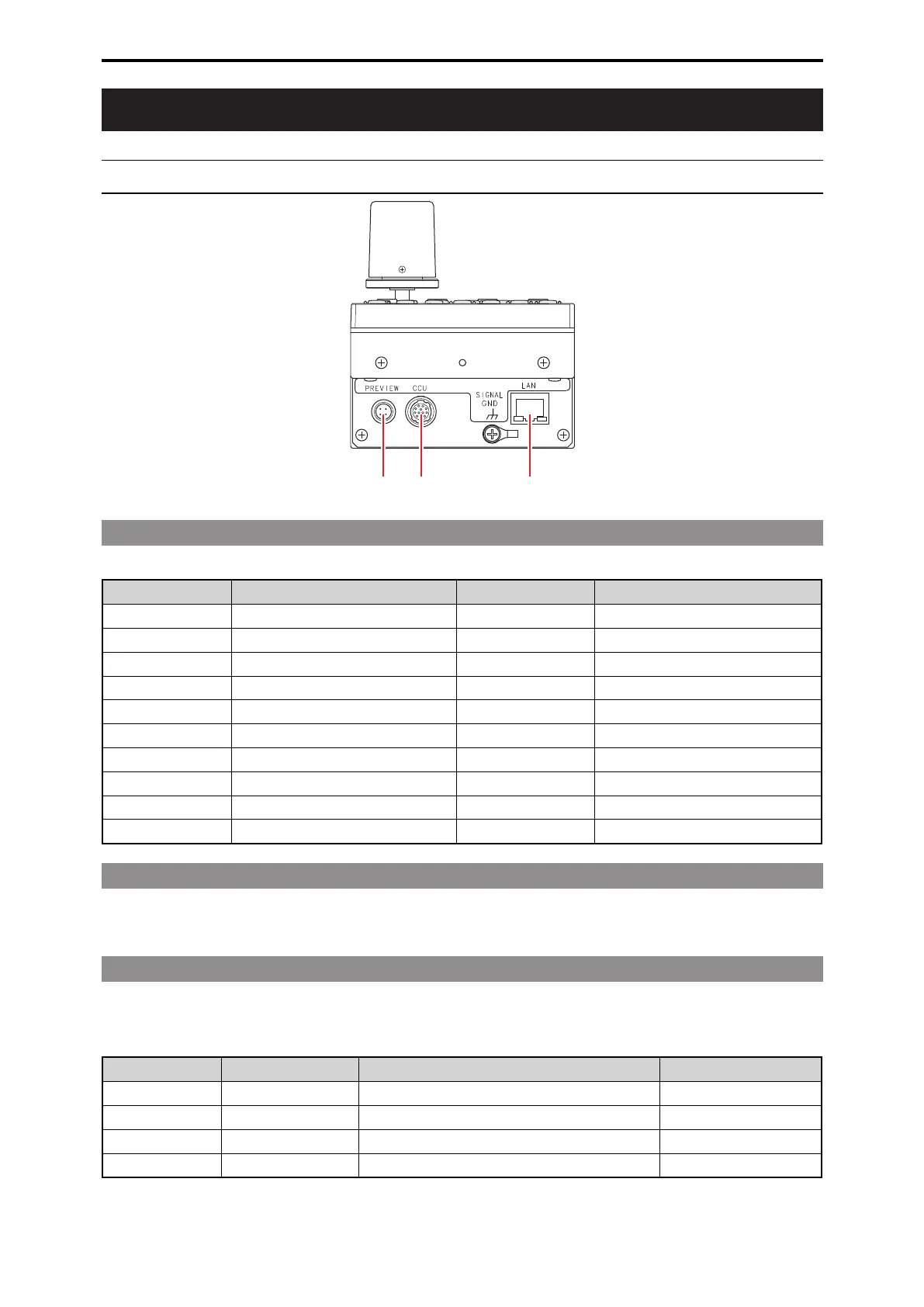

Connector pin assignment table
1 23
1 <CCU> connector
(Hirose Electric: HR10A-10R-10P (71))
Pin No. Function Polarity Flow of signal
1 CAM DATA (H) + CAM→ROP
2 CAM DATA (L) - CAM→ROP
3 CAM CONT (H) + ROP→CAM
4 CAM CONT (L) - ROP→CAM
5 CAM No.A
6 CAM No.B
7 CAM No.C
8 CAM No.D
9 12 V
10 GND
2 <LAN> connector
Complies with 100base-TX.
Allowing connection to a network device that supports the PoE standard (IEEE802.3af compliant).
3 <PREVIEW> connector
(Hirose Electric: HR10A-7R-4PC(73))
Pins 1 and 2 are connectors for outputting the preview signal. Contact output is provided while the [IRIS] lever is pressed. This is a dry con-
tact.
Pin No. Function Flow of signal Remarks
1 P.VIEW1 ROP→external control Dry contact
2 P.VIEW2 ROP→external control Dry contact
3 EXTRA1 TALLY→ROP Dry contact
4 EXTRA2 TALLY→ROP Dry contact
