Installation Instructions

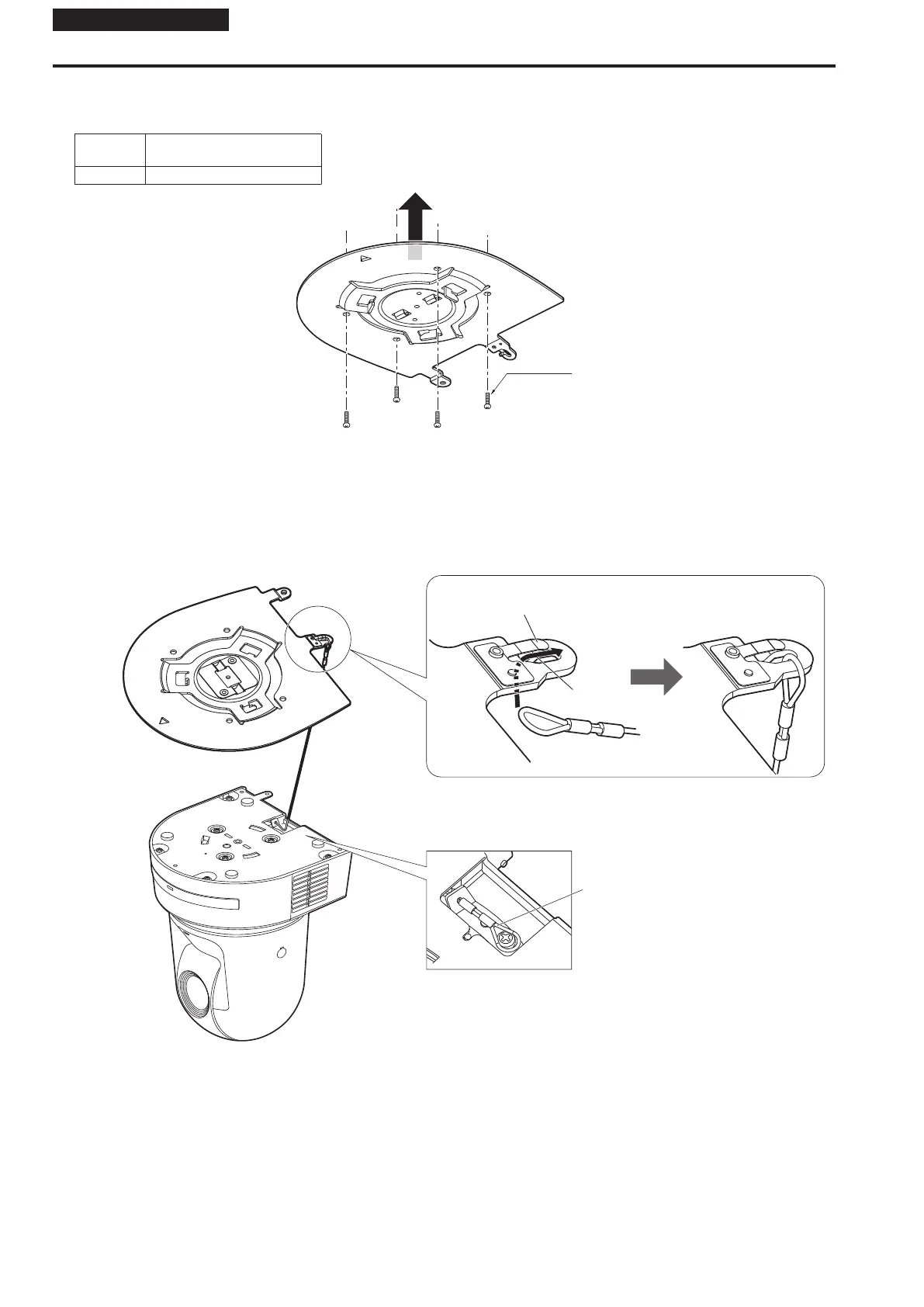

2. Mount the mount bracket onto the installation surface.
• Use the bracket mounting screws (M4, bind-head: 10 mm (13/32 inches) long) supplied with the unit.
• For proper clamping torque, securely attach the screws using the specified tools.
Screw
diameter
Clamping torque
M4 1.47 N · m {15 kgf · cm}
Bracket mounting screws × 4 (supplied)
(M4, bind-head)
<NOTE>
• Use only the screws supplied with the unit. Do not use any other screws such as wood screws, nails, etc.
3. Attach the drop-prevention wire.
• Pull out the drop-prevention wire from the bottom panel of the unit, and engage the end with the wire ring through the hole of the mount bracket
hook.
• Pull the drop-prevention wire, and check that it has been attached securely to the hook.
End of hook
Holding spring
Pull out the drop-prevention wire, and
engage it with the mount bracket hook.
Drop-prevention wire
<NOTE>
• Do not do this work while holding the camera head since doing so may result in malfunctioning of the unit.
• The drop-prevention wire is designed to be used for installation where the unit is suspended from an overhead surface so do not subject it to the
weight of units other than the unit.
12
How to install and connect the unit (continued)
To Next Page
