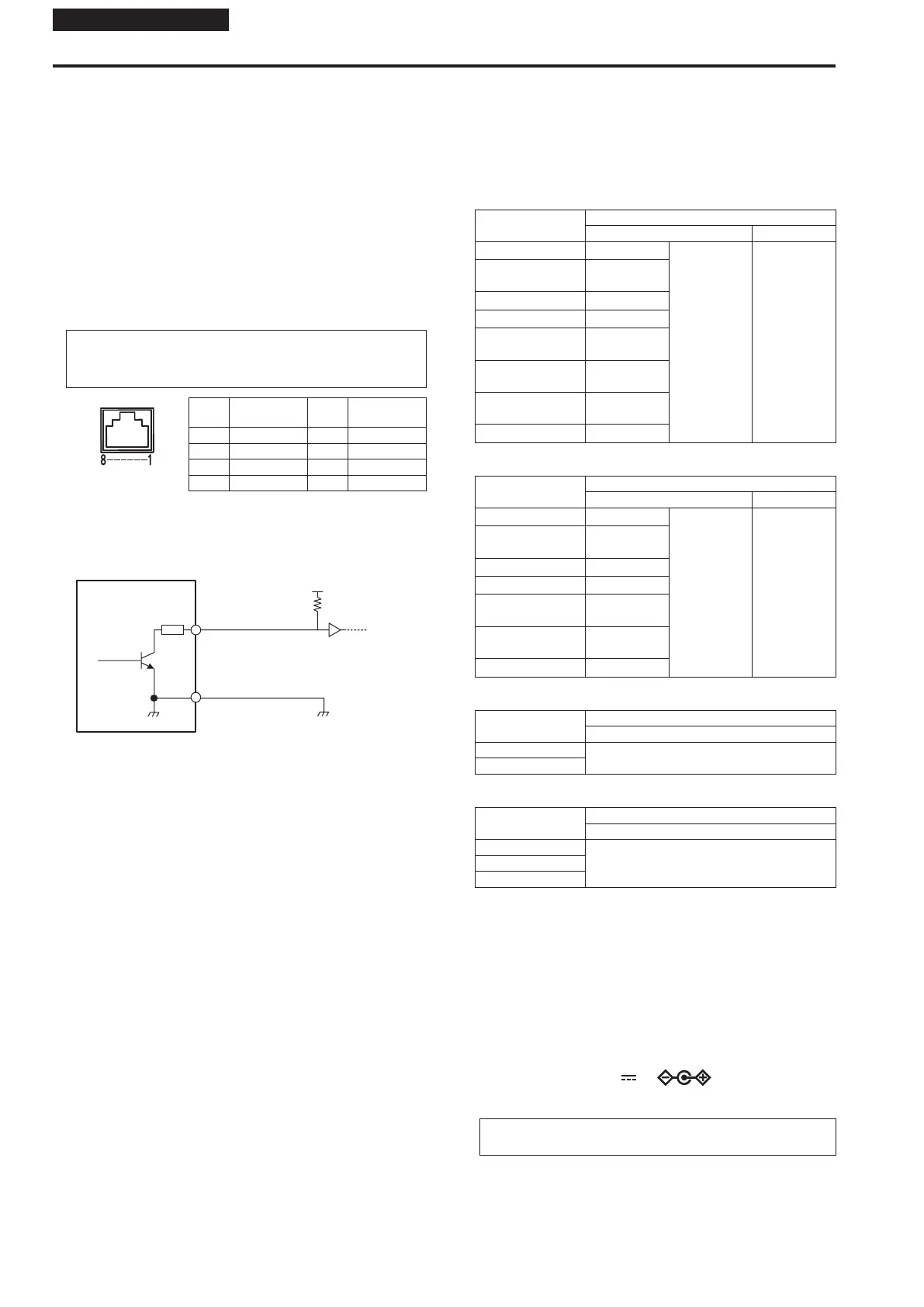

Operating Instructions
10. RS-422 connector <RS-422>
This RS-422 connector (RJ-45) is connected when exercising serial
control over the unit from an external device. Use a cable with the
following specifications for the connection to this connector.
Furthermore, by shorting the R-TALLY signal (2-pin) with the GND
(1-pin), it is possible to light the tally lamp (red) in the camera head
section of the unit.
<NOTE>
• Do not connect PoE cable to the RS-422 port.
• Do not apply a voltage to the R_TALLY_IN signal pin.
• With the menu settings, the ON/OFF for red tally signals or green
tally signals received by this unit can be output via pin 7 or pin
8. Output is by contact output, and normally is “OPEN”, then
it becomes “MAKE” for output. (Operating Instructions (PDF)
→ “Camera menu items” → “Output 5/5 screen” → “External
Output”)
LAN cable
*
1
(category 5e or above, straight cable), STP,
max. 1000 m (3280 ft)
*
1
Use of an STP (shielded twisted pair) cable is recommended.
Pin
No.
Signal
Pin
No.
Signal
1 GND 5 TXD+
2 R_TALLY_IN 6 RXD+
3 RXD– 7
OPTION_OUT1
4 TXD– 8
OPTION_OUT2
Example OPTION_OUT1, OPTION_OUT2 connector
connections
AW-UE80
OPTION_OUT1
OPTION_OUT2
GND
Voltage: Maximum DC12 V
Current: Maximum 100 mA
11. G/L IN connector <G/L IN>
This is the external sync signal input connector.
This unit supports BBS (Black Burst Sync) and tri-level
synchronization.
Supply to this connector the signals that correspond to the video
signal format which has been set.
Frequency: 59.94 Hz, 29.97 Hz
Format
External sync signal input format
Tri-level sync BBS
2160/59.94p ― 1080/59.94i 480/59.94i
2160/29.97p 1080/29.97p
1080/29.97PsF
1080/59.94p ―
1080/59.94i ―
1080/29.97p 1080/29.97p
1080/29.97PsF
1080/29.97PsF 1080/29.97p
1080/29.97PsF
1080/23.98p
over 59.94i
―
720/59.94p 720/59.94p
Frequency: 50 Hz, 25 Hz
Format
External sync signal input format
Tri-level sync BBS
2160/50p ― 1080/50i 576/50i
2160/25p 1080/25p
1080/25PsF
1080/50p ―
1080/50i ―
1080/25p 1080/25p
1080/25PsF
1080/25PsF 1080/25p
1080/25PsF
720/50p 720/50p
Frequency: 24 Hz
Format
External sync signal input format
Tri-level sync
2160/24p 1080/24p
1080/24PsF
1080/24p
Frequency: 23.98 Hz
Format
External sync signal input format
Tri-level sync
2160/23.98p 1080/23.98p
1080/23.98PsF
1080/23.98p
1080/23.98PsF
12. AUDIO IN connector <AUDIO IN>
Inputs external audio (microphone, line).
13. LAN connector for IP control <LAN LINK/ACT>
This LAN connector (RJ-45) is connected when exercising IP control
over the unit from an external device. Use a LAN cable
*
1
(category 5e
or above, STP, max 100 m (328 ft)) for connection.
*
1
Use of an STP (Shielded Twisted Pair) cable is recommended.
14. DC IN connector <12V IN >
Connect the AC adaptor supplied with the unit to this connector to
supply the DC 12 V voltage to the unit.
AC adaptor
Be sure to use the supplied AC adaptor.
48
Parts and their functions (continued)
