35
RAM Module

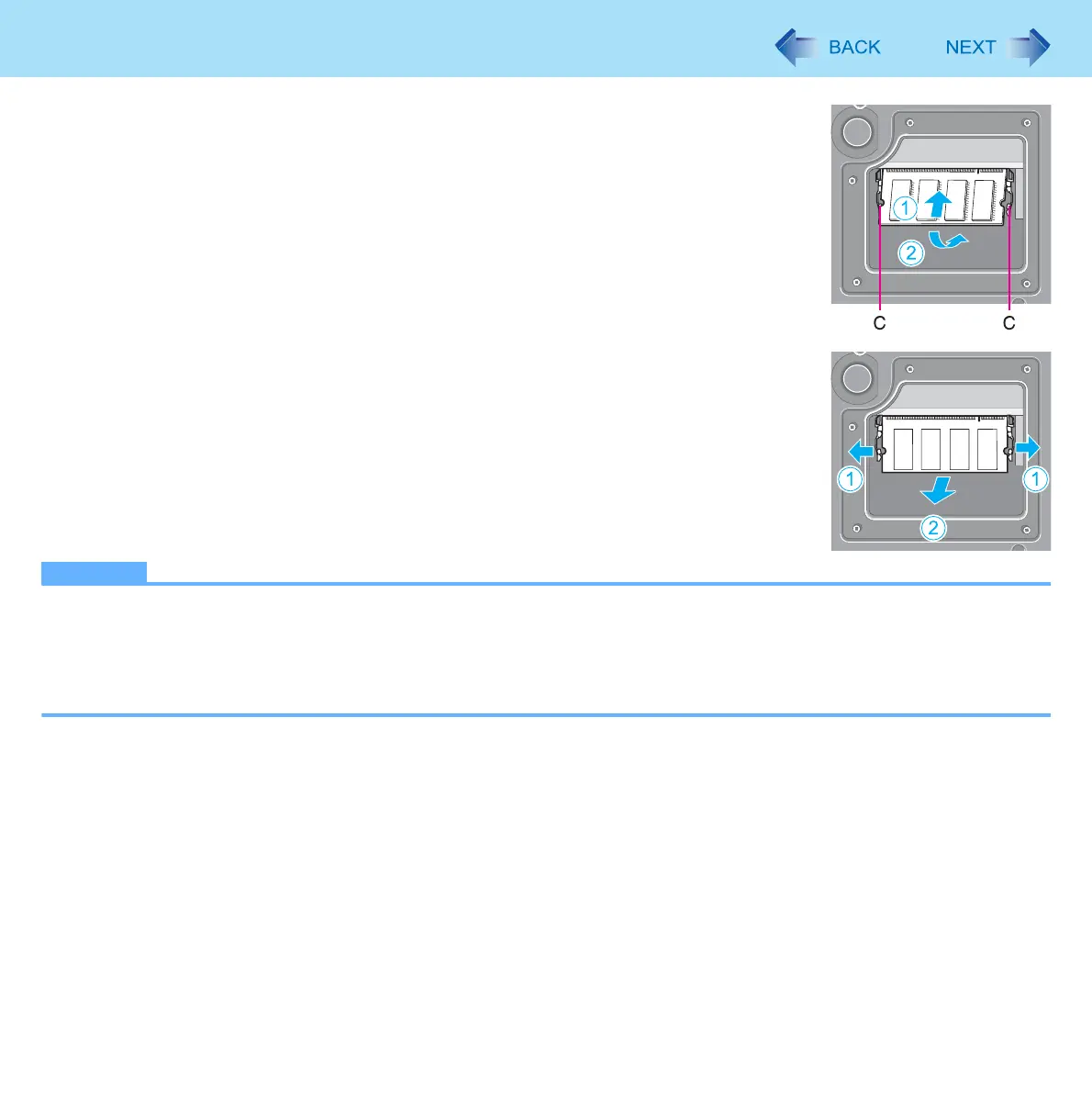

4 Insert/Remove the RAM module.
z To ins e rt
A Tilt the module slightly and insert it in the slot.
B Press down the module so that the right and left hooks (C) are locked.
z To rem o ve
A Carefully open the right and left hooks (C).
The module will rise.
B Carefully remove the module from the slot.
5 Set the cover and battery pack.
NOTE
z If it is hard to insert or to press down the RAM module, do not try forcibly but check the module’s direction.
z Use the appropriate screw driver so as not to strip the head of screw.
z If the RAM module is recognized correctly, the total size of the RAM module memory is displayed on the [Information]
menu of the Setup Utility (Î page 61).
If the RAM module is not recognized, power off the computer and insert it again.
To Next Page
