19.3. Refrigerant charging
•
• •

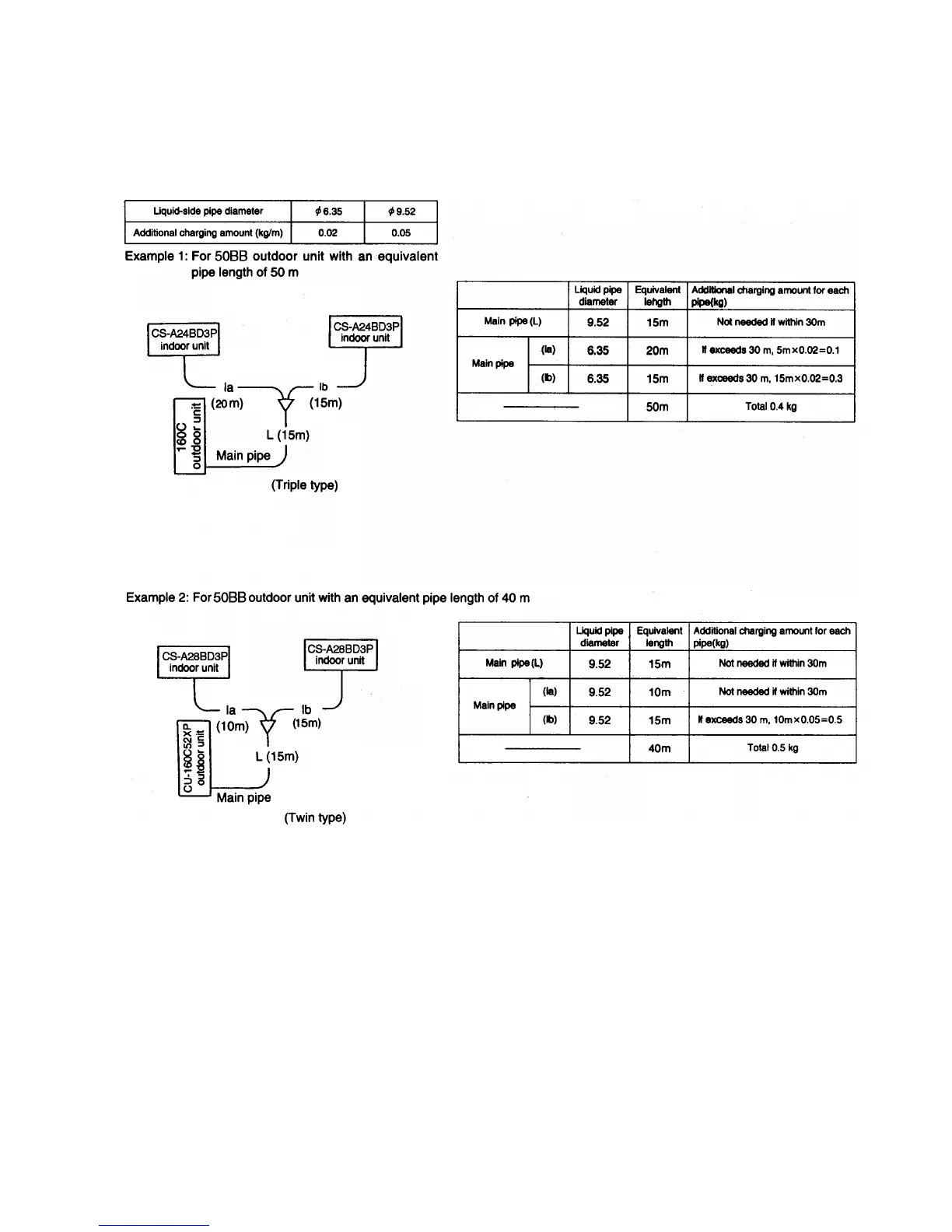

• For twin- and triple-type systems
The pipe length is the total of the branch pipe (L) and the junction pipes (Ia→tIb→t Ic in order from the thickest diameter)). At
the
point where the pipe length exceeds 30 m, determine the amount of refrigerant for the remaining liquid-side pipe diameters and
pipe lengths from the following table in order to charge the system.
43
