Operation Details
Fan Speed Lo RLo
-
RLo
--
Time 10" 4.5" 0.5" 4.5" 0.5" 4" 1" 4" 1"
Fan Motor ON ON OFF ON OFF ON OFF ON OFF
*Lo
--
: Indoor Fan rotates at 6 seconds ON and 4 seconds OFF
*SLo : Indoor Fan rotates at 4 second intervals at Low speed.
*RLo : Random Low Speed.
Lo, RLo
-
, RLo
--
, Fan Speed is operates randomly.
Random Low Speed
36°
61°
140.5°
Upper limit
Closing
position
Swing up
and down
Lower limit for Cooling
and soft Dry Mode
Horizontal

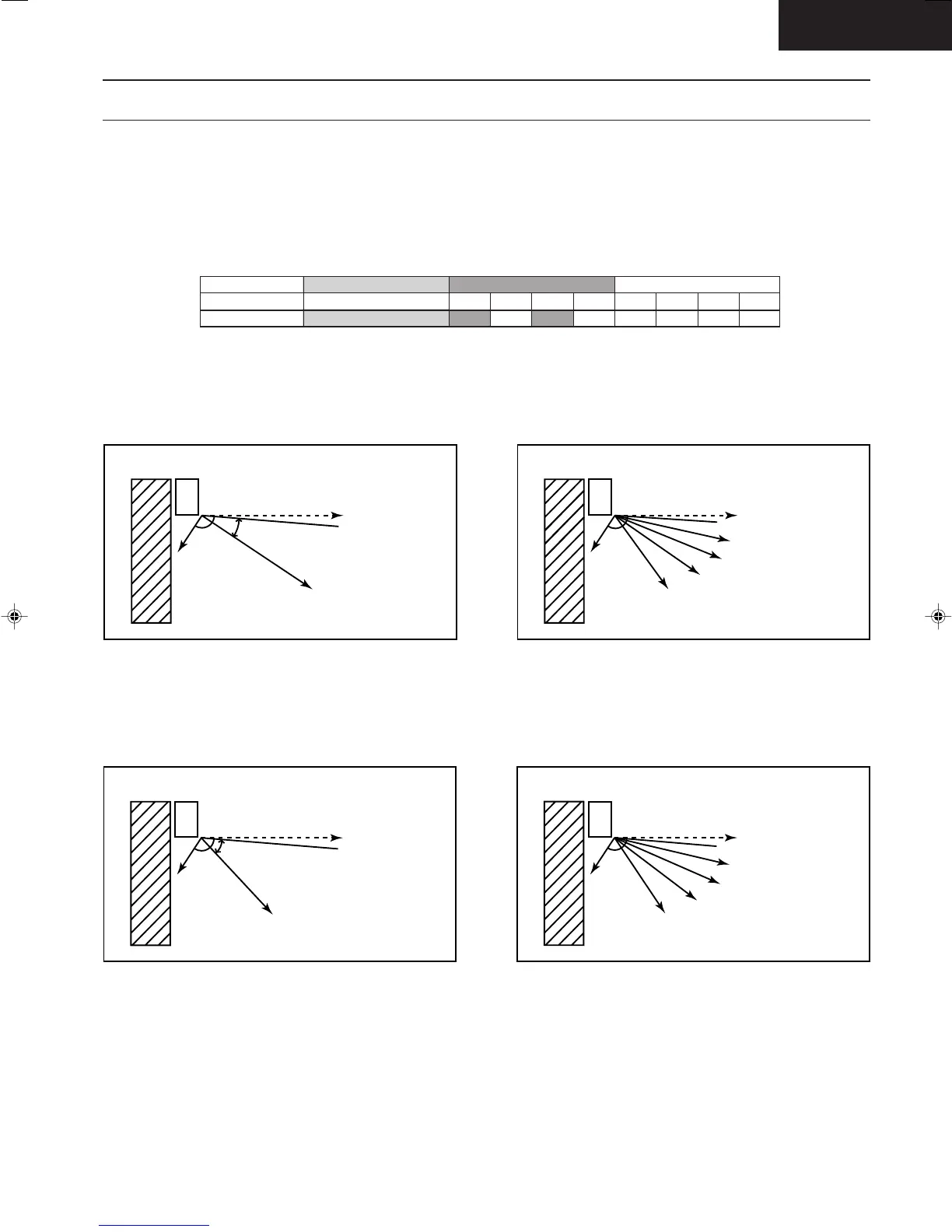

Airflow Direction Auto-Control
140.5°
27°
18°
9°
Upper limit / 0°
Closing
position
Lower limit for
Cooling and Soft Dry
Mode / 36°
Horizontal
Airflow Direction Manual-Control
140.5°
45°
30°
10°
Upper limit / 0°
Closing
position
Lower limit
for Heating Mode / 61°
Horizontal
Airflow Direction Manual-Control
Airflow Direction Auto-Control
140.5°
Upper limit
Closing
position
Lower limit
for Heating Mode / 61°
Horizontal
10) Airflow Direction Control
a)Vertical Airflow Direction
Cooling and Soft Dry Mode.
• The louver swings up and down as shown above.
• The louver does not swing when the Indoor Fan
stops during operation.
• The louver can be selected between 0°– 36° (as
shown above) when pressing Manual Airflow
Direction Selection Button.
• The louver can be selected between 0° – 61° (as
shown above) when pressing Manual airflow Direc-
tion Selection Button.
• When the intake air temp. reaches 38°C, the louver
is changed from upper to lower limit. When the
intake air temp falls to 35°C, the louver is changed
from lower to upper limit.
b) Vertical Airflow Direction
Heating Mode
C)Horizontal Airflow Direction
• The left and right airflow direction louvers can be adjusted manually.
