5. Remove the Front Grille by removing the screw A and
screws B, C & D half way open (Fig. 5).
6. Remove the Air Guider and Drain Pan complete by
removing the screws (Fig. 6).
7. Remove the Turbo Fan by removing the bolt (Fig. 7).
8. Remove the Fan Motor by release the Fan Motor lead wire
connectors and Fan Motor screws (Fig. 8).

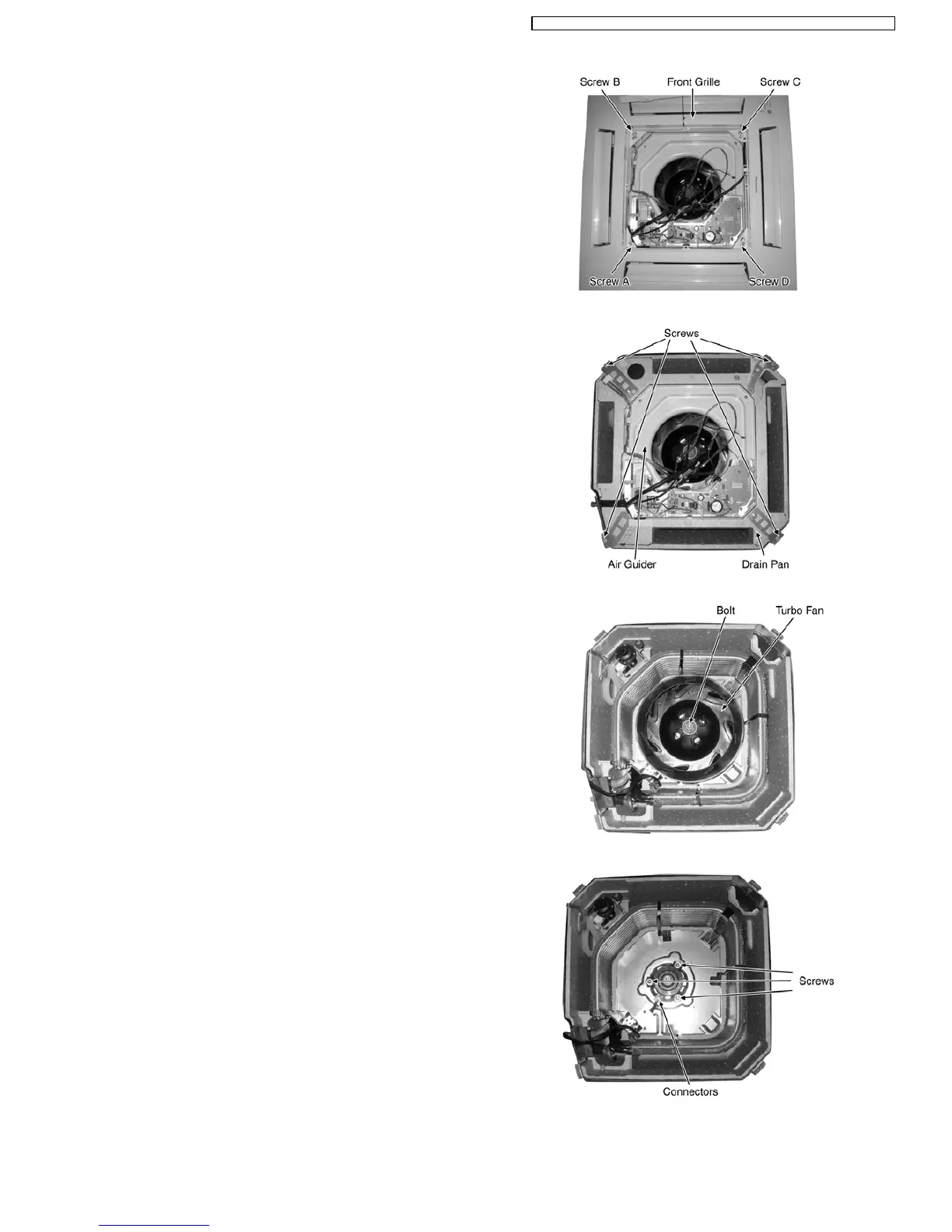

Fig. 5
Fig. 6
Fig. 7
Fig. 8
