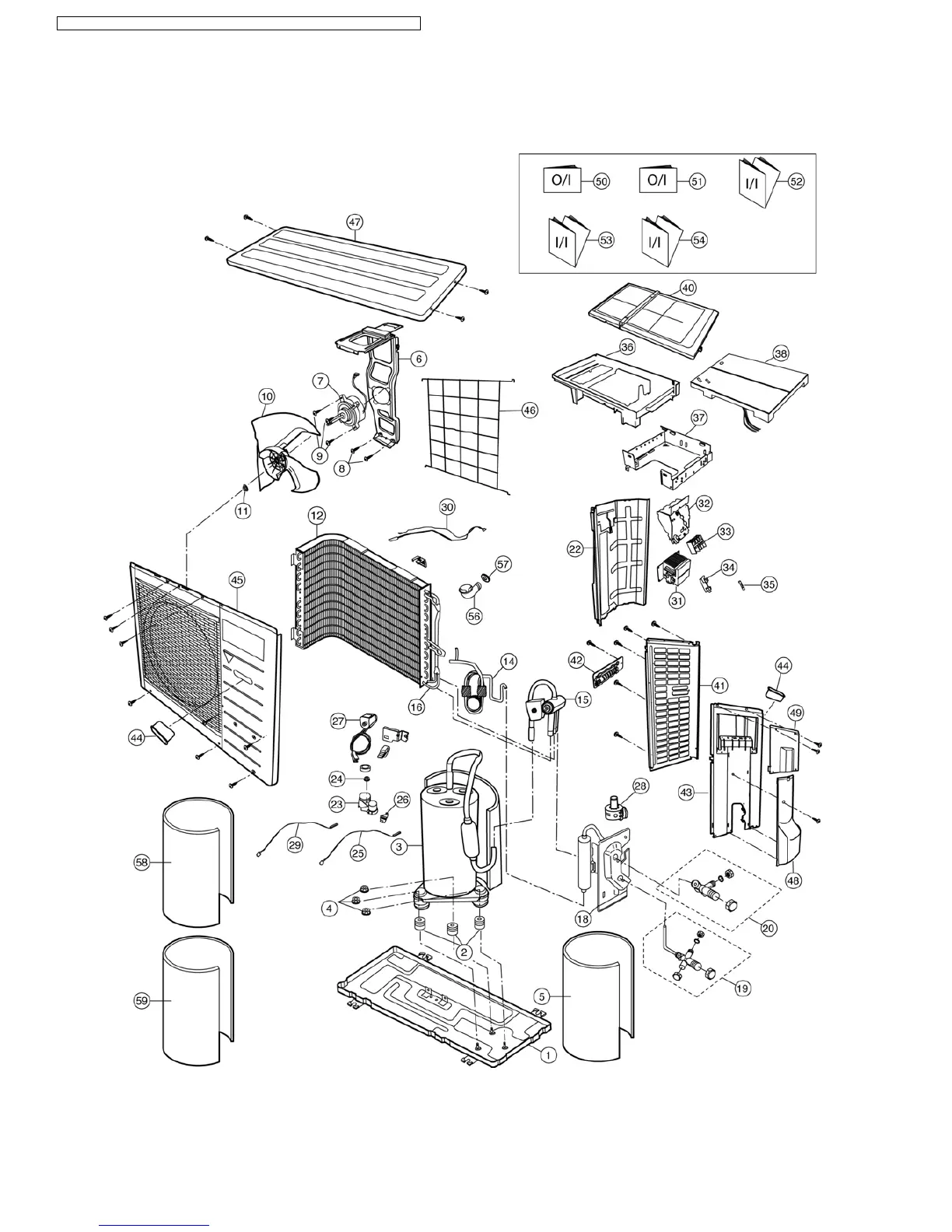

16 Exploded View (Outdoor Unit)
16.1. CU-E15DBE CU-E18DBE CU-E21DBE
Note:
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
84
CS-E15DB4EW CU-E15DBE / CS-E18DB4EW CU-E18DBE / CS-E21DB4ES CU-E21DBE
