1 Features
•
• •
•
Product
−
− −
−
A single OUTDOOR unit enable air conditioning of up to two separate rooms for CU-2E15CBPG and CU-2E18CBPG.
−
− −
−
A single OUTDOOR unit enable air conditioning of up to three separate rooms for CU-3E23CBPG.
−
− −
−
A single OUTDOOR unit enable air conditioning of up to four separate rooms for CU-4E27CBPG.
Remarks for CU-2E15CBPG / CU-2E18CBPG:
1. At least two indoor units must be connected.

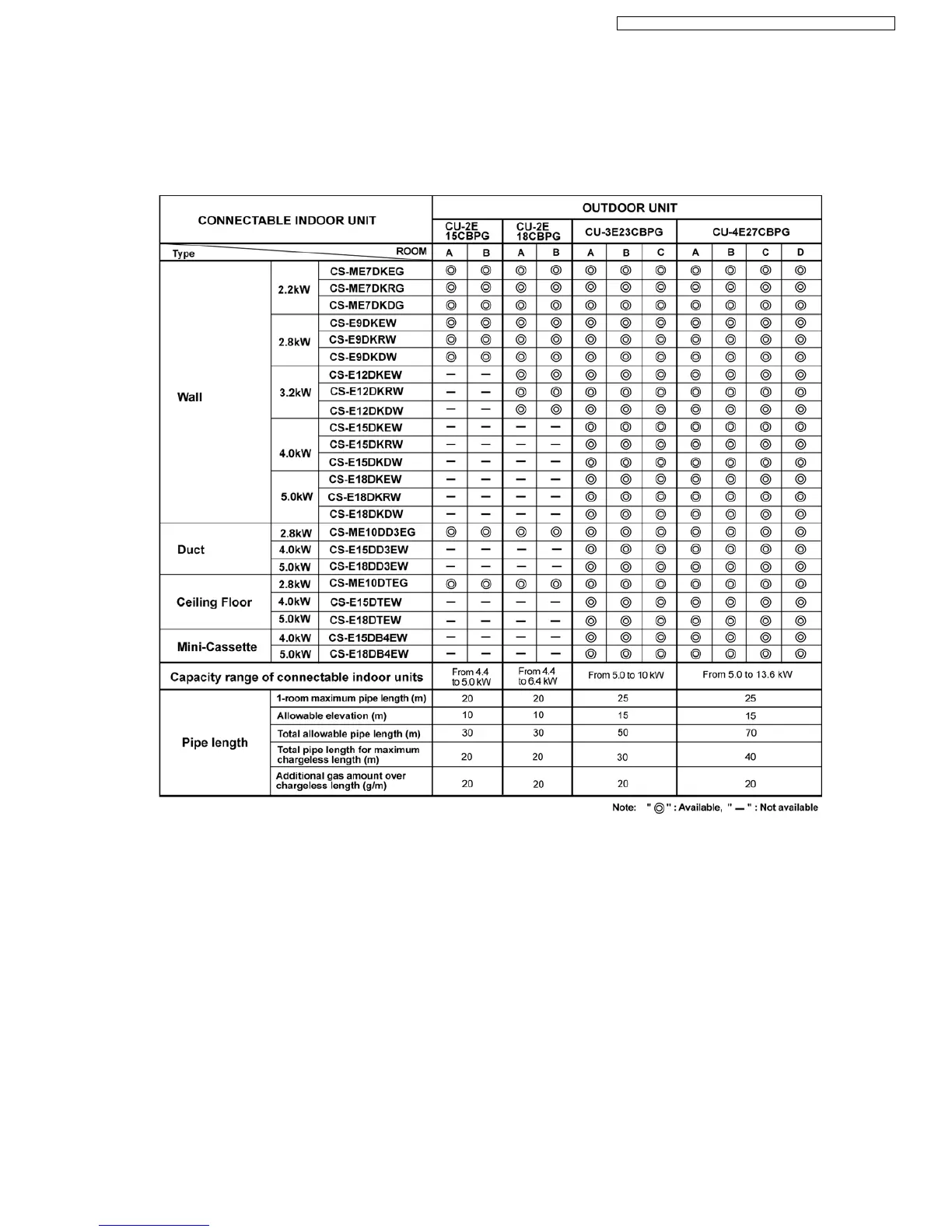

2. The total nominal cooling capacity of indoor units that will be connected to outdoor unit must be within connectable
capacity range of indoor unit. (shown in the above table.)
Example: The below indoor units combination is possible to connect CU-2E15CBPG. (Total nominal capacity of indoor
units is between 4.4 kW and 5.0 kW)
1) Two CS-ME7DKEG only. (Total nominal cooling capacity is 4.4 kW.)
2) One CS-ME7DKEG and one CS-E9DKEW. (Total nominal cooling capacity is 5.0 kW.)
Remarks for CU-3E23CBPG / CU-4E27CBPG:
1. At least two indoor units must be connected.
2. The total nominal cooling capacity of indoor units that will be connected to outdoor unit must be within connectable
capacity range of indoor unit. (shown in the above table.)
Example: The below indoor units combination is possible to connect CU-3E23CBPG. (Total nominal capacity of indoor
units is between 5.0 kW and 10.0 kW)
1) Two CS-ME7DKEG only. (Total nominal cooling capacity is 4.4 kW.)
2) One CS-ME12DKEG. (Total nominal cooling capacity is 9.6 kW.)
3
CS-ME7DKEG CS-ME10DD3 EG / CS-ME10DTEG CS-E15DB4EW
