8 Operation Details
8.1. Basic Operation
Inverter control, which equipped with a microcomputer in determining the most suitable operating mode as time passes,
automatically adjust output power for maximum comfort always.
In order to achieve the suitable operation mode, the microcomputer maintains the set temperature by measuring the
temperature of environment and performing temperature shifting.

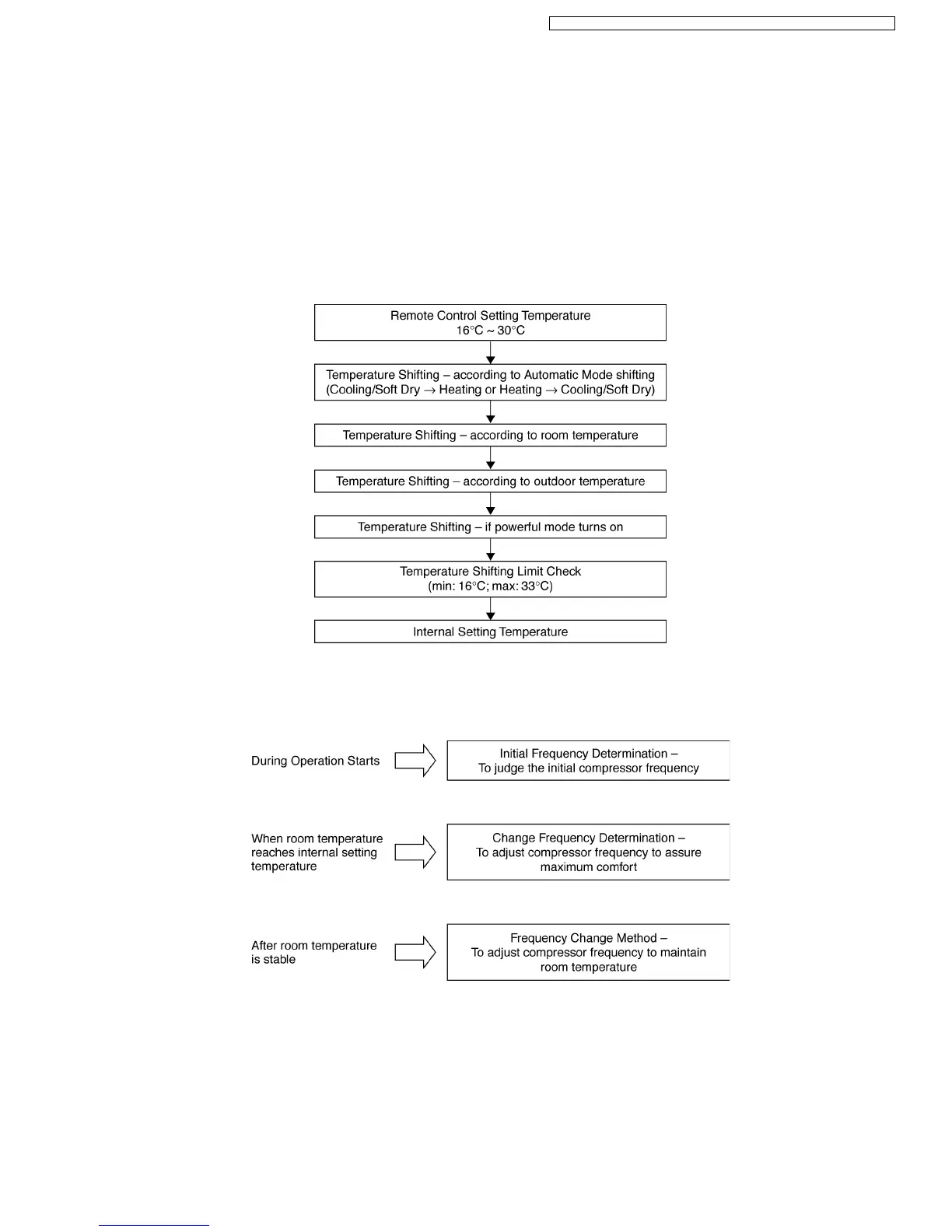

8.1.1. Temperature Shifting Flow
The compressor at outdoor unit is operating following the frequency instructed by the microcomputer at indoor unit that judging the
condition according to internal setting temperature.
17
CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE
