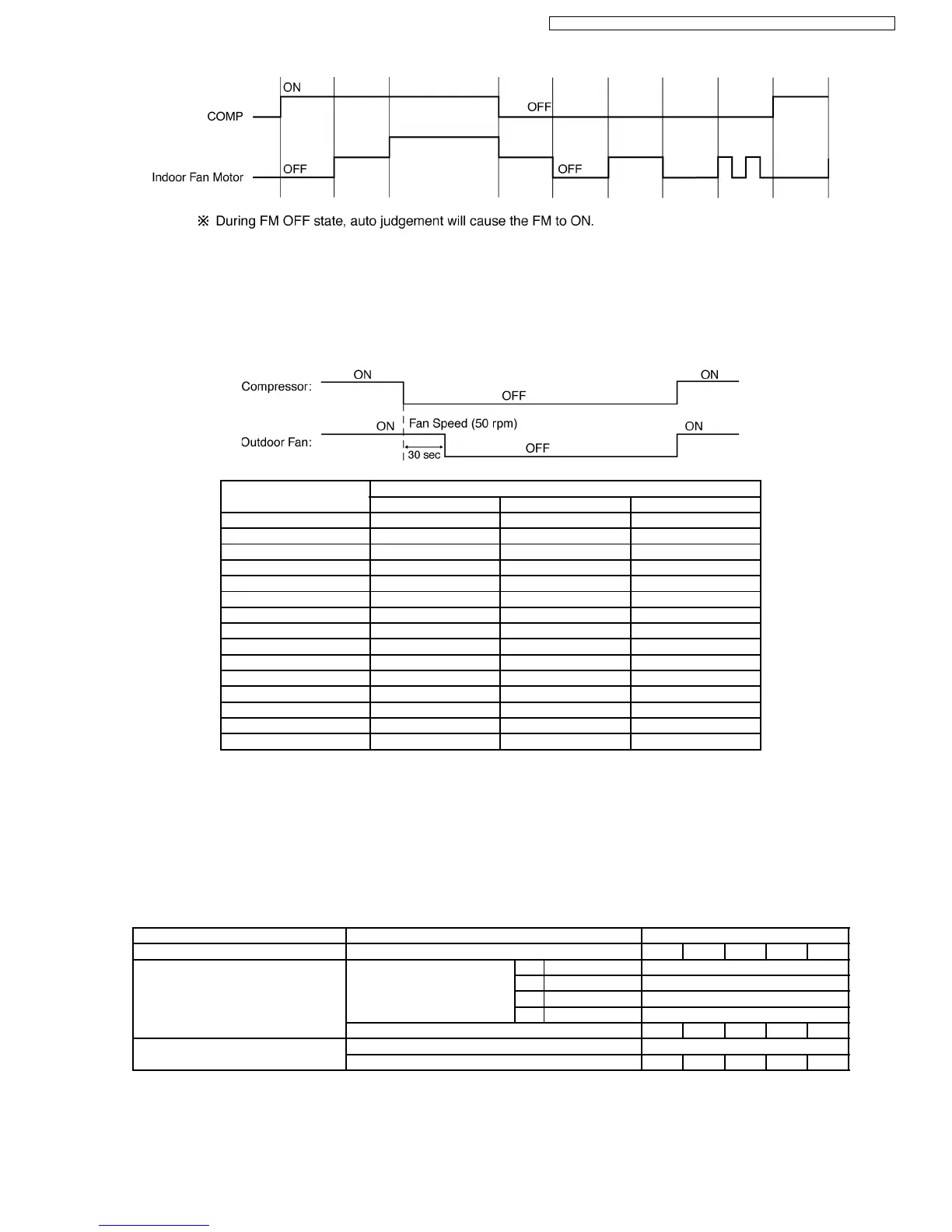

8.1.7. Outdoor Fan Motor Operation
Outdoor fan motor is operated with 15 fan speed. It starts when compressor starts operation and it stops 30 seconds after
compressor stops operation for speed no.8.
No. RPM during Fan Speed (rpm)
E21D E18D E15D
15 75 73 71
14 75 73 71
13 70 68 66
12 68 66 64
11 64 62 60
10 62 60 60
9 58 58 58
8 50 50 50
7 45 45 45
6 40 40 40
5 35 35 35
4 30 30 30
3 25 25 25
2 20 20 20
1 15 15 15
8.1.8. Airflow Direction
1. There are one types of airflow, vertical airflow (directed by horizontal vane).
2. Control of airflow direction can be automatic (angles of direction is determined by operation mode, heat exchanger temperature
and intake air temperature) and manual (angles of direction can be adjusted using remote control).
8.1.8.1. Vertical Airflow
Operation Mode Airflow Direction Vane Angle (°)
1 2 3 4 5
Heating Auto with Heat Exchanger A Downward fix 161
Temperature B Downward fix 161
C Upward fix 197
D Upward fix 197
Manual 197 - - - 161
Cooling, Soft Dry and Ion Auto 26 ~ 49
Manual 49 - - - 26
1. Automatic vertical airflow direction can be set using remote control; the vane swings up and down within the angles as stated
above. For heating mode operation, the angle of the vane depends on the indoor heat exchanger temperature as Figure 1
below. When the air conditioner is stopped using remote control, the vane will shift to close position.
23
CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE
