Panasonic CS-E21DTES Service Manual

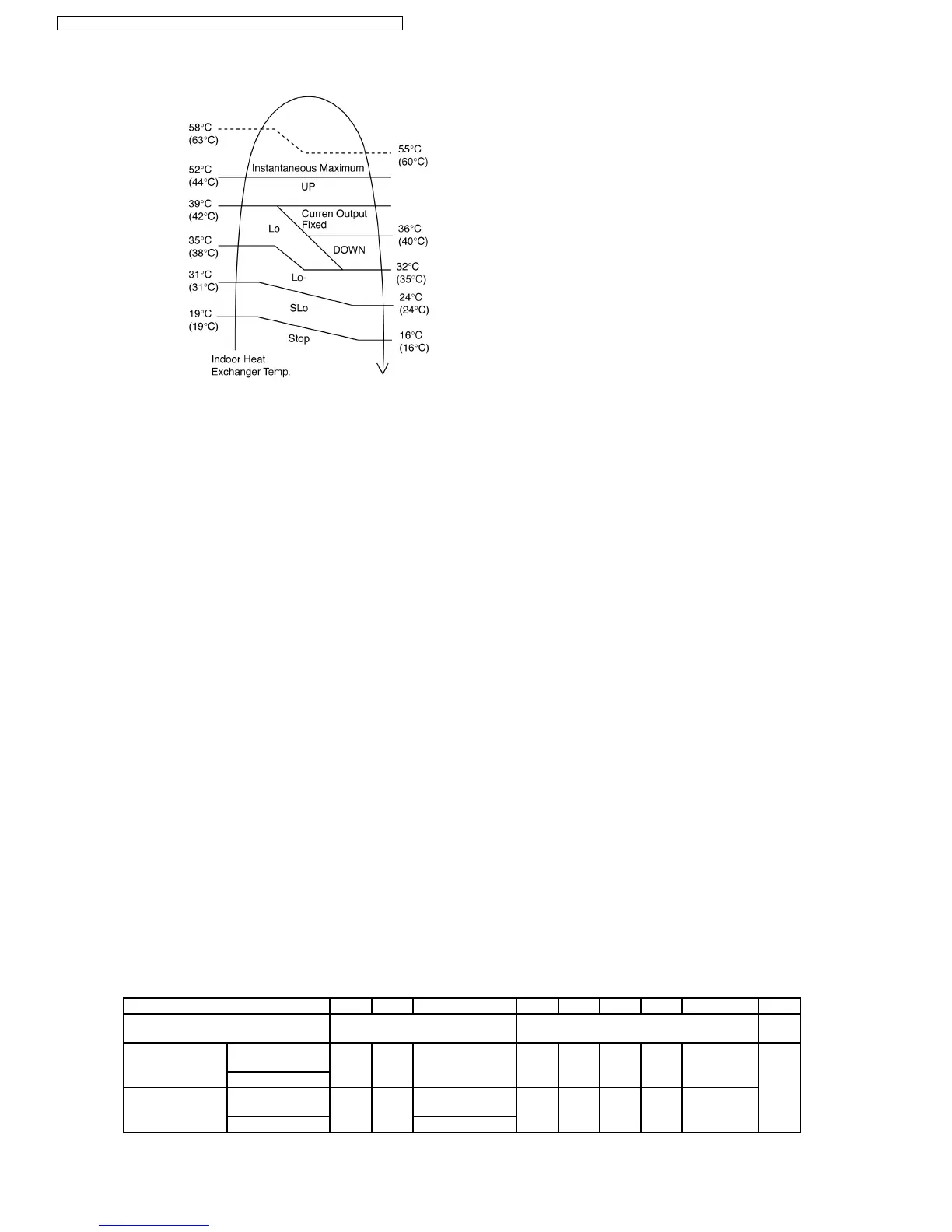

2. Heating
Note:
a. UP:
•
If move from Lo, the fan speed will be shifted to Maximum 1520 rpm.
•
If move from Maximum, the fan speed no change.
•
In up zone, 10 rpm is added for every 10s until Maximum 1520 rpm.
b. DOWN:
•
The fan speed will be decreased one step every 10 sec. until Minimum 1270 rpm.
c. Current Output Fixed:
•
Maintain at present fan speed.
d. Instantaneous Maximum:
•
Fan speed will be increased to maximum auto fan speed.
e. Temperature in ( ) is for Powerful Mode operation.
C. Fan Motor Control
1. Motor specification
Phase control motor
D. Deodorizing Control
i. Control condition
Control at cooling/dry operation and auto fan speed.
No Deodorizing Control is performed during ON timer standby operation and during Anti-freezing control prevention.
ii. Operation
The odor status is arranged as below and it is shifted as follow.
* When COMP is ON 1
→
2
→
3
(Shift to 4 when COMP is OFF)
* When COMP is OFF 4
→
5
→
6
→
7
→
6
←→
7
(Shift to 1 when COMP is ON)
* Start from 4 if the Thermostat is OFF during the start operation.
Odor Status 1 2 3 4 5 6 7 6.7.6... 1
Status Shift
according to COMP
ON OFF ON
Status Shift
according
Cooling
zone
40 50 — 30 90 20 90 20.90.20...
to time (s) Dry zone ON
Fan Speed
Cooling
zone
OFF SSLo
Auto Fan Speed
SSLo OFF SSLo OFF SSLo.OFF...
Dry zone SLo
22
CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE
