8.1.6. Indoor Fan Motor Operation
A. Basic Rotation Speed (rpm)
•
Required rotation speed for fan is set to respond to the remote control setting (10 rpm unit)
[Cooling, Dry, Fan]
Remote Control — — O O O O O — — —
Tab (rpm) PSHI SHI Hi Me+ Me Me- Lo Lo- SLo SSLo
E15D 1050 990 960 903 845 788 730 680 420 —
E18D 1110 1050 1020 965 910 855 800 750 490 —
E21D 1180 1120 1070 1008 945 883 820 770 510 —
[Heating]
Remote Control — — O O O O O — — —
Tab (rpm) PSHi SSHi SHi Me+ Me Me- Lo Lo- SLo SSLo
E15D 1090 1020 1000 915 830 745 660 620 370 320
E18D 1150 1080 1050 962 875 788 700 660 400 350
E21D 1210 1140 1080 990 900 810 720 680 420 370
B. Indoor Fan Control

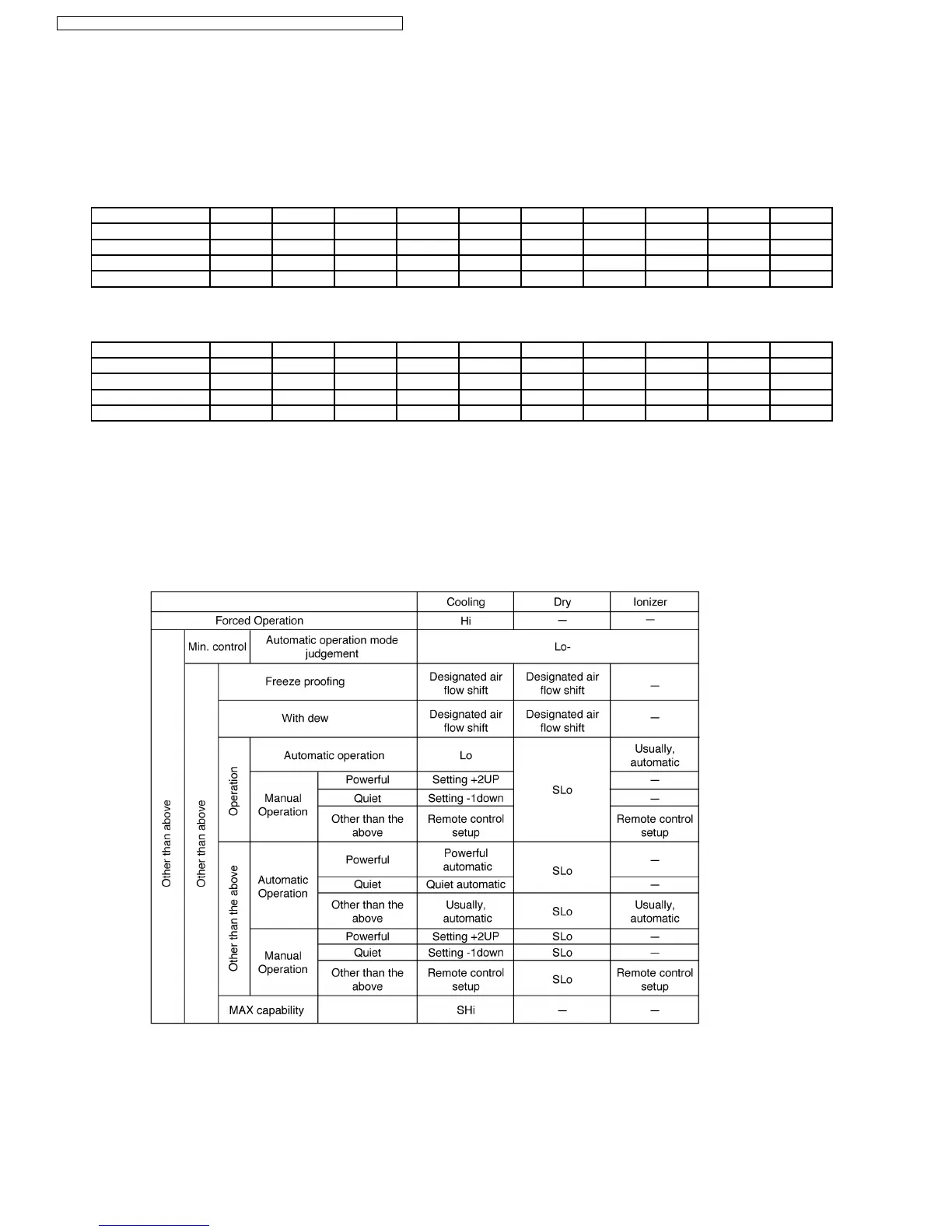

i. Indoor fan control operation outline
1. Cooling / Dry
20
CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE
