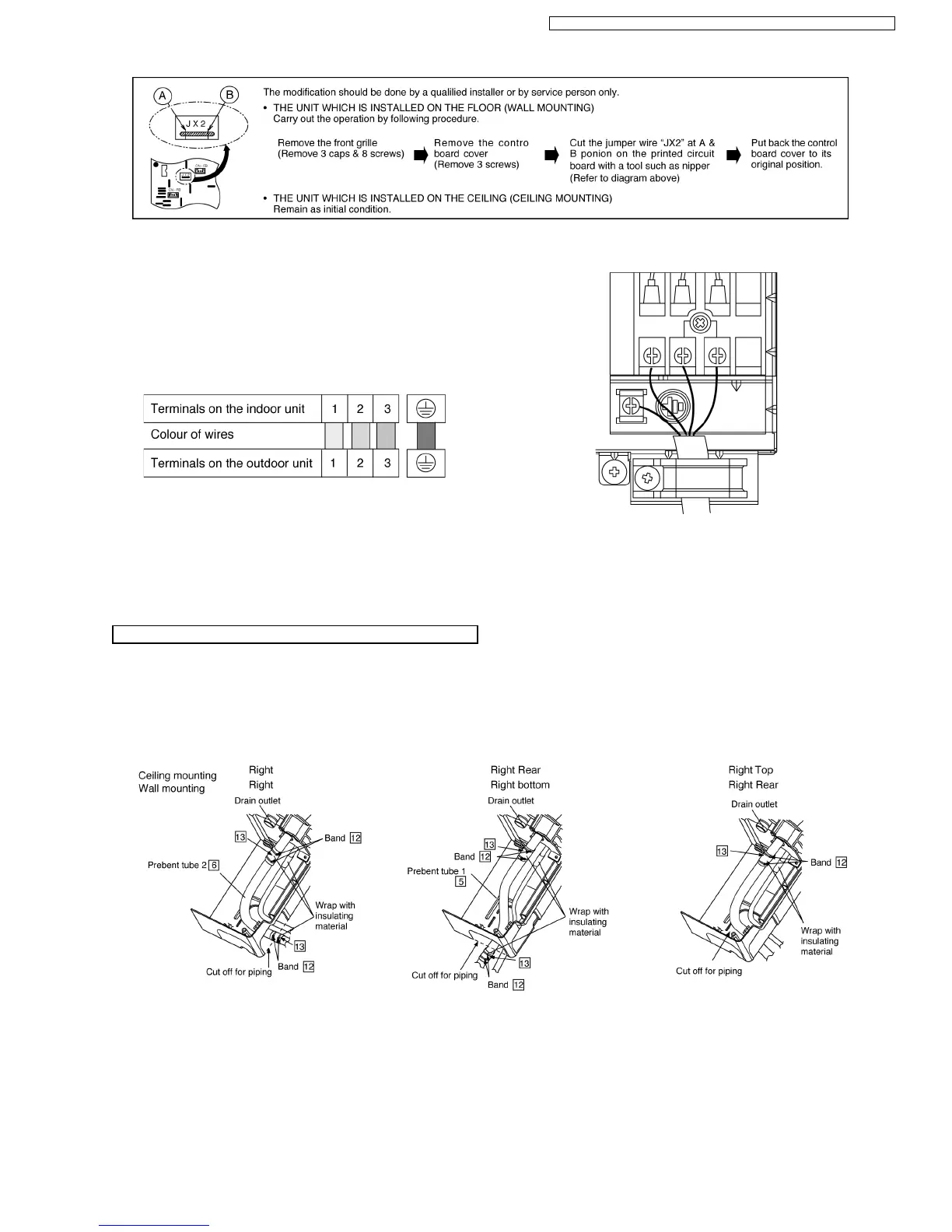

Open the control box at the bottom end of the chassis and
connect the cable through the hole.
•
Connect the wires to the terminals on the control board
individually according to the outdoor unit connection.
•
Ensure the color of wires of outdoor unit and the
terminal Nos are the same to the indoor’s respectively.
•
Secure the cable onto the control board with the holder
(clamper).
•
Insert two tabs on the Side panel into two slots on the
chassis, and secure it to the chassis with the screw.
Piping and Drainage
11.2.5. CONNECT THE CABLE TO THE INDOOR UNIT
11.2.6. PIPING AND DRAINAGE
•
Cut off the Chassis with a nipper according to the inner surface for the Pipings.
•
Align the center of the pipings and sufficiently tighten the flare nut with fingers.
•
Finally tighten the flare nut with torque wrench, ensure the direction for tightening follows the arrow on the wrench.
•
Wrap the tube joining areas with insulating material so that there are no gaps (if it overlaps, cut the excess material) refer
diagram in “Pipe formings, insulating and finishing”.
•
Connect the drain hose (insulated) to the drain outlet.
57
CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE
