Panasonic CS-E21DTES Service Manual

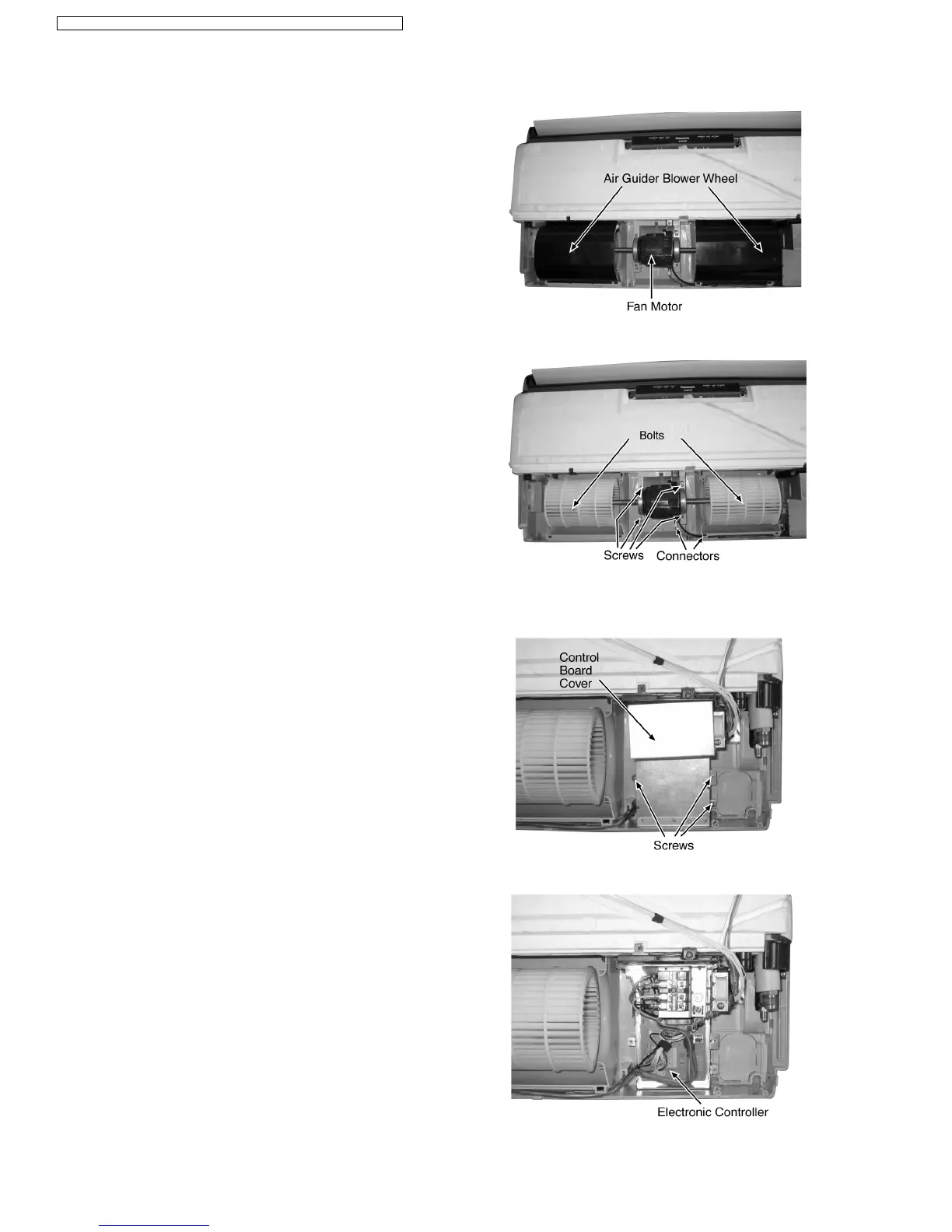

1. Remove two Air Guider Blower Wheel (Fig. 4).
2. Remove Fan Motor by:
- Release the connectors Fan Motor (Fig. 5).
- Remove the Fan Motor supportor screws (Fig. 5).
- Remove the Blower Wheel bolts (Fig. 5).
1. Remove the Control Board Cover by removing the screws
(Fig. 6).
2. Electronic Controller (Fig. 7).
(Fig. 4)
(Fig. 5)
(Fig. 6)
(Fig. 7)
12.5.2. Fan Motor Removal Procedure
12.5.3. Electronic Controller Removal Procedure
70
CS-E15DTEW CU-E15DBE / CS-E18DTEW CU-E18DBE / CS-E21DTES CU-E21DBE
