15.2.6 Odor Cut Control
• To reduce the odor released from the unit.
o Start Condition
 AUTO FAN Speed is selected during COOL or DRY operation.
 During freeze prevention control and timer preliminary operation, this control is not applicable.
o Control content
 Depends on compressor conditions:
1. Compressor OFF → Compressor ON.
The indoor unit fan stops temporarily and then starts to blow at minimum airflow for 30 seconds.
2. Compressor ON → Compressor OFF.
The indoor unit fan stops for 90 seconds and then blows at minimum airflow for 20 seconds.
15.3 Protection Control For Heating Operation
15.3.1 Intake Air Temperature Control
Compressor will operate at limited freq., if indoor intake air temperature is 30°C or above.
15.3.2 Outdoor Air Temperature Control

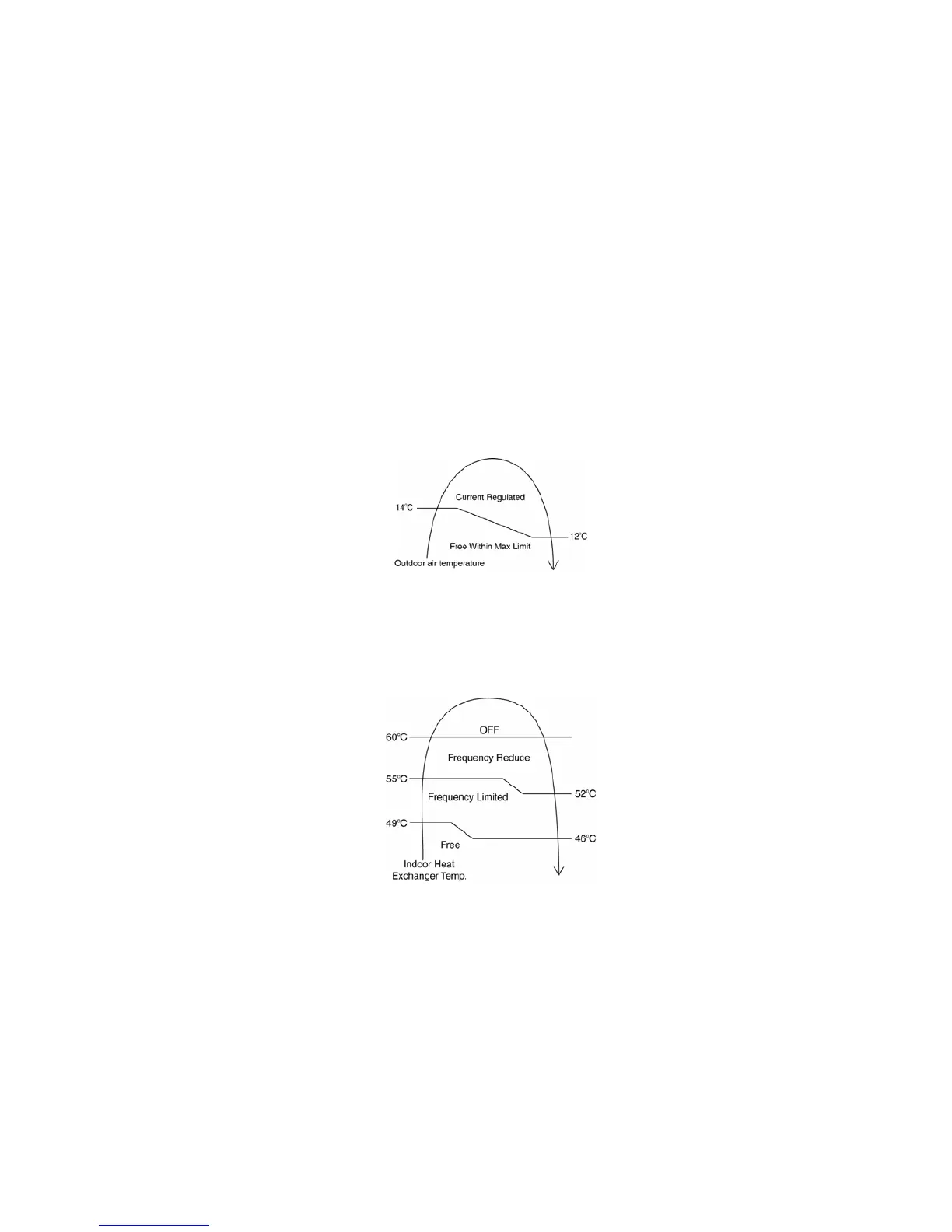

• The Max current value is regulated when the outdoor air temperature rise above 14°C (E7/9/12/15PK) and 14°C
(E18/21PK) in order to avoid compressor overloading.
15.3.3 Overload Protection Control
• The compressor operating frequency is regulated in accordance to indoor heat exchanger temperature as shown
below.
• If the heat exchanger temperature exceeds 60°C, compressor will stop.
15.3.4 Low Temperature Compressor Oil Return Control
• In heating operation, if the outdoor temperature falls below -10°C when compressor starts, the compressor
frequency will be regulated up to 600 seconds.
15.3.5 Cold Draught Prevention Control
• When indoor pipe temperature is low, cold draught operation starts where indoor fan speed will be reduced.
15.3.6 Deice Operation
• When outdoor pipe temperature and outdoor air temperature is low, deice operation start where indoor fan motor
and outdoor fan motor stop and operation LED blinks.

Panasonic CS-E7PKEW Specifications

General

Indoor unit type	Wall-mountable
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	732 m³/h
Heating airflow (indoor unit)	768 m³/h
Indoor unit dimensions (WxDxH)	870 x 255 x 295 mm
Indoor unit noise level (high speed)	38 dB
Type	Air conditioner indoor unit
Ionizer	-
Remotely operated	Yes
Cooling capacity (max)	7000 BTU/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	2400 W
Cooling capacity in watts (min)	750 W
Heating capacity in watts (max)	2800 W
Cooling energy efficiency (EER, W/W)	4.41
Heating energy efficiency (COP, W/W)	4.44
Seasonal efficiency rating (cooling) (SEER)	6.7
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.3
Noise level (low speed)	20 dB
Noise level (medium speed)	25 dB
Power requirements	230V, 10A
Power consumption (cooling) (max)	- W
Power consumption (heating) (max)	1010 W
Power consumption (heating) (min)	230 W
Annual energy consumption (cooling)	110 kWh
Annual energy consumption (heating) (Average heating season)	684 kWh
