12. Installation Instruction
(CS-E28PKES CU-E28PKE only)
12.1 Select the Best Location
12.1.1 Indoor Unit
• Do not install the unit in excessive oil fume area
such as kitchen, workshop and etc.
• There should not be any heat source or steam
near the unit.
• There should not be any obstacles blocking the air
circulation.
• A place where air circulation in the room is good.
• A place where drainage can be easily done.
• A place where noise prevention is taken into
consideration.
• Do not install the unit near the door way.
• Ensure the spaces indicated by arrows from the
wall, ceiling, fence or other obstacles.
• Recommended installation height for indoor unit
shall be at least 2.5 m.
12.1.2 Outdoor Unit
• If an awning is built over the unit to prevent direct
sunlight or rain, be careful that heat radiation from
the condenser is not obstructed.
• There should not be any animal or plant which
could be affected by hot air discharged.
• Keep the spaces indicated by arrows from wall,
ceiling, fence or other obstacles.
• Do not place any obstacles which may cause a
short circuit of the discharged air.
• If piping length is over the [piping length for
additional gas], additional refrigerant should be
added as shown in the table.
Example: For E28***
If the unit is installed at 15 m distance, the quantity of
additional refrigerant should be 150 g .... (15-10) m ×
30 g/m = 150 g.

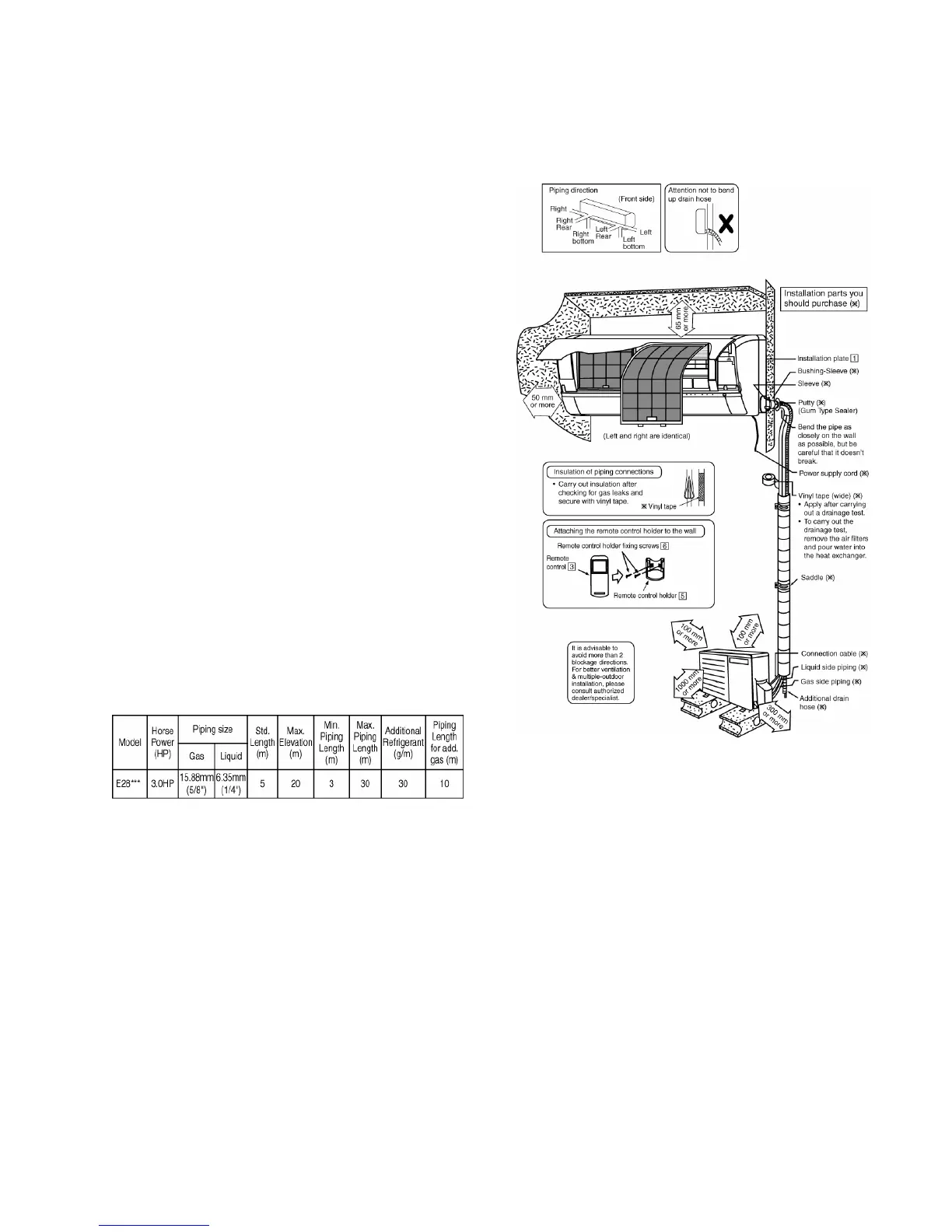

12.1.3 Indoor/Outdoor Unit Installation
Diagram
• This illustration is for explanation purposes only.
The indoor unit will actually face a different way.

Panasonic CS-E7PKEW Specifications

General

Indoor unit type	Wall-mountable
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	732 m³/h
Heating airflow (indoor unit)	768 m³/h
Indoor unit dimensions (WxDxH)	870 x 255 x 295 mm
Indoor unit noise level (high speed)	38 dB
Type	Air conditioner indoor unit
Ionizer	-
Remotely operated	Yes
Cooling capacity (max)	7000 BTU/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	2400 W
Cooling capacity in watts (min)	750 W
Heating capacity in watts (max)	2800 W
Cooling energy efficiency (EER, W/W)	4.41
Heating energy efficiency (COP, W/W)	4.44
Seasonal efficiency rating (cooling) (SEER)	6.7
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.3
Noise level (low speed)	20 dB
Noise level (medium speed)	25 dB
Power requirements	230V, 10A
Power consumption (cooling) (max)	- W
Power consumption (heating) (max)	1010 W
Power consumption (heating) (min)	230 W
Annual energy consumption (cooling)	110 kWh
Annual energy consumption (heating) (Average heating season)	684 kWh
