CAUTION
Before performing any of the electrical installation works, please verify on which of the intended connection use. Generally
there are 2 types of indoor-outdoor connections:
○
A Single Connection (Single Indoor Unit connects with Single Outdoor Unit)
○
B Multiple Connection (Multiple Indoor Unit connect with Single Outdoor Unit)
Both connections have different connecting methods. Any mismatch connections will result in malfunctions.

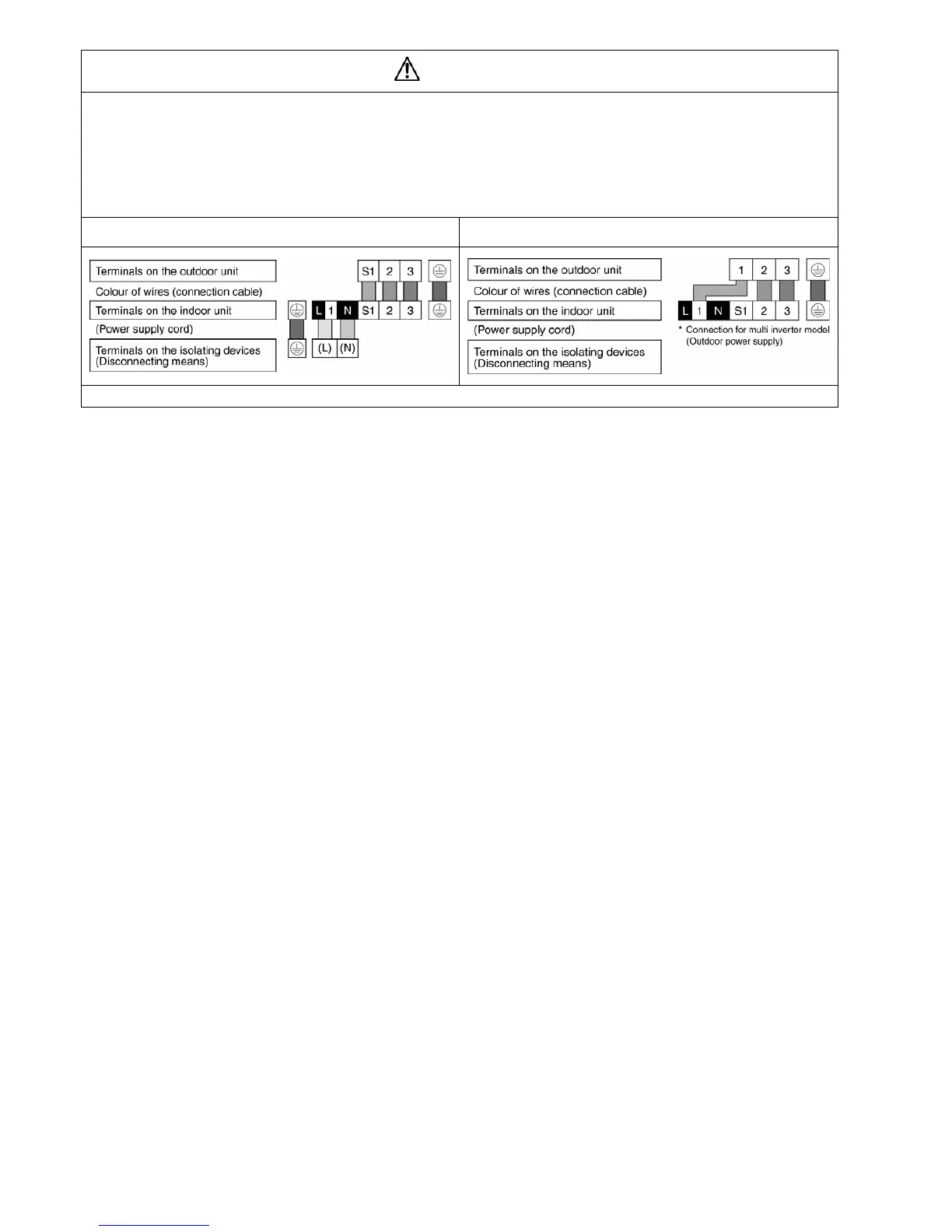

The following illustration demonstrates the correct electrical works for both type.
○
A (Single Connection)
○
B (Multiple Connection)
Please refer to the provided Installation Instructions for the detailed procedures for connecting cables to Indoor Unit.

Panasonic CS-E7PKEW Specifications

General

Indoor unit type	Wall-mountable
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	732 m³/h
Heating airflow (indoor unit)	768 m³/h
Indoor unit dimensions (WxDxH)	870 x 255 x 295 mm
Indoor unit noise level (high speed)	38 dB
Type	Air conditioner indoor unit
Ionizer	-
Remotely operated	Yes
Cooling capacity (max)	7000 BTU/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	2400 W
Cooling capacity in watts (min)	750 W
Heating capacity in watts (max)	2800 W
Cooling energy efficiency (EER, W/W)	4.41
Heating energy efficiency (COP, W/W)	4.44
Seasonal efficiency rating (cooling) (SEER)	6.7
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.3
Noise level (low speed)	20 dB
Noise level (medium speed)	25 dB
Power requirements	230V, 10A
Power consumption (cooling) (max)	- W
Power consumption (heating) (max)	1010 W
Power consumption (heating) (min)	230 W
Annual energy consumption (cooling)	110 kWh
Annual energy consumption (heating) (Average heating season)	684 kWh
