Panasonic CS-E9GKEW Service Manual

26

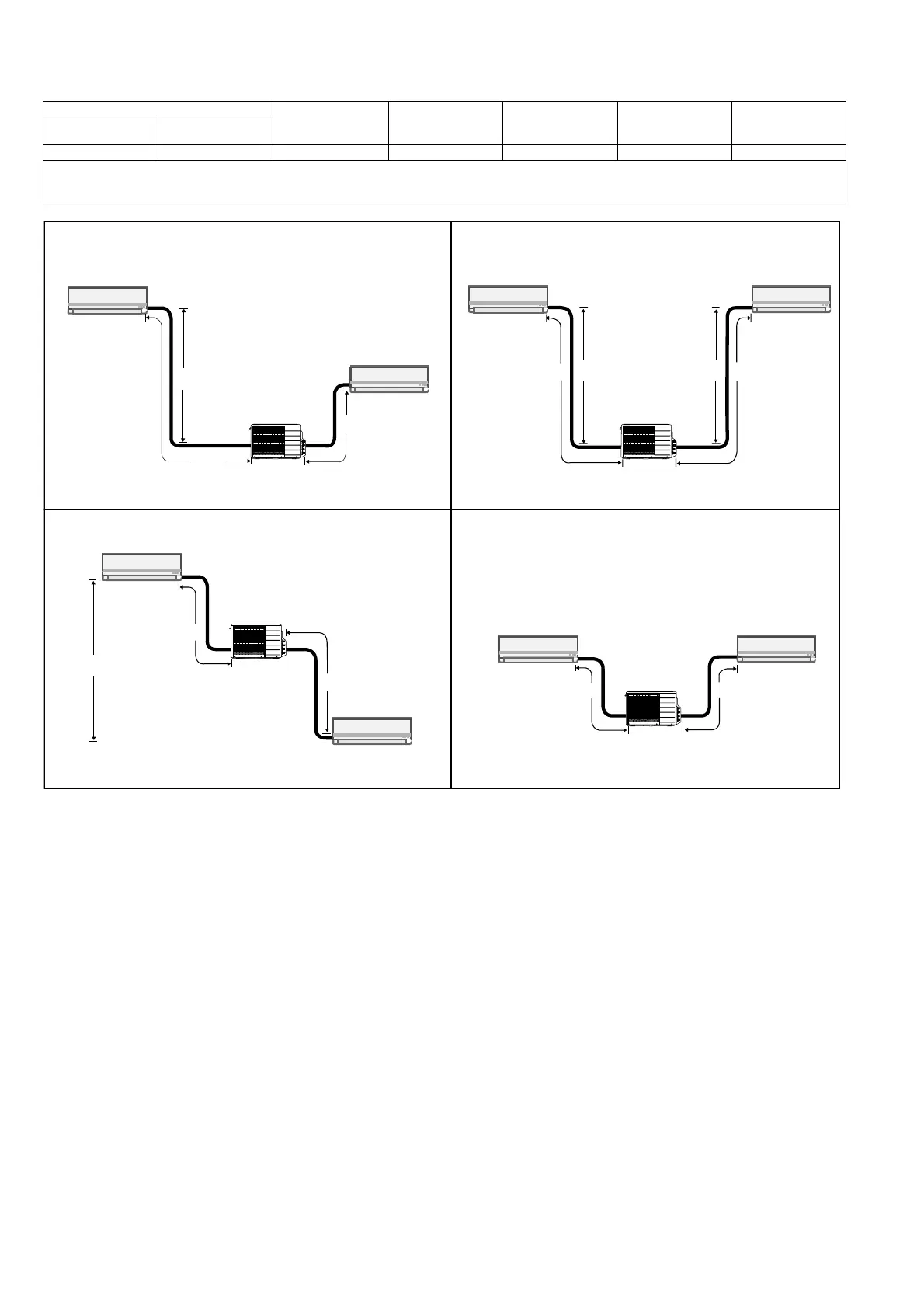

11.3 Piping Length
Piping size
Gas Liquid
Common Length
(m)
Min. Total Length
(m)
Max. Total Length
(m)
Max. Elevation (m) Additional gas
charge amount
(g/m)
3/8” 1/4" 20 6 (3m / indoor unit) 30 x 1 10 20 x 2
Note:
1. It is possible to extend the piping length of one unit up to 20 meters. However, the total piping length must not exceed 30 meters.
2. If the piping length exceeds 20 meters, refrigerant of 20g per meter must be added.
Panasonic
Panasonic
Panasonic
Panasonic
Panasonic
Panasonic
Panasonic
Panasoni c
• Maximum Piping Length
• Maximum Piping Length
• Maximum Piping Length
• Maximum Piping Length
• Additional Gas Charge
(30m - 20m) x 20g = 200g
• Additional Gas Charge
(30m - 20m) x 20g = 200g
• Additional Gas Charge
(30m - 20m) x 20g = 200g
Indoor Unit A Indoor Unit A
Indoor Unit A
Indoor Unit A
Indoor Unit B
Indoor Unit B
Indoor Unit B
Indoor Unit B
Outdoor
Unit
Outdoor
Unit
Outdoor
Unit
Outdoor
Unit
10m
10m
3m
3m
10m
15m
15m
15m
15m10m
10m
20m
