16.3 Outdoor Unit

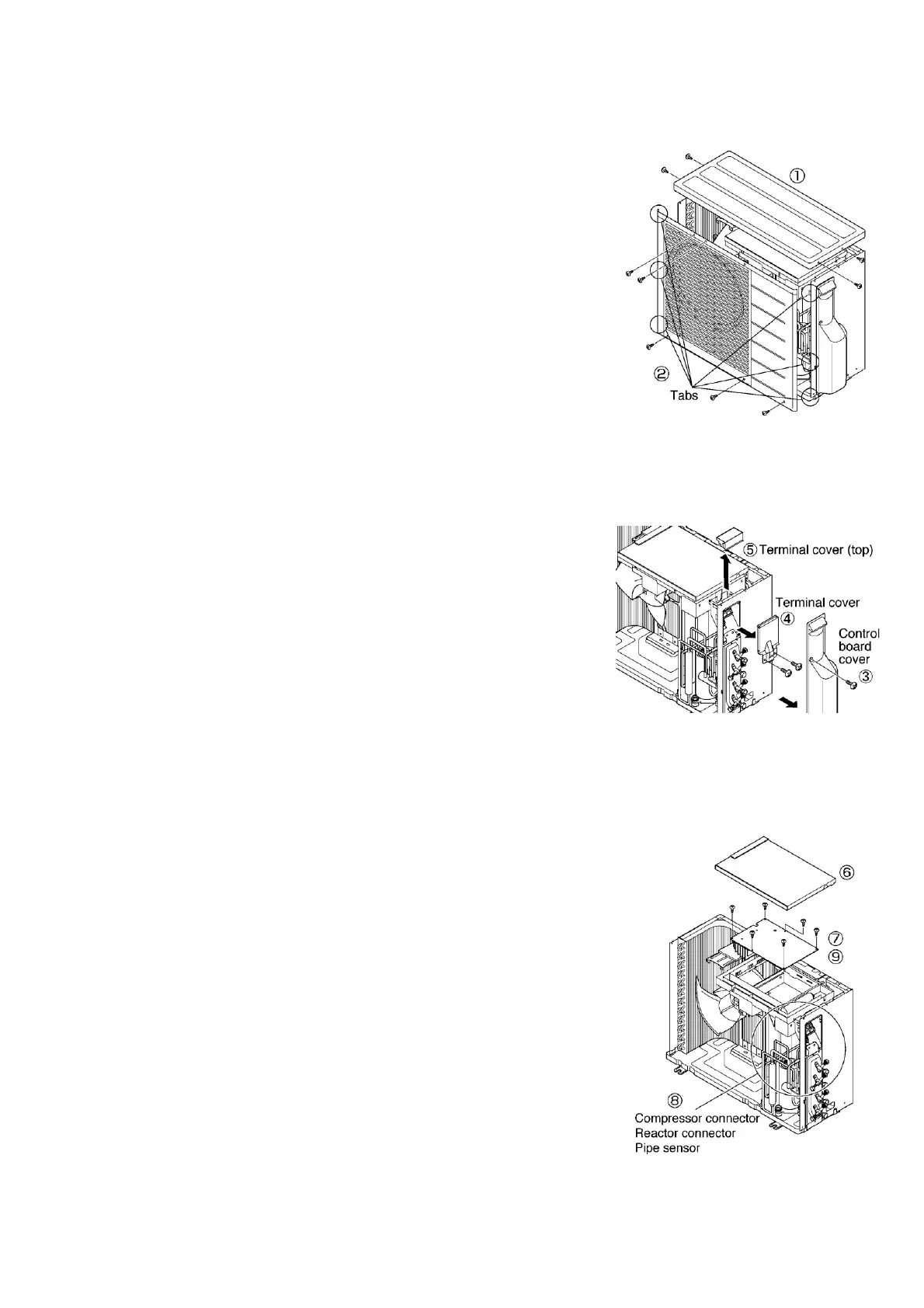

16.3.1 Removing the Cabinet Top Plate and Cabinet Front Plate
1. Remove the cabinet top plate (by removing the 4 screws).
2. Remove the 5 screws fixing the cabinet front plate, release 6 hooks
and pull the cabinet front plate toward front side.
16.3.2 Removing the Control Board Cover
3. Remove the control board cover (remove 1 screw)
4. Remove the terminal cover (remove 2 screws)
5. Remove the terminal cover (top) and disconnect all the lead wires
(3 fasten tab) inside.
16.3.3 Removing the Control Board
6. Remove the control board cover.
7. Remove the 6 screws at the positions on the control board
indicated by arrows
8. Disconnect the connectors and pipe sensor connected to the
compressor and reactor.
9. Remove the control board.
When pulling the control board upward, it may not be possible to
remove it because of the way in which the ground wire and other
wires are routed. In this case, it is removed after the control board
cover itself has been removed.
