58
Fig. 1
Fig. 2
Fig. 3

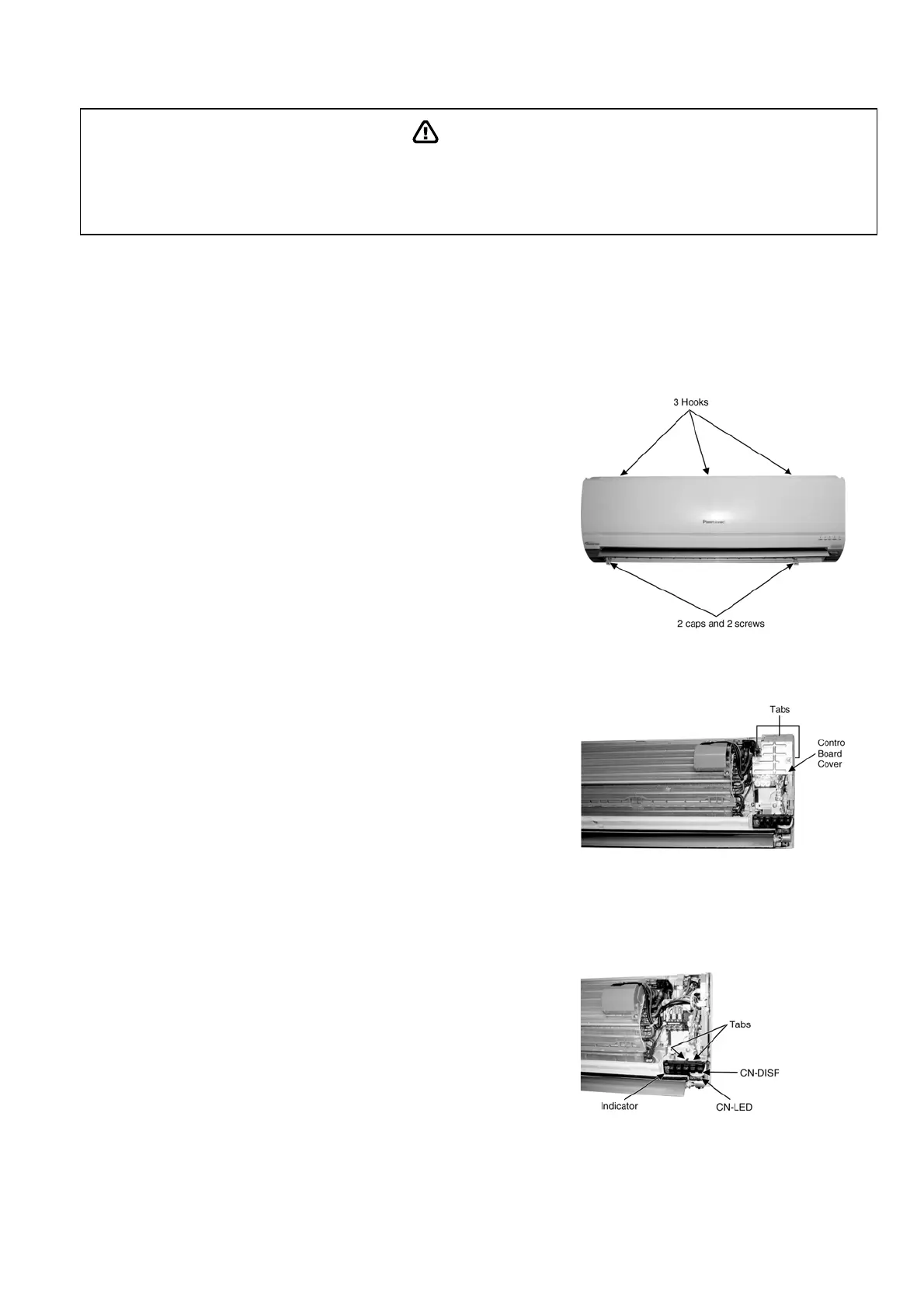

16. Disassembly and Assembly Instructions
16.1 Indoor Unit
(CS-E7GKEW, CS-E9GKEW, CS-E12GKEW, CS-E15GKEW
CS-E7GKDW, CS-E9GKDW, CS-E12GKDW, CS-E15GKDW)
16.1.1 To Remove the Front Grille
Lift to open the vertical vent gently. Remove the 2 caps and 2 screws at
the bottom of discharge vent. (Fig. 1)
Remove the Front Grille by releasing the 3 hooks at the top of the Front
Grille. Hold both sides of the Front Grille and remove it by pulling up
and towards you gently. (Fig. 1)
16.1.2 To Remove the Main Electronic Controller
Unhook the tabs at the Control Board to remove the Control Board
Cover. (Fig. 2)
Release the Indicator by detaching the CN-DISP and CN-LED, and
then remove the Indicator from the 2 tabs. (Fig. 3)
When handling electronic controller, be careful of electrostatic discharge.
Be sure to return the wiring to its original position.
There are many high voltage components within the heat sink cover, so never touch the interior during
operation. Wait at least two minutes after power has been turned off.
WARNING
