62
Fig. 1
Fig. 2
Fig. 3
Fig. 4
16.2 Indoor Unit
(CS-E18GKEW, CS-E18GKDW)

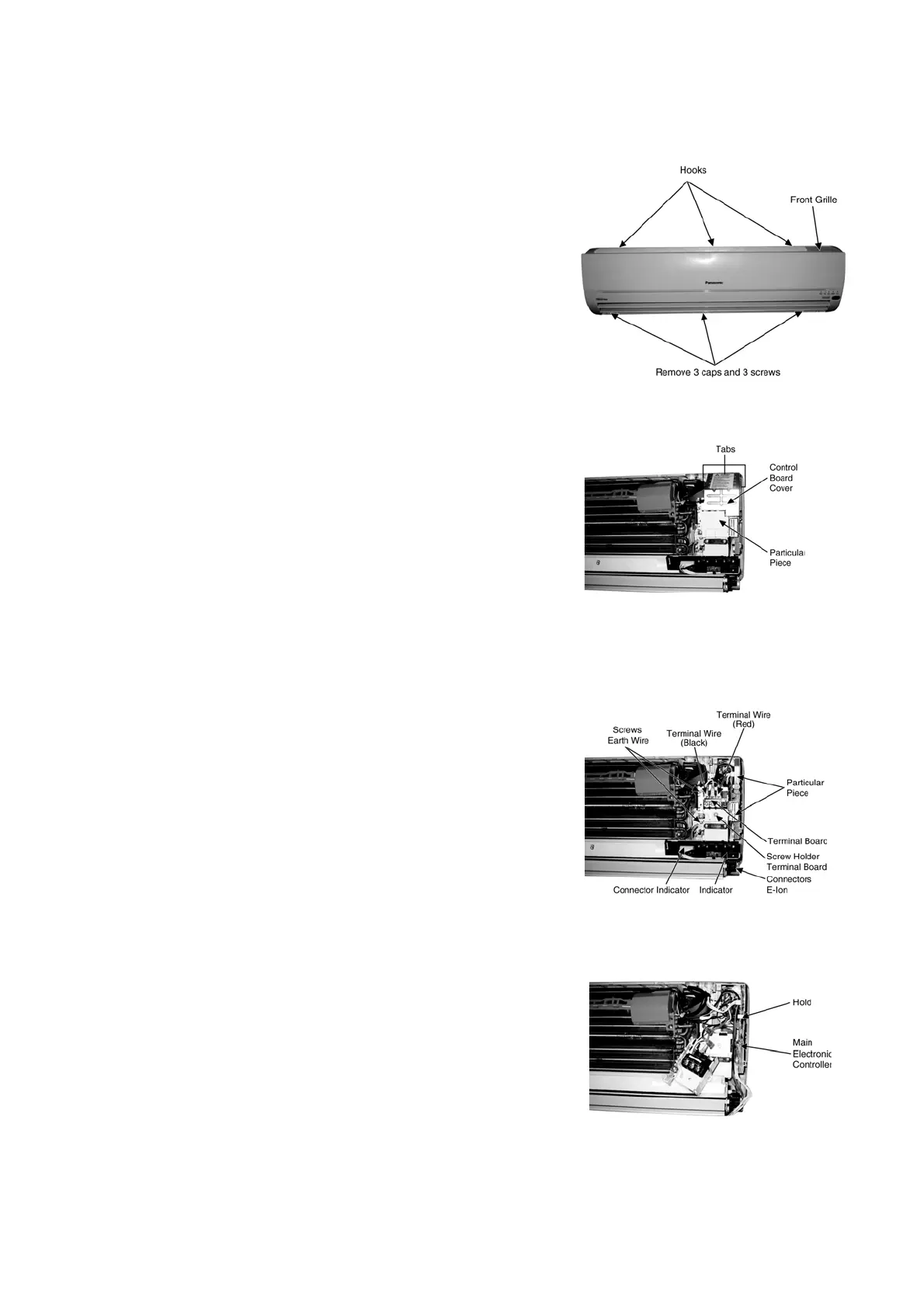

16.2.1 To Remove the Front Grille
• Lift to open the vertical vent gently. Remove the 3 caps and 3 screws at
the bottom of discharge vent. (Fig. 1)
• Remove the Front Grille by releasing the 3 hooks at the top of the Front
Grille. Hold both sides of the Front Grille and remove it by pulling up
and towards you gently. (Fig. 1)
• Unhook the tabs at the Control Board to remove the Control Board
Cover. (Fig 2)
• Release the Particular Piece. (Fig. 2)
16.2.2 To Remove the Main Electronic Controller
• Release the 2 screws for the earth wire. (Fig. 3)
• Pull out 2 terminal wires (Red and Black) from the Terminal Board. (Fig.
3)
• Detach the connector Indicator and release the Indicator. (Fig. 3)
• Release the 2 Particular Piece. (Fig. 3)
• Release the screw Holder Terminal Board. (Fig. 3)
• Release the 2 Connector E-Ion. (Fig. 3)
• Release the hooks that hold the Main Electronic Controller and pull out
the Main Electronic Controller. (Fig. 4)
To Next Page
