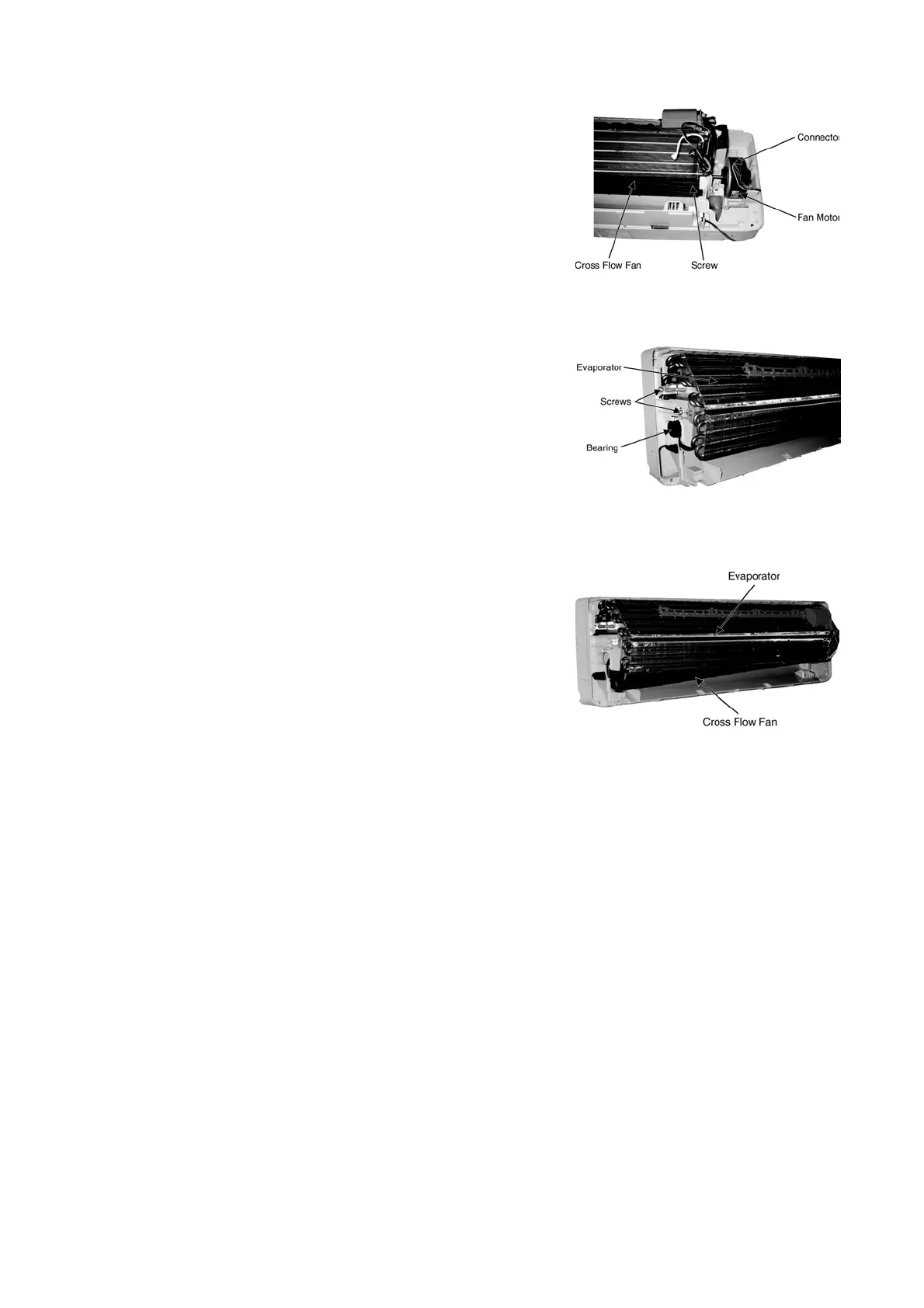

Fig. 10
Fig. 11
Fig. 12
16.2.6 To Remove the Cross Flow Fan and Indoor Fan Motor
• Remove the screw at the Cross Flow Fan (Fig. 10)
Reminder: To reinstall the Fan Motor, please adjust the connector
location is positioned 90° with Fan Motor before fixing Control Board.
(Fig. 10)
• Remove the Bearing. (Fig. 11)
• Remove the screws at the left hand side of the Evaporator. (Fig 11)
• Push up the Evaporator and pull out the Cross Flow Fan from shaft.
Then take out the Fan Motor. (Fig. 12)
