30

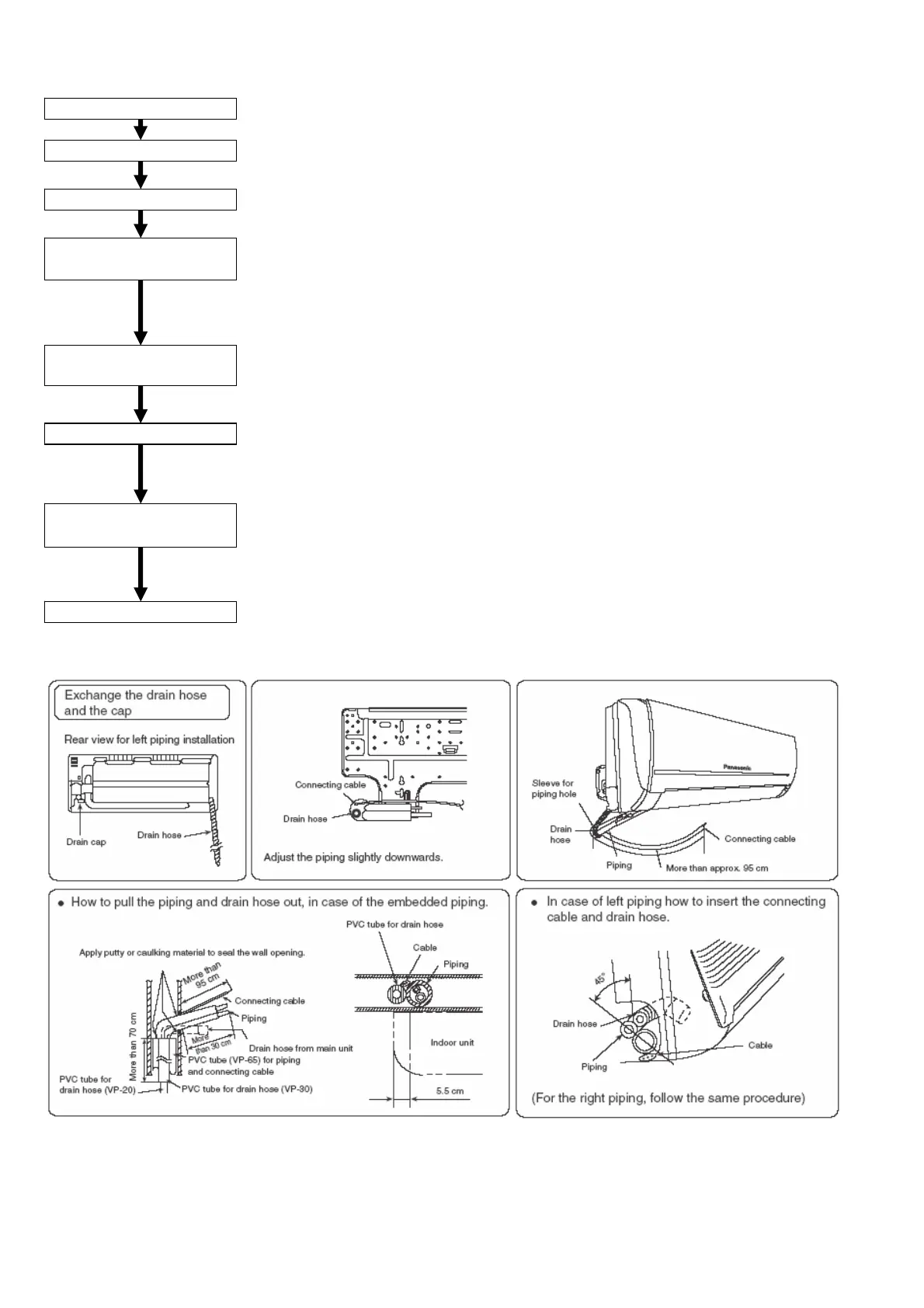

12.2.3.3 For the embedded piping
(This can be used for left rear piping & left bottom piping also.)
Replace the drain hose
Bend the embedded piping
Install the Indoor Unit
Cut and flare the
embedded piping
Pull the connecting cable
into indoor unit
Connect the piping
Insulate and finish the
piping
Secure the Indoor Unit
• Use a spring bender or equivalent to bend the
piping so that the piping is not crushed.
• When determining the dimensions of the piping,
slide the unit all the way to the left on the
installation plate.
• Refer to the section “Cutting and flaring the
piping”.
• The inside and outside connecting cable can be
connected without removing the front grille.
• Please refer to “Connecting the piping” column in
the outdoor unit section (Below steps are done
after connecting the outdoor piping and gas-
leakage confirmation
• Please refer to “Piping and finishing” column in the
outdoor section and “Insulation of piping
connections” column as mentioned in
Indoor/Outdoor unit installation.
To Next Page
