2 Manual vertical airflow direction can be set using remote control; the angles of the vane are as stated above
and the positions of the vane are as Figure 2 below. When the air conditioner is stopped using remote control,
the vane will shift to close position.

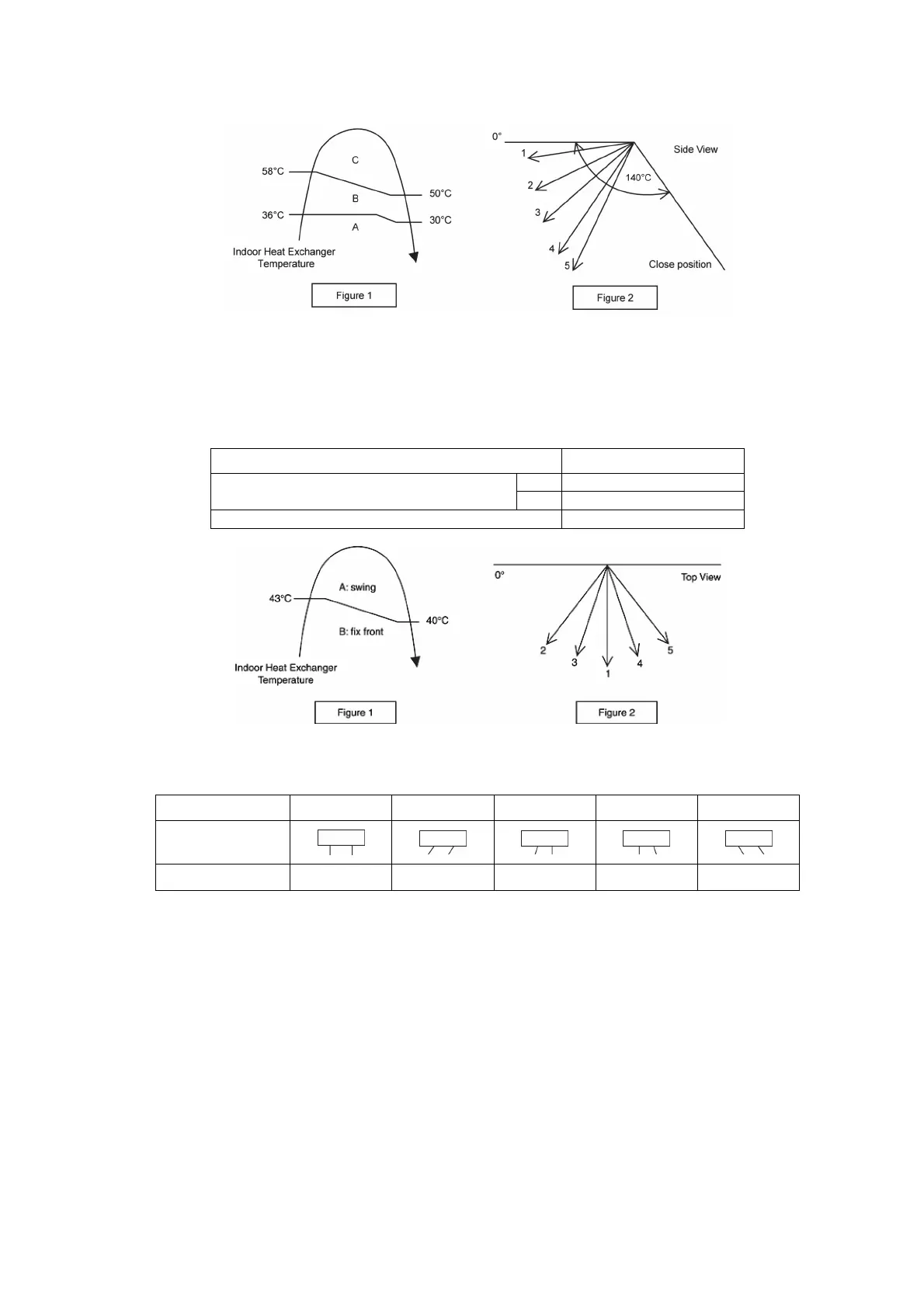

12.2.2 Horizontal Airflow
1 Automatic horizontal airflow direction can be set using remote control; the vane swings left and right within
the angles as stated below. It does not swing during fan motor stop. For heating mode operation, the angle of
the vane depends on the indoor heat exchanger temperature as Figure 1 below.
Operation Mode Vane Angle (°)
A 68 ~ 115
Heating, with heat exchanger temperature
B 90
Cooling and Soft Dry 68 ~ 115
2 Manual horizontal airflow direction can be set using remote control; the angles of the vane are as stated
below and the positions of the vane are as Figure 2 above.
Pattern 1 2 3 4 5
Airflow Direction
Patterns at Remote
Control
Vane Angle (°) 90 70 80 100 110
