Panasonic CS-S9PKR - Outdoor Electronic Controller Removal Procedures

102
15.4 Outdoor Electronic Controller Removal Procedures
15.4.1 CU-S18PKR CU-S24PKR CU-S28PKR

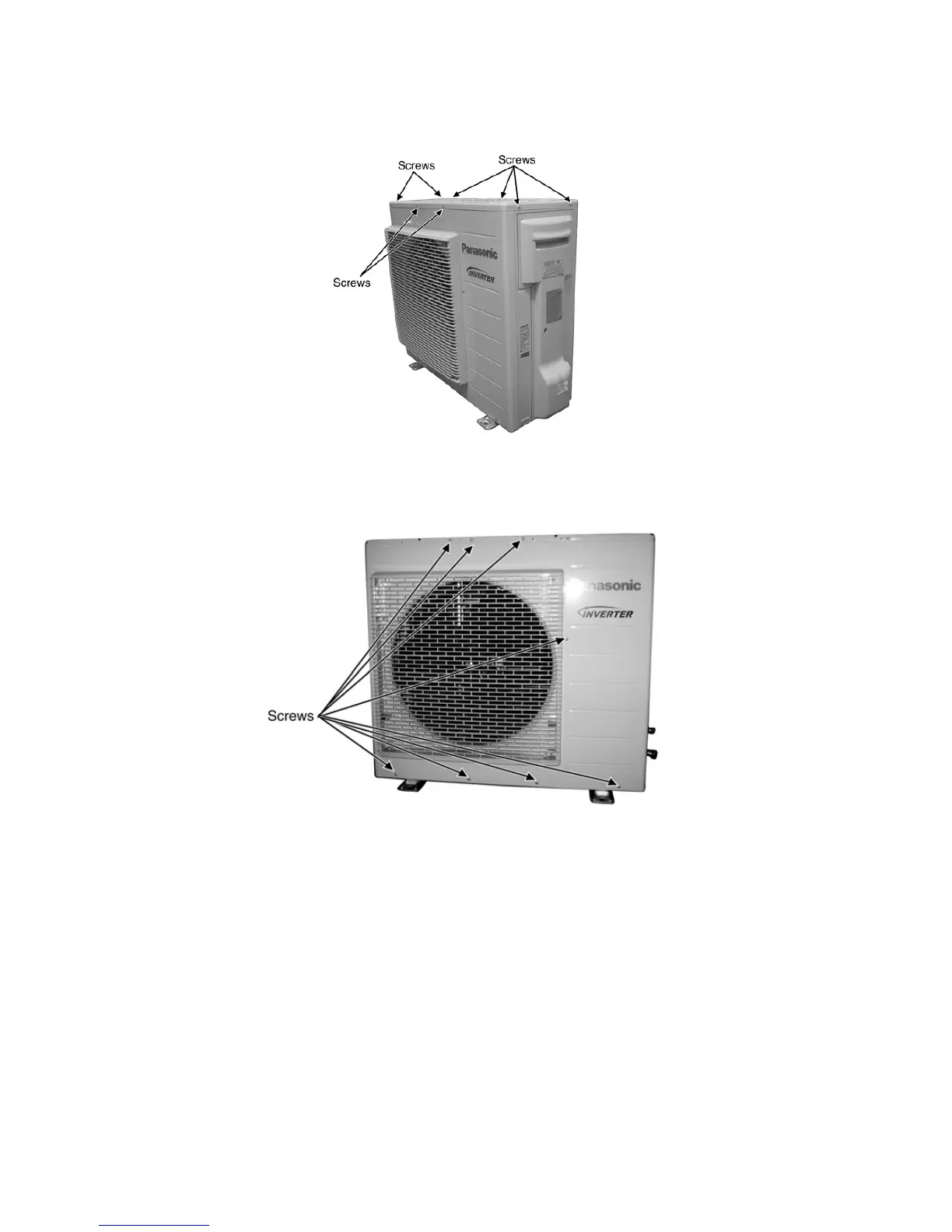

1. Remove 8 screws of the Top Panel.
Figure 1
2. Remove the 8 screws of the Front Panel.
Figure 2
