92
WARNING
15. Disassembly and Assembly Instructions
High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding with
repair work. Failure to heed this caution may result in electric shocks.
15.1 CS-S9PKR CS-S12PKR
15.1.1 Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor Removal
Procedures

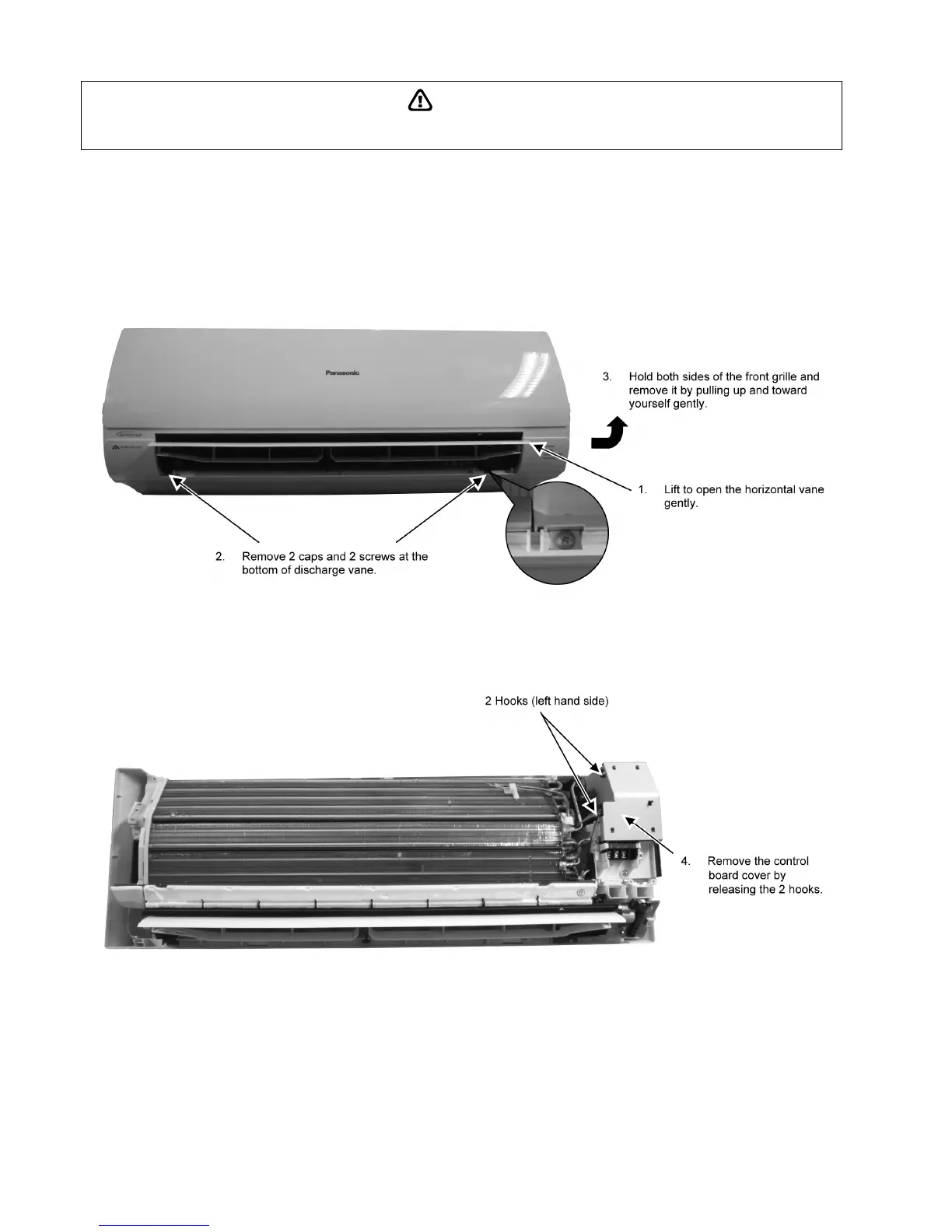

15.1.1.1 To remove front grille
Figure 1
15.1.1.2 To remove main electronic controller
Figure 2
To Next Page
