Panasonic CS-S9PKR - Indoor Unit Disassembly (S18;S24;S28 PKR)

96
15.2 CS-S18PKR CS-S24PKR CS-S28PKR
15.2.1 Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor Removal
Procedures

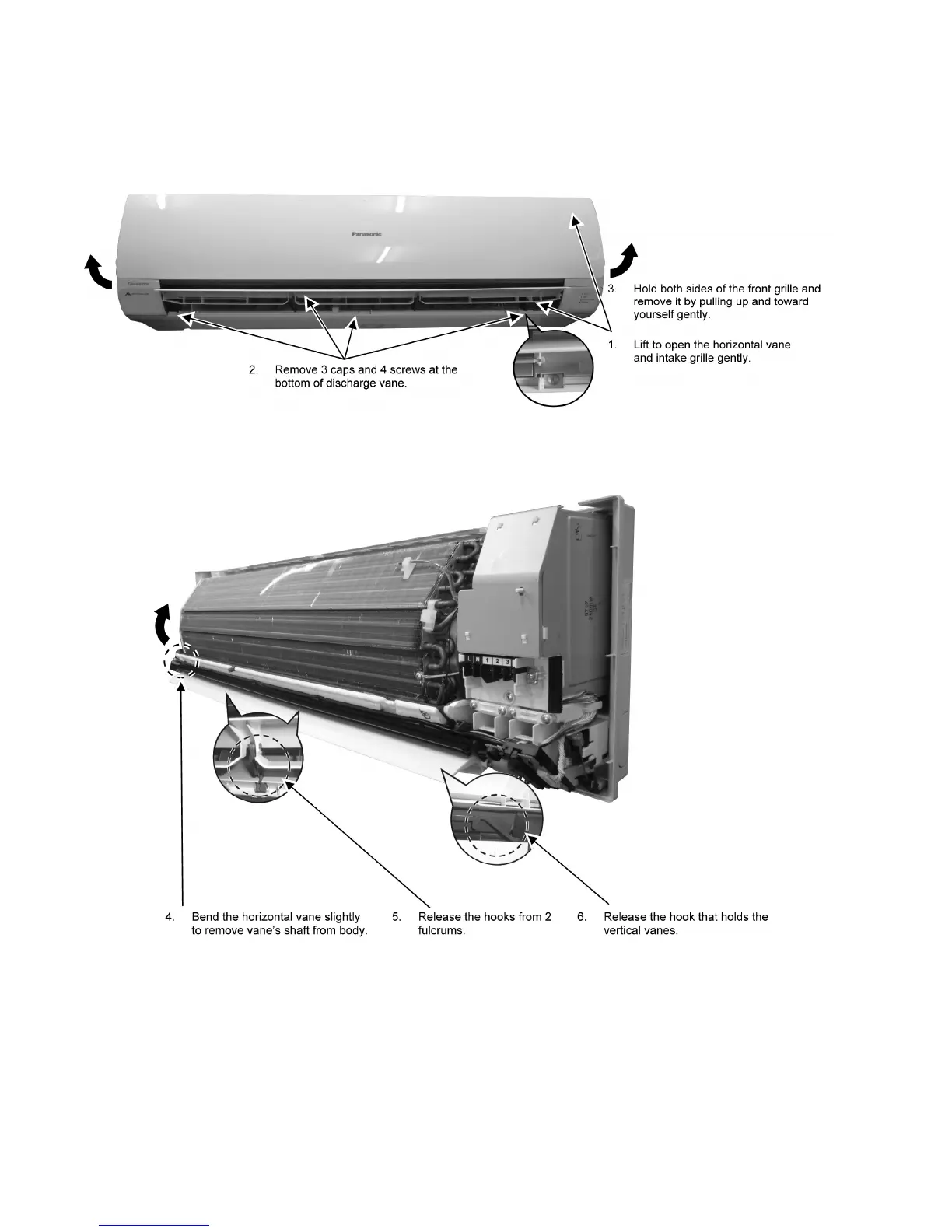

15.2.1.1 To remove front grille
Figure 11
15.2.1.2 To remove horizontal vane
Figure 12
