63
8 Secure firmly the power supply cord and connecting cable onto the control board with the holder.
Do not overtighten holder screw, as this may damage the holder.
9 Close grille door by tighten with screw and close the front panel.
Note:
Isolating Devices (Disconnecting means) should have minimum 3.0 mm contact gap.

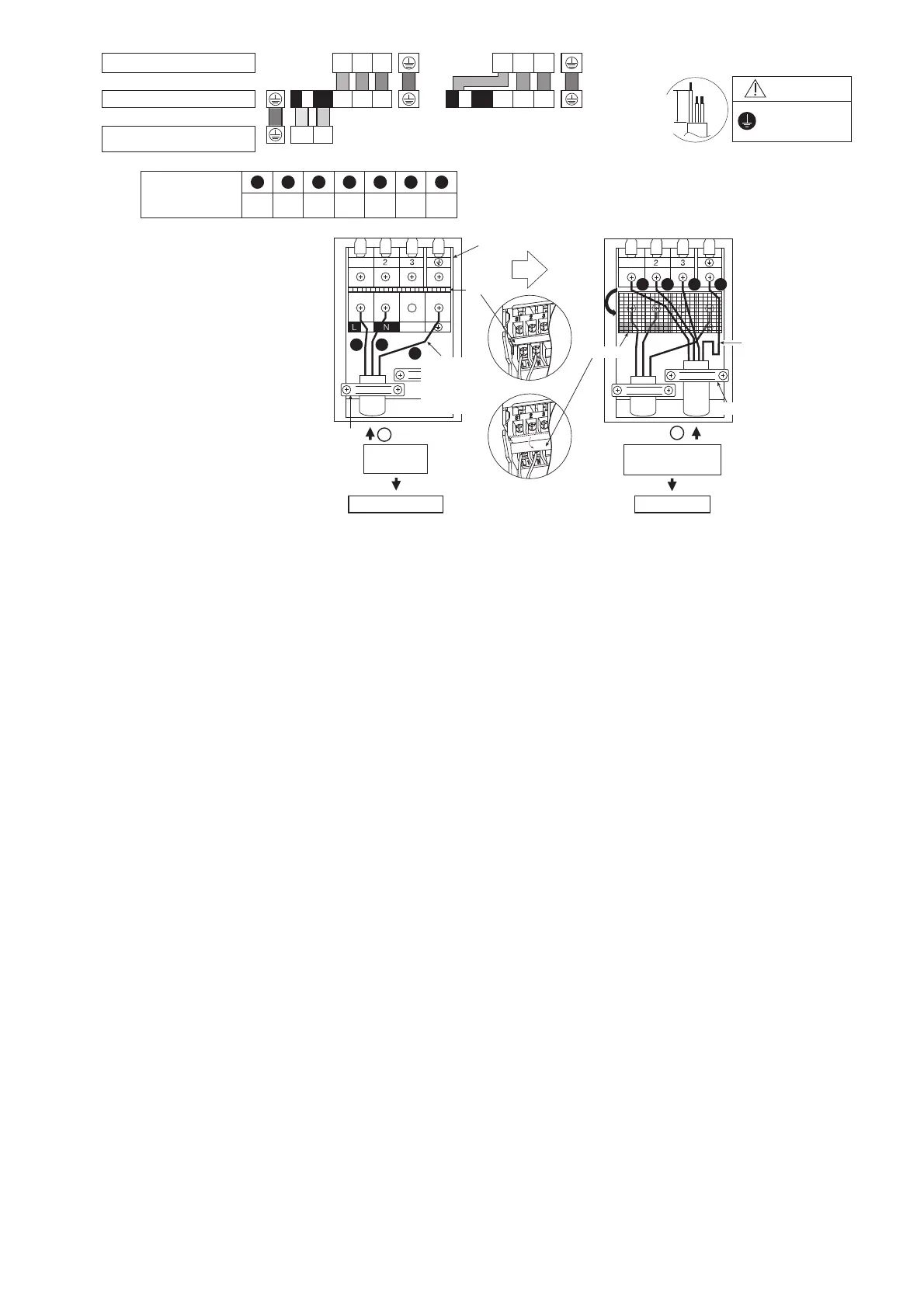

Ensure the colour of wires of outdoor unit and the terminal Nos. are the same to the indoor’s respectively.
Earth wire shall be Yellow/Green (Y/G) in colour and longer than other AC wires as shown in the figure for the
electrical safety in case of the slipping out of the cord from the anchorage.
WARNING
This equipment
must be properly
earthed.
Recommended
length (mm)
refer table below
Terminals on the outdoor unit
S1 2 3
123
Colour of wires (connection cable)
Terminals on the indoor unit
L 1 N S1 2 3
OR L 1
N S1 2 3
(Power supply cord)
*
Connection for multi inverter
model (Outdoor power
supply)
Terminals on the isolating devices
(Disconnecting means)
(L) (N)
Recommended
length (mm)
a b c d e
f
g
30 30 60 45 40 35 55
a
b
c
4
de
f
g
6
S1
1
S1
1
Isolating Devices
Outdoor Unit
Terminal Board
Panel
Panel
Flip the panel down
until ‘click’ sound before
connect indoor and
outdoor connection cable
Holder
Holder
Flip the
panel down
Earth Wire
longer than
others AC
wires for
safety reason
Right escapement
Left escapement
Power
supply cord
Indoor & outdoor
connection cable
Earth Wire
longer than
others AC
wires for
safety reason
To Next Page
