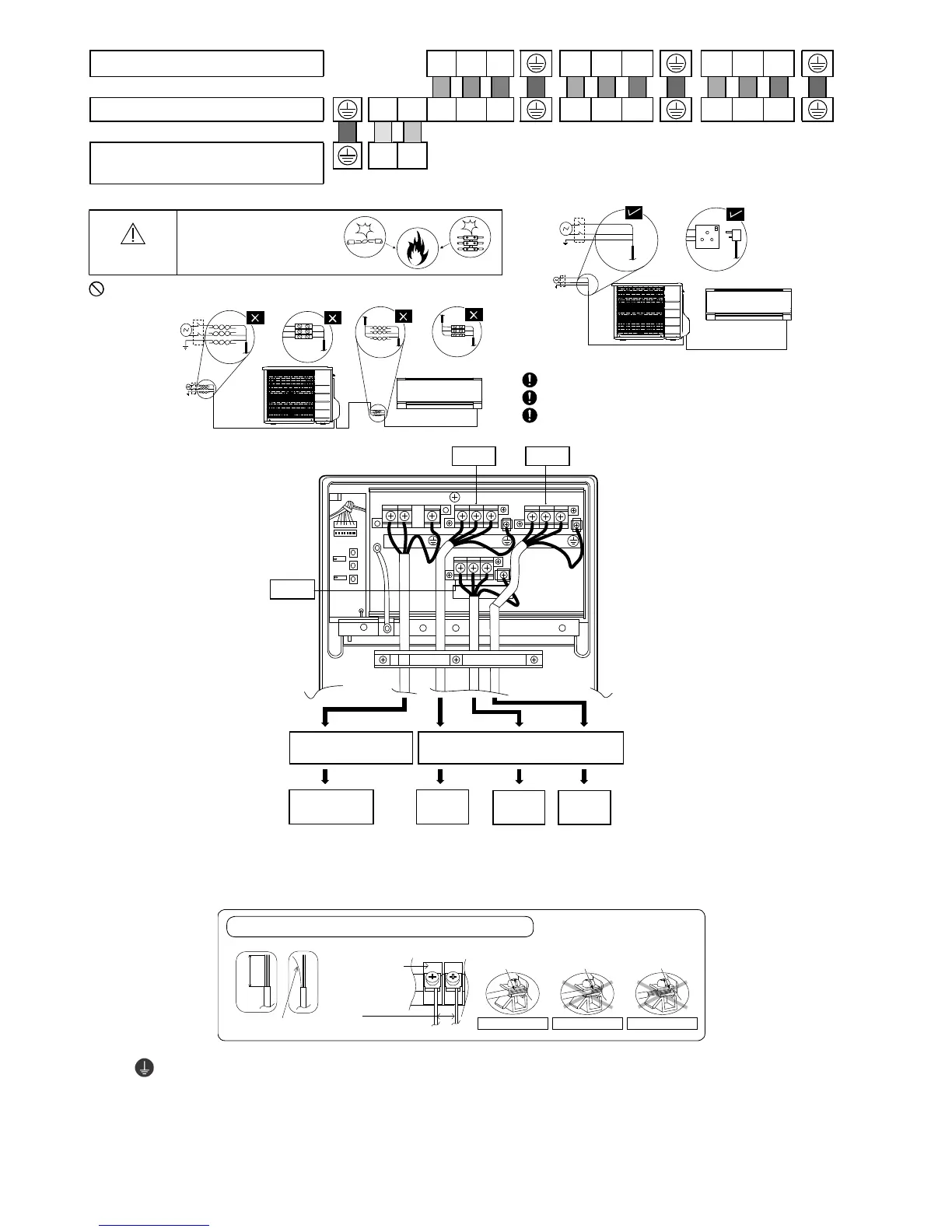

Colour of wires (Connecting cable)
Terminals on the outdoor unit
Terminals on the indoor unit
LN123 1 23 1 23
(Power supply cord)
(UNIT A) (UNIT B) (UNIT C)
Terminals on the isolating devices
(Disconnecting means)
(L) (N)
WARNING
RISK OF FIRE
JOINING OF WIRES MAY CAUSE
OVERHEAT AND FIRE.
Do not joint wires
OROR
Use complete wire without joining.
Use approved socket and plug with earth pin.
Wire connection in this area must follow to national wiring rules.
OR
P
Indoor & outdoor connection cable
Unit A Unit B
Unit C
Power Supply Cord
Isolating
Devices
Indoor
Unit A
Indoor
Unit C
Indoor
Unit B
5. For wire stripping and connection requirement, refer to the diagram below.
6. Secure the power supply cord and connecting cables onto the control board with the holder.
7. Attach the control board cover back to the original position with screw.
Wire stripping
(gap between
wires)
No loose strand when
inserted
Indoor/outdoor
connecting
terminal board
10 ± 1 mm
Conductor fully
inserted
Conductor over
inserted
Conductor not
fully inserted
ACCEPT PROHIBITED PROHIBITED
WIRE STRIPPING AND CONNECTING REQUIREMENT
5mm
or more
This equipment must be properly earthed.
Note: Isolating Devices (Disconnecting means) should have minimum 3.0 mm contact gap.
Earth wire shall be Yellow/Green (Y/G) in colour and longer than other AC wires for safety reason.
To Next Page
