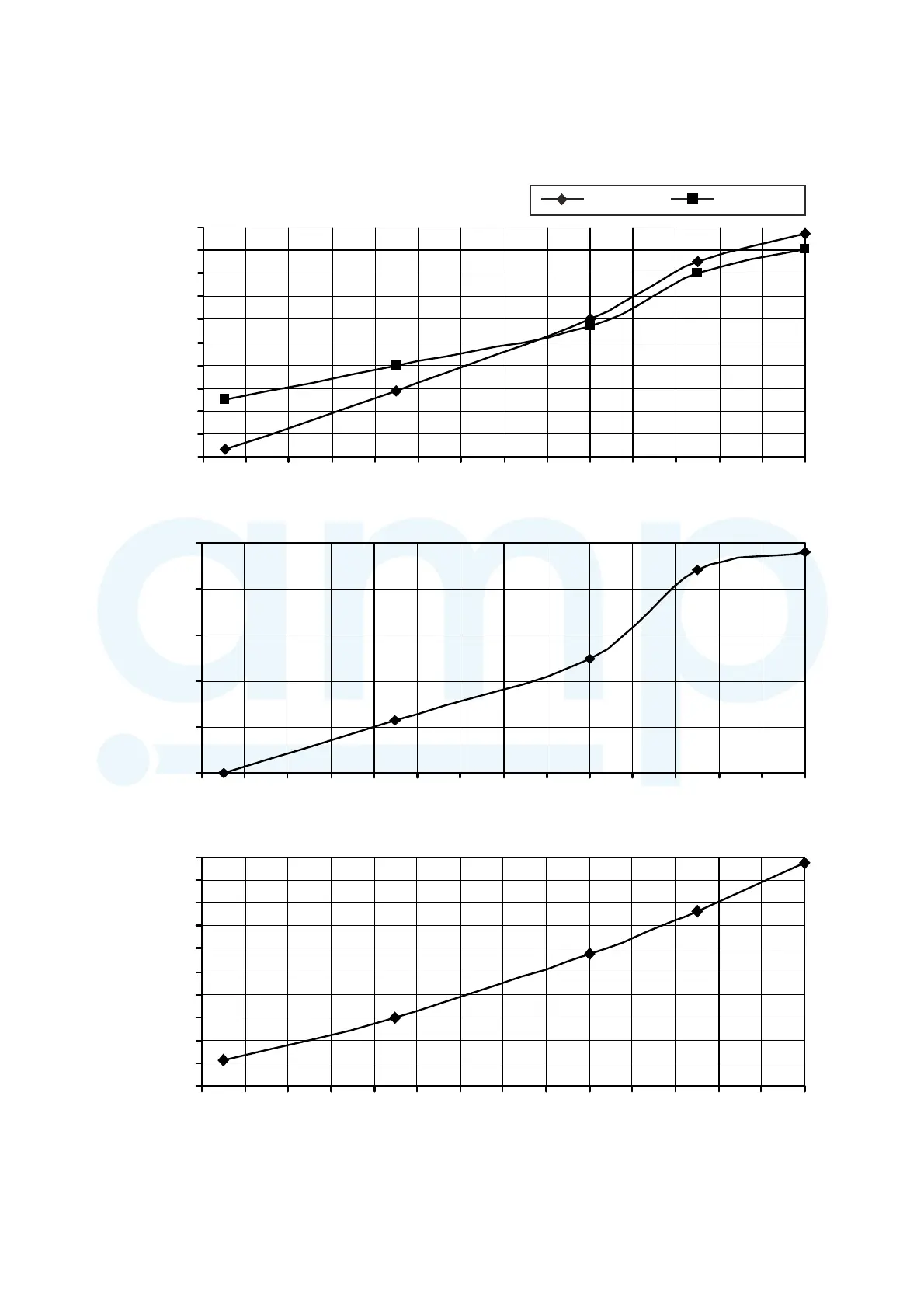

 Heating Characteristic
[Condition] Room temperature: 20°C (DBT), 12°C (WBT)
Operation condition: High fan speed
Piping length: 5.0 m
Voltage: 230V, 50Hz
B) Indoor unit capacity: Heating (2.5 + 4.2), CS-Z25TKEW + CS-Z42TKEW
Outdoor Air Temperature (°C)
Indoor Discharge Air
Temperature (°C)
Z25TKEW Z42TKEW
-16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12
28.000
29.400
30.800
32.200
33.600
35.000
36.400
37.800
39.200
40.600
42.000
Outdoor Air Temperature (°C)
Current
(A)
-16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12
8.400
8.920
9.440
9.960
10.480
11.000
Outdoor Air Temperature (°C)
Gas Side Piping
Pressure (MPa)
-16-14-12-10-8-6-4-2024681012
2.200
2.280
2.360
2.440
2.520
2.600
2.680
2.760
2.840
2.920
3.000
