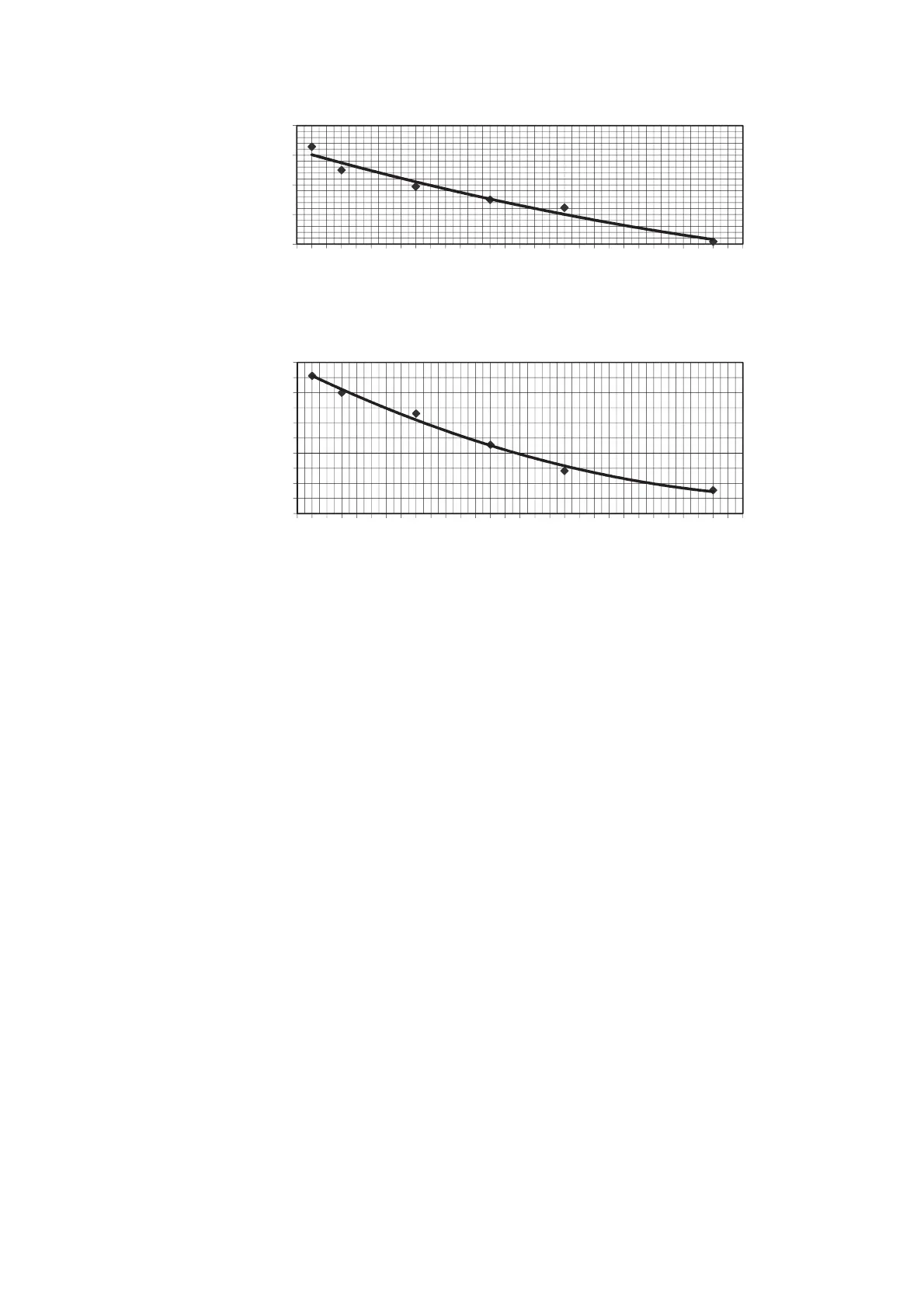

21.3 Piping Length Correction Factor
The characteristic of the unit has to be corrected in accordance with the piping length.
Cooling Capacity
Correction Factor
Heating Capacity
Correction Factor
Pipe Length (m)
Pipe Length (m)
0.95
0.97
0.99
1.01
1.03
0.96
0.97
0.97
0.98
0.98
0.99
0.99
1.00
1.00
1.01
1.01
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
Note: The graphs show the factor after added right amount of additional refrigerant.
