WARNING
17. Disassembly and Assembly Instructions
High voltages are generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding
with repair work. Failure to heed this caution may result in electric shocks.
17.1 Outdoor Unit Removal Procedure (CU-4E23QBR)
Caution! When handling electronic controller, be careful of electrostatic discharge.

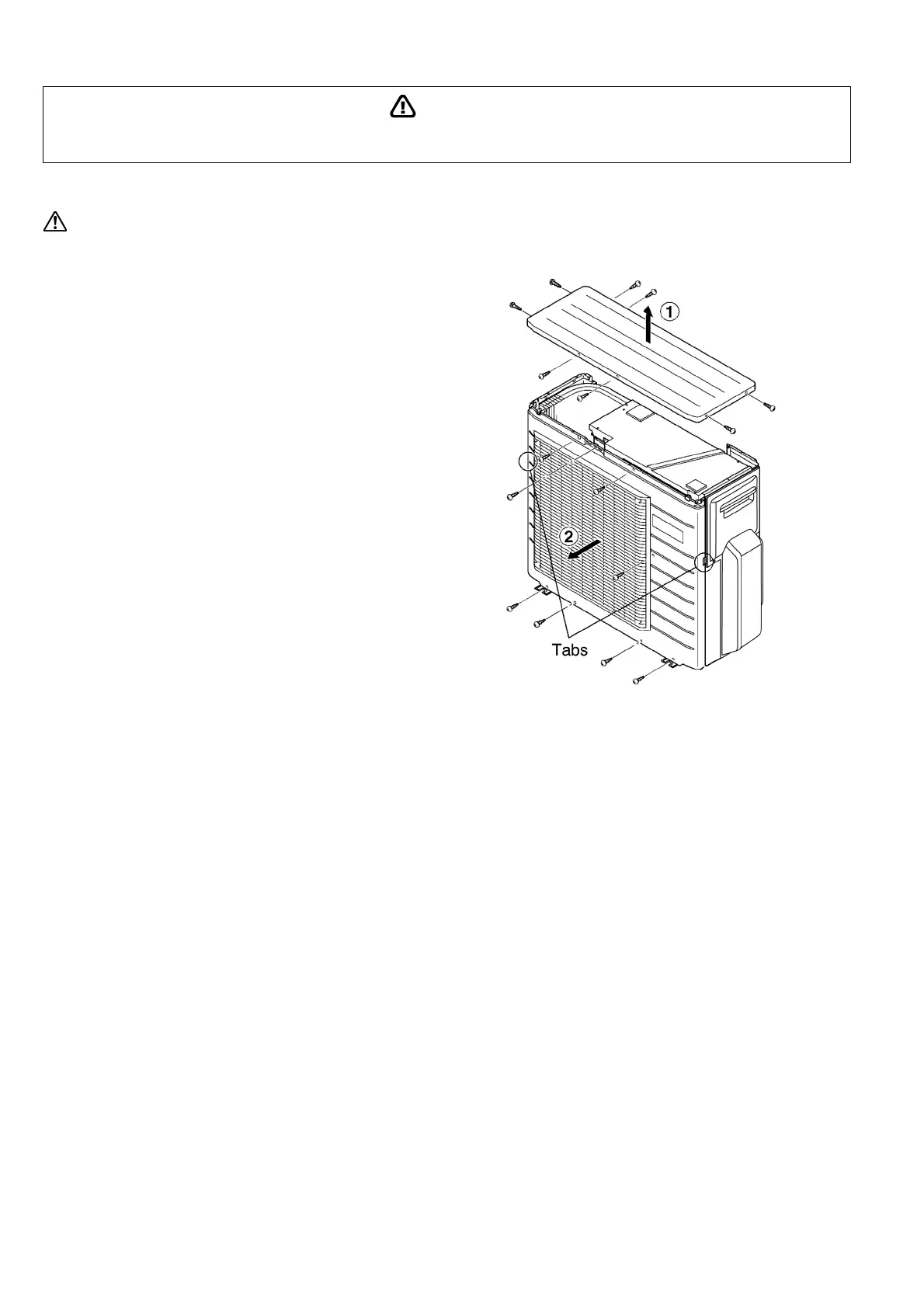

17.1.1 Removing the Cabinet Top Plate and Cabinet Front Plate
1. Remove the cabinet top plate (remove the 8
screws).
2. Remove the 8 screws (1 on the center, 3 at
the top and 4 at the bottom) securing the
cabinet front plate, release the 2 hooks (1
each at the left and right), and pull the cabinet
front plate toward front side.
