Installation Information

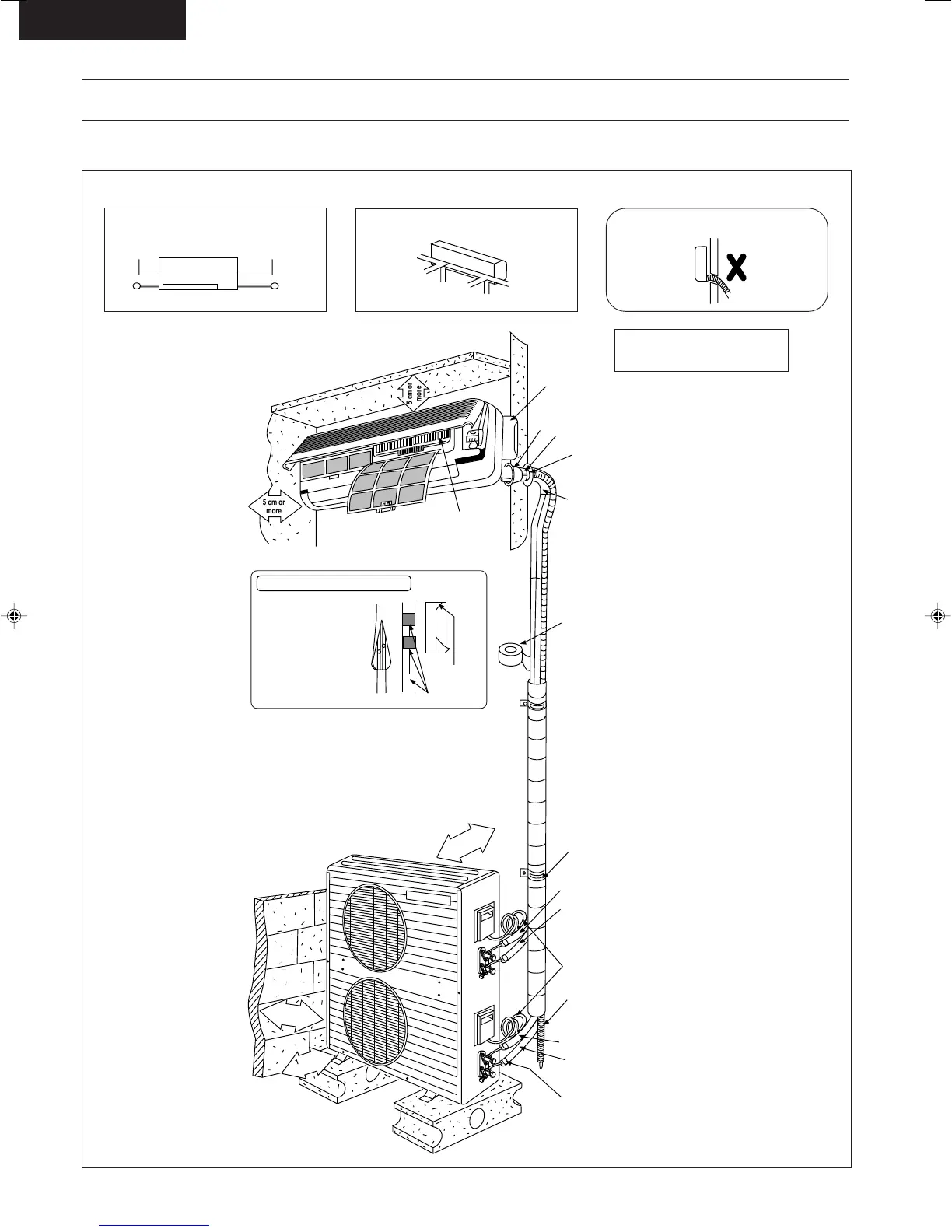

Indoor / Outdoor unit installation diagram
Length of power supply cord Piping direction Attention not to bend up drain hose
<
<
<
<
about 1.1 m
about 1.8 m
Right
rear
Right bottom
Left
rear
Left bottom
Left
(Front side)
Right
Installation parts you must
purchase (*)
Installation plate 1
Sleeve (*)
Putty, (Gum Type Sealer) (*)
Bend the pipe as closely on the
wall as possible, but be careful
that it doesn’t break.
Vinyl tape (Wide) (*)
• Apply after carrying out a
drainage test.
• To carry out the drainage
test, remove into the heat
exchanger. To carry out the
drainage test, remove into
the heat exchanger.
Saddle (*)
Vinyl tape (*)
(Narrow)
• This illustration is for explanation purposes only.
The indoor unit will actually face a different way.
• Carry out insallation
after checking for gas
leaks.
• After securing with
three of the vinyl
tape 8, wrap with
vinyl tape 9.
Vinyl tape
9
Vinyl tape 8
Air purifying filter 5
(Left and right are identical)
Bushing-Sleeve (*)
5 cm or
more
5 cm or
more
100 cm
or more
10 cm
or more
10 cm
or more
Insulation of piping connection
Additional drain hose (*)
Connecting cable
(5-CORE WIRE/1.5 mm
2
)
Locally approved cable.
Gas side piping (*)
3/8" (MA70KE, MA90KE)
1/2" (MA120KE)
1/4" Liquid side piping (*)
Gas side piping (*)
3/8" (MA70KE, MA90KE)
1/2" (MA120KE)
1/4" Liquid side piping (*)
