1. Receiver
Receives the signal sent from the
remote controller.
2. Emergency operation button
See page 12.
Indicator lamps
When an error occurs, one of the lamps
ashes.Whenanindicatorlampis
ashing,referto“Troubleshooting”.
3. OPERATION lamp
Lights up when the unit is
operating.
4. TIMER lamp
Lights up when the timer is set.
5. STANDBY lamp
The lamp in the HEAT mode lights
up at the following times: during
the startup, during the thermostat
operation, and during the
defrosting.
6. FILTER lamp
This lamp is for notifying you
whenthelterneedstobe
cleaned.

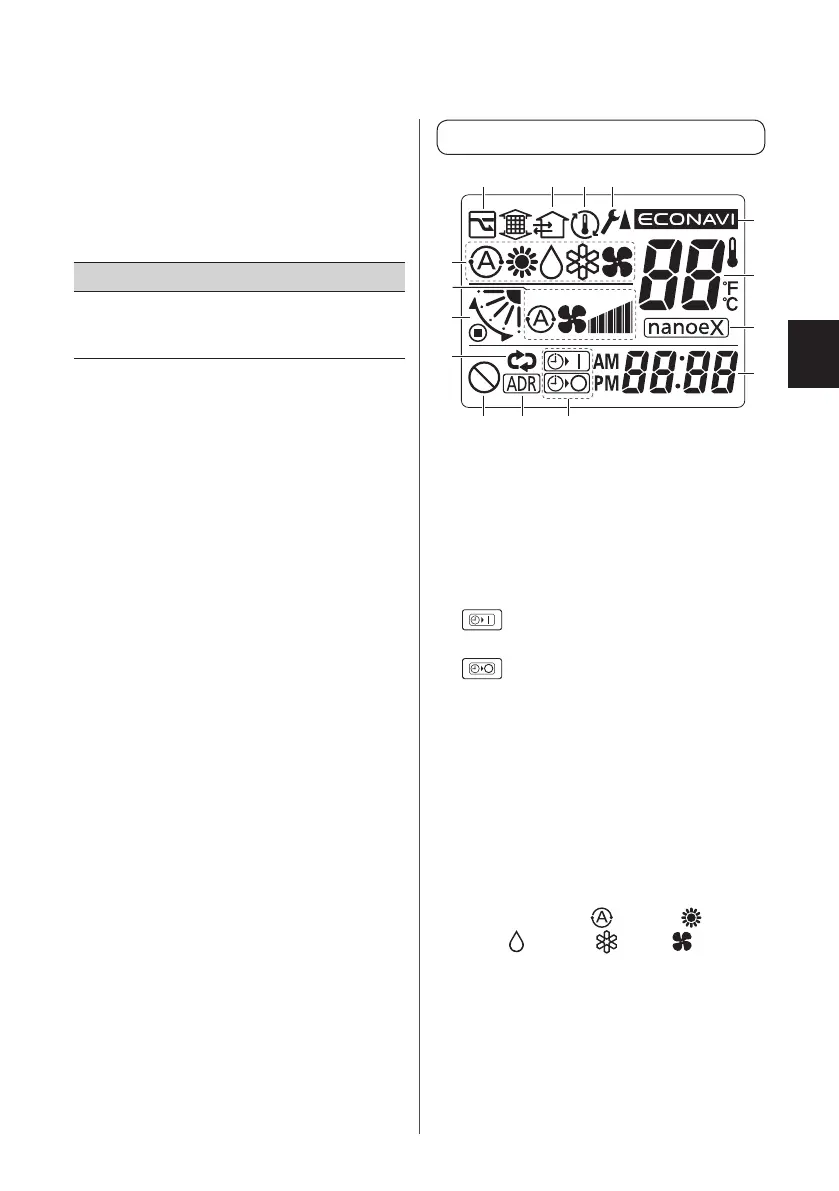

Screen display
1
2
3
6
8
9
10
11
57
12
4
13 14 15
1 Appears when ECONAVI is being
set to ON.
2 Indicates the set temperature.
3 Appears when nanoe™ X is being
set to ON.
4 Displays the present time.
5 Timer program indication
: The indoor unit starts
operation at the programmed time.
: The indoor unit stops
operation at the programmed time.
6 Indicates the remote controller
addresses are set.
7 Appears when the function is not
available.
8 The ON timer or the OFF timer
will operate repeatedly every day.
9 Indicatestheapposition.
10 Indicates the fan speed.
11 Displays the selected operation
mode. (AUTO /HEAT /
DRY /COOL /FAN )
12 Energy saving operation is in
process.
13 Appears when a fan available in the
market is installed and is operating.
14 “TemperatureAutomaticReturn”
is set.
15 Appears when the setting screen
is displayed.
