16
RQT8415

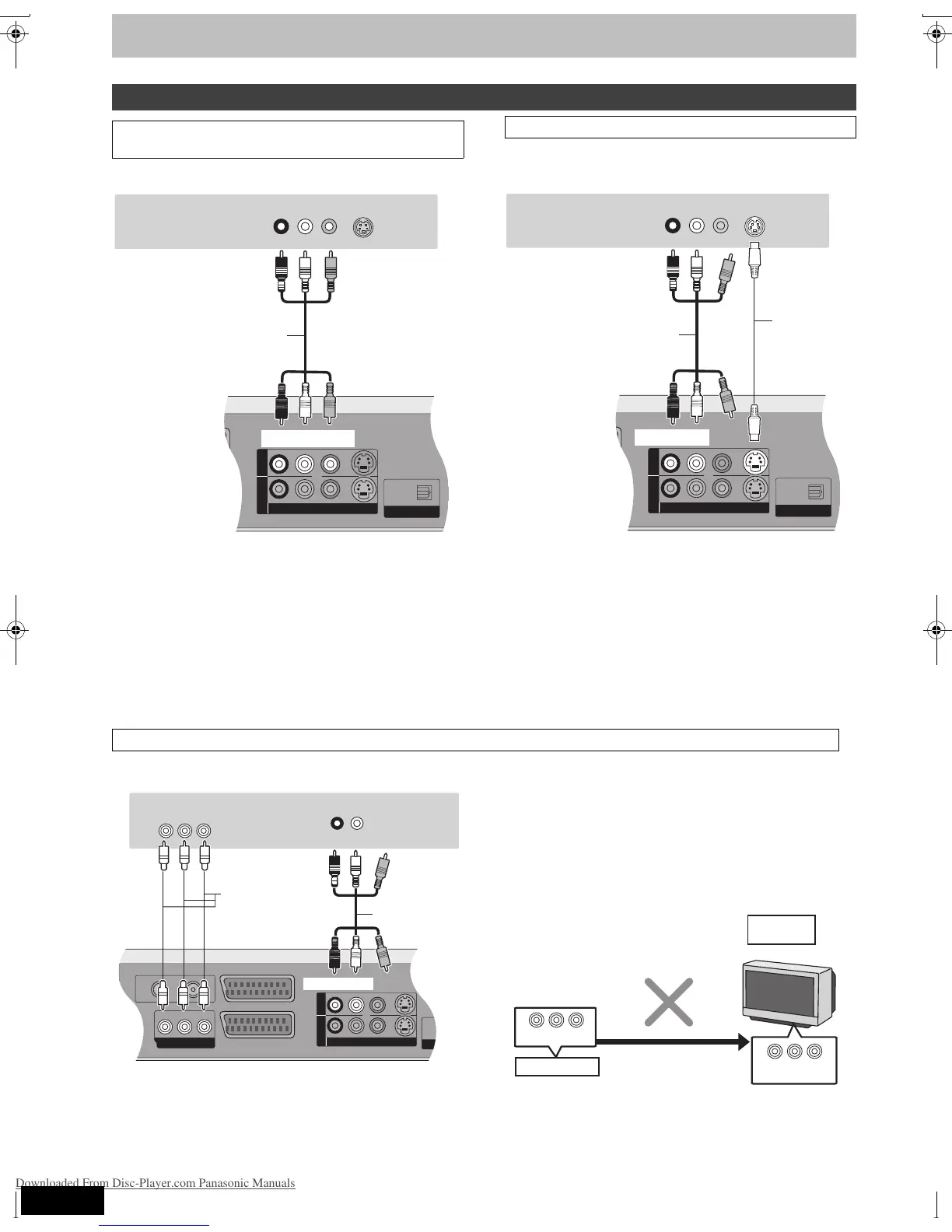

STEP 1 Connection
The S VIDEO OUT terminal achieves a more vivid picture than the
VIDEO OUT terminal. (Actual results depend on the television.)
COMPONENT VIDEO terminals can be used for either interlace or
progressive output (➡ 81) and provide a purer picture than the S
VIDEO OUT terminal.
≥Connect to terminals of the same colour.
If you have a regular television (CRT: cathode ray tube)
Use component output with progressive “Off” (Factory setting ➡ 68),
even if it is progressive compatible, because progressive output can
cause some flickering. This is the same for multi system televisions
using PAL mode.
For progressive output (➡ 22)
Other connections
Connecting a television with AUDIO/VIDEO
terminals
AUDIO IN
R L
PR
PB
Y
COMPONENT
VIDEO IN
Red White
Red White
Video cable
Audio/Video
cable
(included)
Television’s rear panel
This unit’s rear panel
COMPONENT VIDEO OUT
COMPONENT
VIDEO IN
CRT
This unit
Progressive output
EH55.book Page 16 Thursday, January 19, 2006 1:58 PM
