17
RQT8415
∫ Connecting an amplifier with a digital input
terminal
≥To enjoy multi-channel surround sound DVD-Video, connect an
amplifier with Dolby Digital, DTS and MPEG decoders.
[Required]setting]
“Digital Audio Output” in the Setup menu (➡ 67)
≥Before purchasing an optical digital audio cable (not included),
check the terminal shape of the connected equipment.
≥You cannot use DTS Digital Surround decoders not suited to DVD.
≥Even if using this connection, output will be only 2 channels when
playing DVD-Audio.
∫ Connecting a stereo amplifier

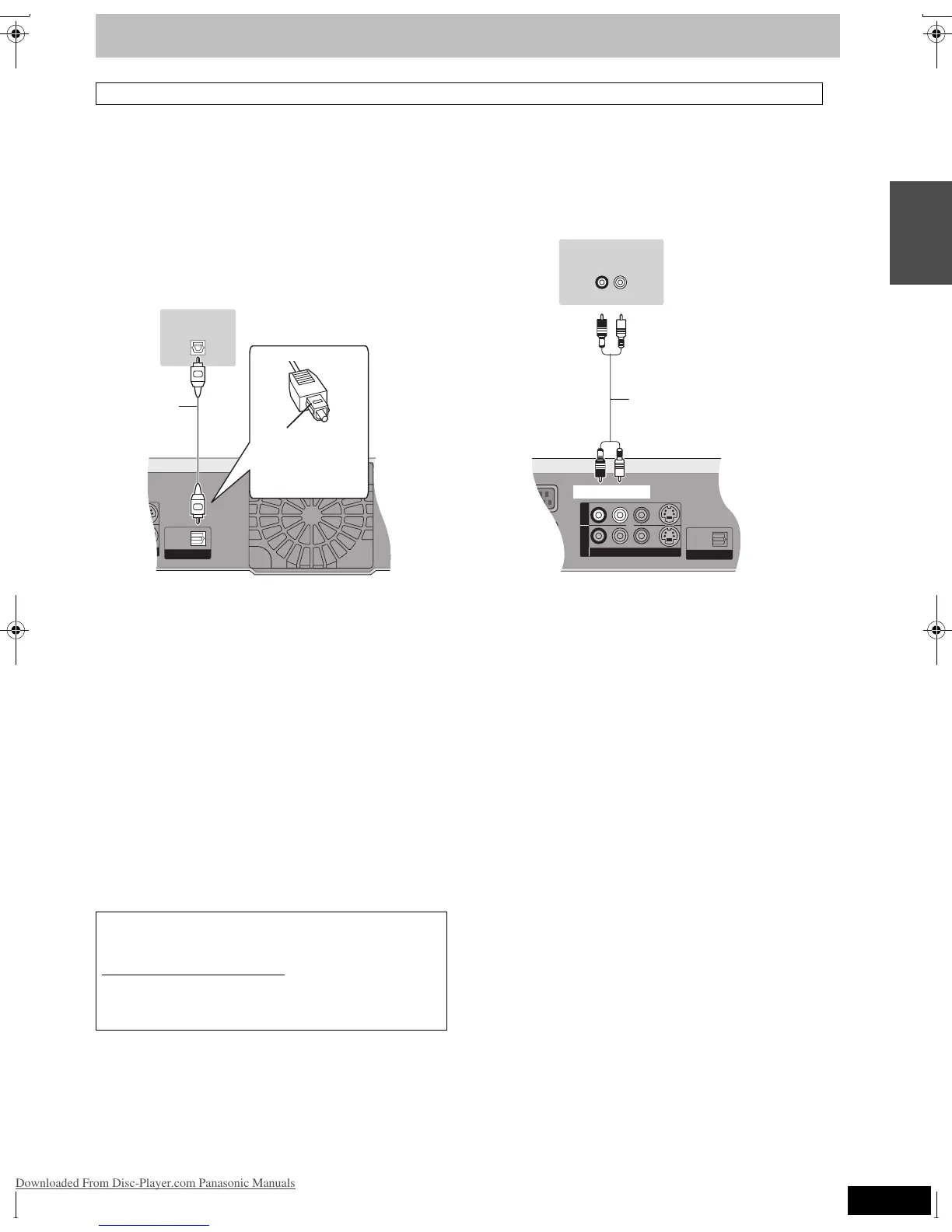

Connecting an amplifier or system component
OPTICALOPTICAL
DIGITAL AUDIO OUTDIGITAL AUDIO OUT
(PCM/BITSTREAM)(PCM/BITSTREAM)
IDEOS VIDEO
OPTICAL IN
Optical digital
audio cable
Do not bend
sharply when
connecting.
This unit’s rear panel
Insert fully, with this
side facing up.
Amplifier’s rear panel
OPTICALOPTICAL
DIGITAL AUDIO OUTDIGITAL AUDIO OUT
(PCM/BITSTREAM)(PCM/BITSTREAM)
S VIDEOS VIDEO
VIDEOVIDEO
R-AUDIO-LR-AUDIO-L
AV4 INAV4 IN
OUTOUT
/
EXT
)
AUDIO IN
R L
Red White
Red White
Audio cable
This unit’s rear panel
Amplifier’s rear panel
When the unit is not to be used for a long time
To save power, unplug it from the household mains socket. This
unit consumes a small amount of power, even when it is turned off
[approx. 2 W (Power Save mode)]
When “Power Save” is set to “On”, the “Quick Start” function does
not work.
STEP 1 Connection
EH55.book Page 17 Thursday, January 19, 2006 1:58 PM
